Desktop Carbon Dioxide Monitor CO2 Detector with Data Logger Temperature and Humidity

Product Description

Product Description

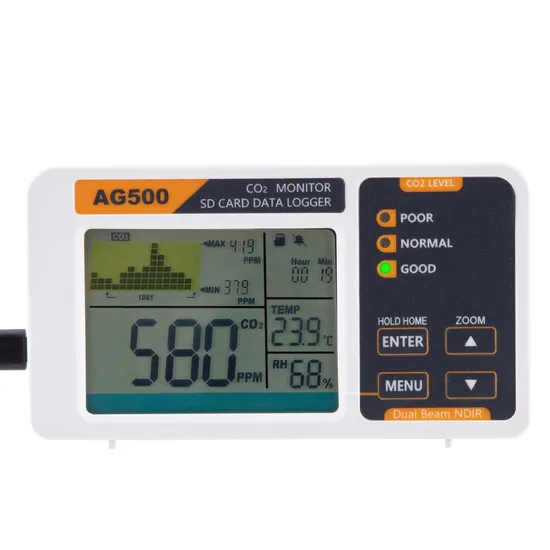

AK 500 is a 4 in 1 CO2 monitor for CO2 level, ambient TEMP, RH and real time clock with data logger and memory SD card.
With professional Dual Beam NDIR technology for accurate reading, It displays the current and history emotional status of CO2 records up to 1 year, which can greatly improve your understanding of your grow room's atmospheric conditions 24/7/365.
Besides, it is also perfect for monitor air quality inside buildings like bedrooms, offices, schools, and shopping mall and HVAC systems.
Basic Info:

Model NO.	AG500	Maximum SD Card	32GB
Trademark	OEM/ODM	Power Source	USB Type-Micro
Sensor Type	Dual-Beam NDIR	Origin	China KunShan
CO2 Range	0~5000ppm	HS Code	9027100090
Temperature Range	0~50ºC(32°F to 122°F)	Production Capacity	80000 Pieces/Year
RH Range	0-100%	Transport Package	Carton
Battery	External	Package Type	1 pcs/Color Box
Single Package Size	120*66*33mm (4.7*2.6*1.3inch)	Weight	103g ( 3.6oz) Device only

Feature:
Ø Dual Beam NDIR (Non-Dispersive-Infrared) technology is used to improve the long term stability.
Ø CO2/Temperature/RH Monitor; Tracer
Ø Chart with variable time Zoom Levels
Ø Build-In Plant Types Directory
Ø 3-color LED (green / yellow / red) gradually changes color with CO2 concentration.
Ø Foolproof "Hold Home" function.
Ø CRR, CO2 Replenish Reminder.
Ø SD Card Data Record (512M can record 2years data, Maximum support 32GB).
Operating Instructions
LCD Display:
Trend Chart:
The trend chart (1) displays the past readings for CO2 and temperture and RH parameters.
That can be toggled by using DOWN key: CO2, TEMP, RH. As show below:
Trend Chart Zoom:
Below is a table that show the available Zoom Levels for all parameters CO2/Temp/RH, as well as the duration of each division for corresponding Zoom Levels:
SD Card For Logger:
The device will record data logger by SD card while it existed. Its can record Date, Time, CO2, Tempereture, RH, user can check and download logger by SD card reader. User can setting logger interval time by enter 'ADV' mode. The interval time can be set as 5/30/60/300/600 second.
CRR Function:
Predicts the remaining CO2 supply and reminds the user to add or replace the CO2 generator. For example, hydrocarbon fuel, fermentation (sugar + yeast), etc.
Specifications
Typical test conditions, unless otherwise specified: Ambient Temp =23+/-3°C, RH=50%-70%, Altitude=0~100 meter

Measurement	Specification
Operating Temperature	32°F to 122°F (0°C to 50°C)
Storage Temperature	-4°F to 140°F (-20°C to 60°C)
Operating & Storage RH	0-95%, non-condensing
CO2 Measurement
Accuracy at 0~3000ppm	±50ppm or ±5% of reading, whichever is greater
Accuracy over 3000ppm	±7%
Repeatability	20ppm at 400ppm (standard dev. of 10 readings in 1 minute)
Measurement Range	0-5000ppm
Display Resolution	1ppm (0-1000); 5ppm (1000-2000); 10ppm (>2000)
Temp Dependence	±0.2% of reading per °C or ±2ppm per °C, whichever is greater, referenced to 25°C
Pressure Dependence	0.13% of reading per mmHg (corrected by user's altitude input)
Response Time	<2min for 63% of step change or <4.6min for 90% step change
Warm-up Time	<30 sec
Temp Measurement
Operating Temperature	32°F to 122°F (0°C -50°C)
Display Resolution	0.1°F (0.1°C)
Accuracy	±1°F (±0.5°C)
Response Time	<20min (63%)
RH Measurement
Range	5-95%
Accuracy	±5%
Resolution	1% on Main Reading, 0.1% on Max Min Reading
Power Requirements	160mA Peak, 15mA average at 5.0V
Dimension	120*66*33mm (4.7*2.6*1.3inch)
Weight	103g ( 3.6oz) Device only, AC Adapter not included

Application
About Us
KUNSHAN AST Optoelectronics CO., LTD designs, develops and manufactures high quality and affordable electronic device, especially in the field of NDIR gas measurement, our team has 15 years of development experience.
We are ISO 9001 certified ODM/OEM Company, we cooperate with many world-renowned brand companies, and our products are sold to more than 20 countries around the world, mainly the U.S.A, Europe and Japan. Our engineers design our products while keeping the following goals in mind: to ensure the highest level of quality, accuracy, our design team strives to improve the competitive edge of our products to help you develop a broader market.
Our team is committed to the research and development of infrared measurement. Especially in the field of NDIR gas measurement, our team has 15 years of development experience, and professional engineering development experience allows us to continue to receive high praise from customers. We continue to invest and improve in research and development, automatic calibration equipment, and automatic testing equipment, so that we can better serve and meet the expectations of our global partners. Mutual benefit and win-win with partners.

---
