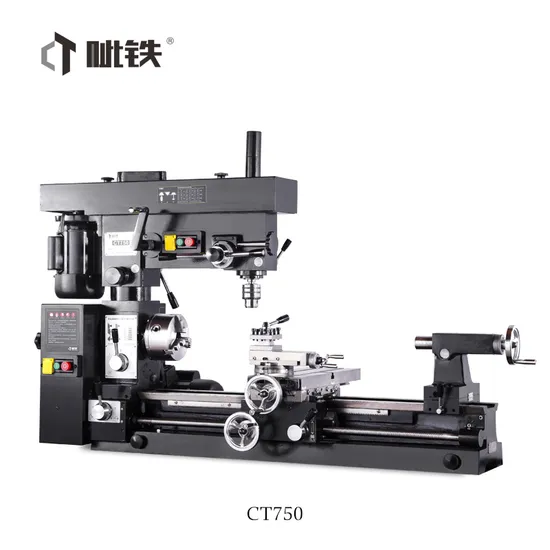

| Turning-parameters | |
| Max. swing over bed | 300mm |
| Max. swing over tool post | 140mm |
| Max.machining length | 750mm |
| Spindle taper | MT4 |
| Spindle bore | 26mm |
| Max. travel of tail-stock sleeve | 50mm |
| Taper of tail-stock | MT3 |
| Middle carriage travel | 200mm |
| Small carriage travel | 80mm |
| Metric thread/Grade | 0.5~3mm/14 |
| Inch thread/Grade | 11~40T.P,I/20 |
| Transverse feed/Grade | 0.05~0.5mm/20 |
| Longitudinal feed/Grade | 0.05~0.5mm/20 |
| Spindle speed range/Grade | 160~1600r/min(6) |
| Motor power | 750w |
| Drilling and milling-parameters | |
| Max.Drilling capacity | 20mm |
| Table size | 425x150mm |
| T-slots size | 12mm |
| Spindle taper | MT3 |
| Spindle travel | 80mm |
| Distance from spindle to column guide rail | 310mm |
| Distance from spindle end to table surface | 240~320mm |
| Spindle speeds | 315~2000r/min(9) |
| Rotation angle of drilling and milling box head around the column | 360° |
| Drilling and milling head box vertical lifting stroke | 80mm |
| Motor power | 550w |
| other | |
| Net weight/gross weight | 280KG/300KG |
| Overall dimensions | 1450x570x980mm |
| Package Size | 1550x650x1100mm |
