Heavy-Duty CNC Drilling Machine for Precision Steel Plate Processing with Advanced Drilling Equipment Efficient Steel Plate Fabrication and High-Performance

Product Description

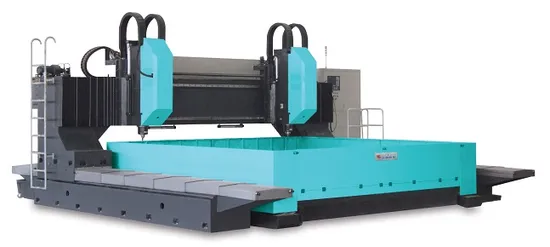

ubeCNC Plate Drilling and Milling Machine for Steel plate and tubesheet P M D Series
heet PHD Series
This machine is suitable for drilling plate & pipe,baffle and flange in the petrochemical,boiler,refrigeration,wind power flange and other industries.It can also be used in the drilling of connecting plate in the steel structure such as building,bridge,tower and so on.
1.The machine mainly consists of the bed and the longitudinal slide table,gantry and the horizontal slide table,the vertical sliding pillow drilling power box,the work table,the electric control system,the hydraulic system,the cooling system,the chip system,the centralized lubrication system and so on.
2.The machine adopts movable gantry and fixed worktable,save the floor area.
3.The machine bed and worktable are independent,which improves the stability of the equipment and effectively reduces the vibration generated during high-speed drilling.
4.The longitudinal and lateral movements of machine tools are guided by precision roller linear guide,which greatly increases the rigidity of the equipment.
5.The spindle motor uses a special servo motor to drive the spindle through the synchronous belt, stepless speed regulation, low speed torque,can withstand heavy cutting load,and can be suitable for high-speed machining of hard alloy tools.
6.The main axis of drilling is Taiwan precision spindle (internal cooling),the main axis cone hole BT50,with a butterfly spring automatic broaching mechanism,through the rod to install the drill or milling cutter,the hydraulic cylinder loose knife,the replacement tool is very convenient.
Technical parameters:

Model		PMD3030	PMD3030/2	PMD4040/2	PMD5050/2
Processing size	L xW	3000x3000mm		4000x4000mm	5000x5000mm
	Max. thick.	300mm
Ram type drilling and milling powered head	Quan. of spindle	1	2	2	2
	Spindle taper	BT50(inner cooling)
	Speed of spindle	120-3200r/min
	Stroke of spindle	500mm
	Max. drilling dia.	¢50mm twist drill /¢40mm hard alloy
	Max. tapping dia.	M32mm
	Power of motor of spindle	18.5 KW /22 KW /30 KW /37KW
	Spindle torque	180/240/360 n≤600r/min
	Distance under the shaft	280-780mm
Gantry longitudinal movement (X-axis)	Max. stroke	3000mm		4000mm	5000mm
	X-axis moving speed	16m/min
	Power of X-axis servo motor	2x3KW
Power head lateral movement(Y-axis)	Max. stroke	3000mm		4000mm	5000mm
	Y-axis moving speed	16 m/min
	Power of Y-axis servo motor	3KW	2x3KW	2x3KW	2x3KW
Vertical ram feed motion(Z-axis)	Max. stroke	500mm
	Z-axis feeding speed	10 m/min
	Power of Z-axis servo motor	3KW	2x3KW	2x3KW	2x3KW
Precision of position	X.Y axis	≤0.1mm/
Precision of repeating position	X.Y axis	≤0.08mm
Chip removal and cooling method	Chip removal	Flat chain
	Quan. of chip removal	2pcs
	Speed of chip removal	1m/min
	Power of motor of chip removal	2x0.75kw
	Power of motor for inner cooling pump	3kw
	Power of motor for outer cooling pump	1kw
Auto. lubrication	Lubrication pressure	2MPa
	Oil of lubrication point	0.1ml
	Lubrication cycle	6-10min
Electrical system	CNC control	Siemens808D	Siemens 828D	Siemens 828D	Siemens 828D
Dimension	L×W×H	7x6x3.5		8x7x3.5	10x8x3.5
Weight of machine		32	36	48	60
