US$100,000.00-350,000.00
|
1 Set
(MOQ)
|
Basic Info.
Product Type
Granulating Extruder
Feeding Mode
Multiple Feed
Assembly Structure
Integral Type Extruder
Engagement System
Intermeshing
Screw Channel Structure
Deep Screw
Computerized
Computerized
Application
Housing Waterproof, Architecture Engineering
City of Delivery
Qingdao of China
Transport Package
Wooden Pallets and Cases and Films
Specification
400-800kg/H
Trademark
Leader Machinery
Product Description
PART 1: APPLICATIONS:
HDPE geomembrane,also called extra-width waterproof sheets,widely used for:
1) Waterproofing usage in industrial &civil buildings,including the green roof,flat roof ,and the sloping roof.
2)Underground wateproof:reservoir,dam,pool,swimming pool.
3)Waterproof usage in tunnel drainage,grain depot,artificial engineering,landfill,artifical lake,foundation moisture-proof,
Specifications:sheet width 1000-8000mm,thickness 0.5-3mm,single layer or multi-layer co-extrusion.Pass GM13 standard.
HDPE Geocell is a new type of high-strength geosynthetics,which is popular in domestic and abroad.it is a kiind of three-dimensional network structure shaped by high-strength HDPE sheeets through ultrasonic welding of high strength.Currently,it is being widely used in construction,such as highway,railway,bridge,dyke,etc.

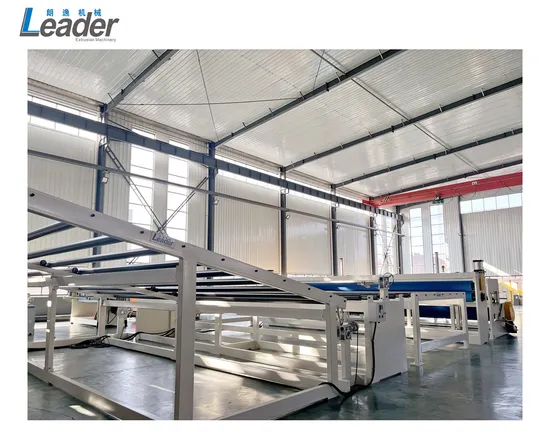

PART 2: THIS LINE CONSISTS OF:
| Configuration of this complete line |
| 1.High speed mixer heating hopper 1500kg/h | 1 set 2000*3000*2000mm |
| 2. LSJ-200/33single screw extruder for main layer | 1set 7000*1600*3200mm |
| 3. Hydraulic exchanging units | 1 set |
| 4. melting gear pump | 1 sets |
| 5.T-type die head (8400mm width) with width adjusting blocks | 1 set 8500*600*300mm |
| 6. Three roller calendar | 1 set 8500*2500*3400mm |
| 7. Roller temperature controller with Siemens PLC control | 1 set |
| 8.Nonwoven pay-off unit | 2 sets |
| 9.Cooling roller conveyor | 1 set 8600*6500*2500mm |
| 10. Edge trimming unit | 1 set |
| 11. Online thickness measuring units | 1 set |
| 12.Take off/hauling off machine | 1 set 8600*1000*1500mm |
| 13. Meter counter | 1 set |
| 14. Cross guillotine | 1 set7000*1500*1500 |
| 15. Coreless friction winder | 1 set8000*1500*1500 |
| 16.Electrical control system | 1 set |
| 17.Spare parts list | 1 set |
PART 3:COMPANY CERTIFICATIONS OF:
PART 4:COMPANY CERTIFICATIONS OF:
OTHER PLASTIC SHEET EXTRUSION LINE RECOMMEDATION 1. PC/PP hollow profile sheet/hollow grid sheet extrusion line Processing material: PC/PP virgin material plus recycle material Thickness range: 2mm-4mm-6mm-8mm-10mm-12mm Net sheet width: 1220mm-2100mm Layer structure: Single layer or multi-layer Capacity: 200-600kg/h Application: Ads. Decoration, roofing, packaging, printing, etc. 2. ABS/HIPS sheet extrusion machine: Processing material: ABS/HIPS virgin pellets plus recycle material Thickness range: 1-6mm Net Sheet width: 1200mm-1600mm-2100mm(or as per customer's requirement) Layer Structure: Single layer or multi-layer Capacity: 400-800kg/h Application: Vacuum forming, thermoforming, refrigerator inner layer, suitcase, etc. 3. ABS/PMMA sheet extrusion machine: Processing material: ABS/PMMA virgin pellets plus recycle material Thickness range: 1-8mm Net sheet width: 1200mm-1600mm-2100mm(or as per customer's requirement) Layer structure: Single layer or multi-layer Capacity: 400-800kg/h Application: Vacuum forming, bathtub, etc. 4. PP PE foam board/sheet extrusion line Processing material: PP, PE , Foam additives, master batch Thickness range:0.8-3-12mm Net sheet width: 600mm-1260mm- Layer structure: Single layer or double layers (A/B), three layers (A/B/A, A/B/C) Capacity: 150-500kg/h Application: stationery, containers, handbags, heat insulation material, construction, food packing, automobile area, industry application, sports fields etc. 5. PE HDPE sheet extrusion machine: Processing material: HDPE/LDPE/LLDPE virgin pellets plus recycle material Thickness range: 1-2.5mm, 3-35mm Net sheet width: 1200mm-1600mm-1800mm-2500mm-3000mm-40000mm-6000mm-8000mm Layer structure: Single layer or multi-layer Capacity: 200kg/h-1200kg/h Application: Packaging, construction, water-proof, water-drainage, Geomembrane film, etc. 6. PC/GPPS/PMMA sheet extrusion machine: Processing material: PC/GPPS/PMMA virgin pellets plus recycle material Thickness range: 1-12mm Net sheet witdh: 600mm-1220mm-2100mm(or as per customer's requirement) Layer Structure: Single layer or multi-layer Capacity: 400-600kg/h Application: Ads., decoration, roofing, etc. 7. PP/PS sheet extrusion machine: Processing material: PP/PS virgin pellets plus recycle material; Thickness range: 0.15-2mm Net sheet width: 650mm-720mm-1000mm-1300mm-1500mm(or as per customer's requirement) Layer structure: Single layer or multi-layer Capacity: 200kg/h-1000kg/h Application: Thermoforming(cup, bowl, etc. ), stationery, printing sheet, packaging, etc. 8. PET sheet extrusion machine: Processing material: PET virgin pellets(APET or PETG) plus flakes; Or 100% flakes Thicknes range: 0.2-1.5mm Net sheet width: 650mm-1500mm(or as per cusotmer's requirement) Layer structure: Signle layer or multi-layer Capacity: 150-500kg/h Application: Thermoforming(cup, bowel, etc. ), stationery, printing sheet, packaging, etc. 9. PVC sheet/edge banding sheet/marble sheet machine: Processing material: PVC power plus other additive Thickness range: 0.15-1mm; 1-3mm; 3-12mm Net sheet width: 650mm-2000mm-3000mm( or as per customer's requirements) Layer structure: Single layer or multi-layer Capacity: 200kg/h-500kg/h Application: Thermoforming, stationery, printing, payment card, SIM card, construction, etc. 10. EVA car interior decoration sheet extrusion line Processing material: EVA and other additives Thickness range: 1-8mm Width range: 1000-1800mm Layer strcuture: single layer Capacity: 500-800kg/h Application: automotive sealing strips, sound insulation cushion, sound absorption sheets, automobile tail box, fenders, car interior and exterior decoration parts etc. 11. PVC+PMMA Glazed roofing tiles/corrugated sheet extrusion machine Processing material: PVC, PMMA and other additives Thickness range: 1-8mm Width range: 720mm, 880mm, 1040mm Layer structure: A/B, A/B/A, A/B/C Capacity: 400kg/h Application: garden-style factory, tourist scenic spots, pavillions, hotels, family building etc.
>>
