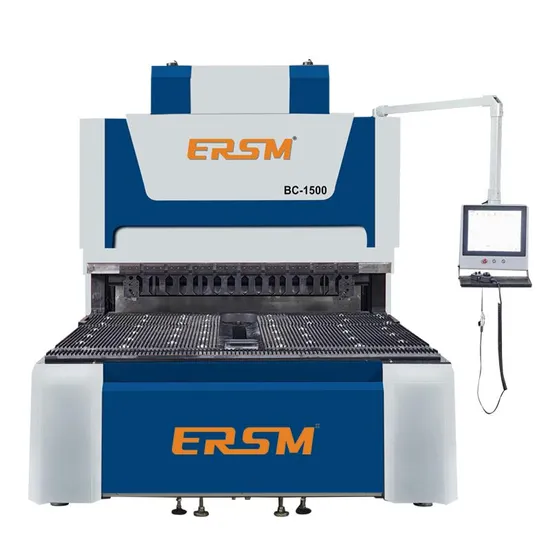

Safety Standard 13-Axis Configuration Multilateral Bending Center Machine

Product Description

Product Features
· Multi Positioning Ways
· Automatic Correction Of Rotation Angle
· Real-time display of programming bending results, what you see is what you get
· The processing speed is fast, and the distance of retraction and rotation is automatically matched for workpieces of different sizes
· Support a variety of processes, complex angles/hemming/arcs/special actions and other complex actions can be formed in one step
· Support 3D graphics import function in step format, start processing after direct import
Praduct Parameter

Model		BC1200	BC-1500	BC-2000	BC-2500
Max. Bending Length		1200mm	1500mm	2000mm	2500mm
Max. Bending Height		200mm	170mm	150mm	150mm
Max. Bending Speed		0.2s/time	0.2s/time	0.2s/time	0.2s/time
Bending Minimum Single Side Size		75mm	85mm	120mm	120mm
Bending Capacity	Iron Plate	2mm	1.5mm	2mm	2mm
	Stainless Steel	1.5mm	1mm	1.5mm	1.5mm
	Aluminum Plate	3mm	2mm	3mm	3mm
Rotary Suction Cup Size		220mm*130mm	190*130mm	Diameter 100mm	Diameter 100mm
Sheet Metal Maximum Unfolded Size		1200*1200mm	1600*1250mm	2400*2400mm	2800*1800mm
Rated Voltage		380V AC	380V AC	380V AC	380V AC
Peak Power		8KW	15KW	20KW	20KW
Average Power		1KW	2KW	5KW	5KW
Noise		60dB	60dB	60dB	60dB
Minimum Control Unit		0.001mm	0.001mm	0.001mm	0.001mm
Repeat Positioning Accuracy		120m/min	120m/min	120m/min	120m/min
Repeat Positioning Accuracy		±0.005mm	±0.005mm	±0.005mm	±0.005mm
Working Environment Relative Humidity		30%~90%RH	30%~90%RH	30%~90%RH	30%~90%RH
Size		2950*1590*2666mm	4000*1800*2500mm	5600*2500*2500mm	5700*3000*2800mm
Weight		5000kg	9000kg	17000kg	22000kg

FAQ
1. Who are we?
A:We are based in Jiangsu, China, start from 2011,sell to Southeast Asia(20.00%),Eastern Europe(20.00%), WesternEurope(10.00%), North America(10.00%), Northern Europe(5.00%), Central America(5.00%),SouthAmerica(5.00%),Eastern Asia(5.00%),South Asia(5.00%),Oceania(5.00%),Southern Europe(5.00%),Africa(3.00%),MidEast(2.00%). There are total about 11-50 people in our office.
2.Which payment terms you can accept?
A: We can accept flexible payment include Bank Transfer, LC, DP, West Union, Paypal, or Combination terms as negotiation.
3.Which shipping way can you provide?
A: We can provide shipping by sea, by air, by express and etc according to customer requirements.
4.How to place order?
A: When you are ready to order, please contact us for confirm the suitable solution & plan & model. What cannot be ignored is you should provide a copy purchase order to ensure that your order is processed properly. 5.Do you have an inspection procedure for the product?
A: Yes, We have a strict inspection of product quality and packing.

---
