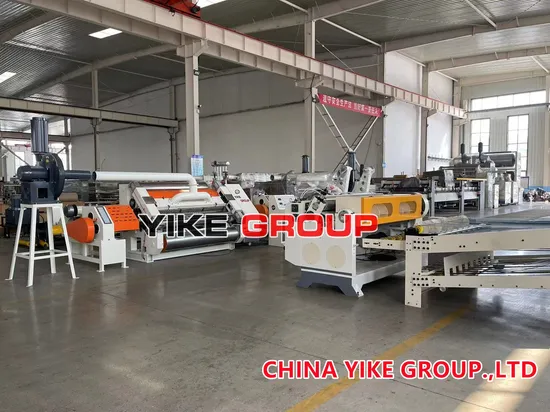

Yk-1600mm 2-Layer Corrugated Paperboard Production Line for Corrugated Paperboard Making

Product Description

Yk-1600mm 2-layer Corrugated Paperboard Production Line For Corrugated Paperboard Making
ZJ-F shaftless mill roll stand
Structural features:
★Symmetrical structure can also install two bundles of paper at the same time,Paper can be used for non-stop for a job;Adopts mechanical drive to complete the paper clamping, lifting, loosen, move on, around translational motion, etc.
★each shaftless mill roll stand is equipped with two pieces of paper guide, two set of paper car;paper guide the use of channel 14 and the guide post weld,paper car adopt 10mmwelded stell,the length of track is 4500mm.
★manual dics brake,add screw following
★electric elements centralized control the electric elements,expand chuck.
ZJ-V5B hydraulic shaftless mill roll stand structural feature: 1.Adopt hydraulic drive to complete the paper clamping, loosen, remove for the medium, translation left and right and others,the lifting of the paper adopts hydraulic drive. 2.Brake adjustable adopts multipoint braking system. 3.Every stand matched two sets paper car , and they can paper on the both sides at the same time. Technical parameters: 1,the range of clamping paper:MAX1800mm MIN1000mm
2,clamping diameters:MAX¢1500mm MIN¢350mm
3,main shaft diameter of paper holder:¢242mm
4,gas source work pressure(Mpa):0.4---0.8Mpa
5,equipment size:Lmx4.3*Wmx1.8*Hmx1.6
6,single weight:MAX4000Kg
Mainly purchased parts, raw materials and origin:

Name of main parts	Brands or place of origin	material
Main shaft	Day steel production	diameter242mm
Swing arm	Production by own	Resin sand gray ironHT200
wallboard	Jigang prduction	Q235AWelding parts
bearing	HRB,ZWZ,LYC
Toothed chuck	Zhejiang xusheng	3,4inch shared
Main electrical appliance	France
button	CHINT NP2series
Air switch	French
Pneumatic components	Japan SMC or Taiwan Airtac
Hydraulic station	Shandong zaozhuang
Brake pump	zhejiang

SF-280S fingerless type single facer(Steam heating)
Structural features: 1.Adopt vacuum suction structure, with high pressure strong blower. Suction with silencer. 2,base and wallboard cast iron wall, Wallboard thickness130mm.universal Joints.
3,corrugated roller material adopt 48CrMo Alloy steel.
4,pressure roller ¢ 284mm,surface grinding and chrome-plated; cylinder control and remove up and down, 45 carbon steel materials, quenching (with cushioning devices).
5,pneumatic control glue to glue back, glue roller diameter ¢215mm,Engraved polished surface after a 36-line pit style textured machined chrome plated,after scraping the roller surface polished hard chrome plated.
6,Corrugated roller, pressure roller materials provided by the Central Plains Steel,High on corrugating unilateral 0.15mm, 0.075mm high pressure roller unilateral. Plus stopper. ¢ 160mm cylinder with compression cylinder.
7,preheat roll adopt seamless steel pipe production by tiangang ¢ 300mm,connecting with metal Hose.
NC-1600 Computer sheet cutter machine Structural features: 1,can save 200 sets of orders, replace the cutting specifications quickly and accurately, non-stop for a single, and can achieve computer networking, easy production management.
2,knife shaft drive gear with eccentric shaft installation, to achieve no backlash drive, high transmission accuracy.
3,cross-cutting knife with inserts steel blade. Fixed blade blade flat structure, more stable, more suitable for cutting high weight and high toughness of cardboard, the shear force is small, long blade life.
4,pull paper roller outsourcing non-slip material, more wear-resistant, accurate size.
5,host base and wall panels with high-grade gray cast iron, high strength, strong anti-vibration.
6,servo controller control motor drive, 5.7 inch color touch screen display, the project at a glance.
cutting length: 300mm-9000mm, cutting accuracy: ± 1.5mm (steady speed).
General technical parameters: 1.Working width:1600mm 2.Mechanical speed:60m/min 3.Minimum cut length:300mm 4.Maximum cutting length:9000mm 5.Cutting accuracy: uniform speed ±1.5mm Power motor and electrical parameters: 1.Main drive motor power:3KW 2.Full AC Synchronous Servo Control 3.Papermaking motor power:3KW(Frequency)
Rotary paper receiving machine 1.the machine receiving the highest speed 70m / min. 2.the maximum length of the machine to receive paper 1350mm. 3.the machine can achieve automatic points without stopping, automatic stacking, automatic sub-stacker.
4.The maximum stacking height of the local stacking unit is 100mm.
5.the automatic stacking machine covers an area of small, and save manpower, is the best choice for low-speed machine.

FAQ
1. who are we?
CHINA YIKE GROUP, Which based in Hebei, China, start from 2002,sell to Mid East(24.00%),South America(21.00%),Eastern
Europe(15.00%),Africa(10.00%),Southeast Asia(10.00%),North America(5.00%),Western Europe(2.00%),Southern Europe(2.00%),Eastern
Asia(10.00%). There are total about 5-10 people in our office.
2. how can we guarantee quality?
Firstly pre-production sample before mass production;
Secondly Inspection before shipment;
3.what can you buy from us?
Corrugated Cardboard Production Line,Carton Box Making machine, Box Printing Forming Machine, Auto folder gluer, sitching machine, die cutting machine, bundling machine..
4. why buy from us not from other suppliers?
Factory related carton machinery import & export company, based on more than 30 years experience in providing complete and carton machinery solutions according to different customer situations and requriements. reliable quality and good service on site.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,DDP,DDU,Express Delivery,DAF,DES;
Accepted Payment Currency:USD,EUR,JPY,CAD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Portuguese,Arabic,French,Russian,Italian

---
