US$12,900.00
|
1 Piece
(MOQ)
|
Basic Info.
Model NO.
QSZQ-1200 (H450)
Application
Mineral Industry, Stone Industry
Automation
Semi-automatic
Cutting Ability
High Speed
Production Capacity
1000PCS/Year
Product Description
Product Description

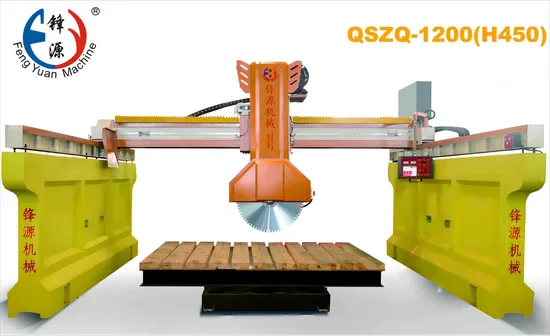

QSZQ-1200 (H450) Curb stone cutting machine
* This stone cutting machine adopts long-span bridge structure.
* The beam and the side beam are sealed by rail oil immersion, and the anti-wear lubricant forms a thin oil film between the rail and the slide block. At the same time, the side beam protective film is provided to reduce the material loss to the extreme.
* The imported inverter used in the cutting system can realize stepless speed regulation cutting.
* Equipped with 360-degree rotating table, flexible rotation, accurate positioning, good rigidity, so that the machine cutting smooth and high processing rate.
* This stone cutting machine is the ideal equipment for processing high value stone, tombstone crafts, and roadside stones.
Product Parameters
| Type | Unit | FY-QSZQ-1200 | FY-QSZQ-1400 |
| Crossbeam Height | mm | 450 | 450 |
| Blade Diameter | mm | 600-1200 | 800-1400 |
| Movement Stroke | mm | 800 | 800 |
| Working lengtt | mm | 2800 | 3200 |
| Working width | mm | 2000 | 2000 |
| Main motor power | Kw | 30 | 30 |
| Water consumption | m²/h | 4 | 4 |
| Overall dimensions | mm | 6000x4700x4200 | 6000x4700x4200 |
| Total Weight | Kg | 6800 | 7000 |
| Total Weight | Kg | 8000 | 8000 |
Factory View
Workshop
>>
