US$6,500.00-7,500.00
|
1 Piece
(MOQ)
|
Basic Info.
Required Paper
Single and Double Side PE Coated Paper
Logo Printing
With Logo Printing
Raw Material
Single and Double PE Coated
Overall Size
2000*1000*1600mm
Transport Package
Woodencase
Production Capacity
50PCS/Minute
Product Description
Paper Cup Maker Making Forming Machine Price JBZ Product Description

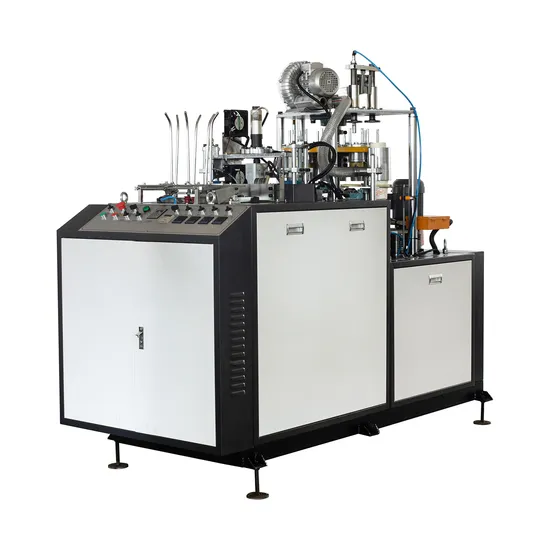

JBZ-OCS9 Paper Cup Making Machine is a multi station high-speed automatic machine which producing both single and double PE coated drink cups/glasses,ice cream cups/glasses through continuous process of automatic paper feeding,sealing,oil injection,bottom cutting,heating,knurling,curling and stacking.The machine adopt hot air system,full-automatic failure warning,counting,detection,stopping,etc.
Product Parameters
| Model | JBZ-OCS09 Paper Cup Making Machine |
| Cup Side Welding: | Heat Sealing/Ultrasonic heater |
| Paper Cup Size | 3 ~9OZ (30ml~270ml Mould exchangeable) Max Cup height to 115 MM |
Raw Material | One or Two side PE coated Paper (Popular for Hot and Cold drink Cups) |
| Suitable Paper Weight | 140-350gsm |
| Speed | 65-75 pcs/min |
| Total Power | 6 KW |
| Power Source | 50/60HZ, 380V/220V ( better use 380V, 3 Phase ) or special Power requirement. |
| N.W | 1400Kg |
| Gross Weight | 1500Kg |
| Machine Size(L * W * H) | 2000*1000*1600mm |
| Package Size(L * W * H) | 2100*1050*1700mm |
Working Air Source: | Air pressure:0.4Mpa; Air Out-put:0.6m³/minute Need to buy Air Compressor(by user) |
Cup Bottom Heating: | 1side PE paper by heater knurling; 2side PE paper by hot air system cool device (circle water) knurling |
Cup Bottom Knurling: | Heater Knurling (if use single PE coated paper) |
| Packing | Seaworthy Wooden Case |
ABOUT US
ZHEJIANG CHINAWORLD MACHINERY CO.,LTD is a profecianal machinery manufacturer and export company.Our machinery factory is specialized in producing all kinds of non-woven and paper products machine.Such as Face Mask Making Machiney,Non-woven Bag Making Machine,Non-Woven Cap and Shoe Cover Machine,Paper Cup Machine,Paper Straw Making Machine,Paper Plate Making Machine,Paper Cover Making Machine etc.
