Product Details
Product Description
Product Description

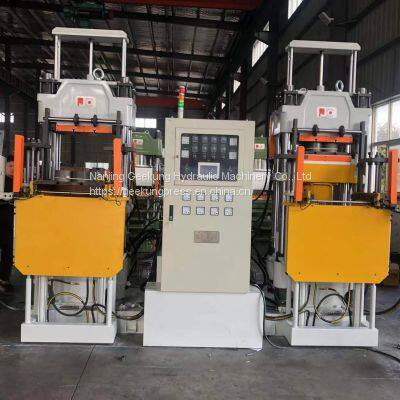

Rubber&Silicone Vacuum Compression Molding Press Machine is one of our main products,"Geekung" is the famous brand in China for Rubber&Silicone Rubber&Silicone Vacuum Compression Molding Press Machine,made with premium components and strict QC management,featuring high quality&reliable operation,durable service life,our Rubber&Silicone Vacuum Compression Molding Press Machines are being sold very popular across China,enjoying good reputation,we are now also expanding our overseas market.
Applications: The Rubber&Silicone Vacuum Compression Molding Press Machine is ideal for the production of making rubber or silicone parts, such as O-rings,seals,keyboards,connector,bushing,rubber medical products,etc.
Features for our Rubber&Silicone Vacuum Compression Molding Press Machine:
· The world-class brand vacuum pump &vacuum housing provide highly efficient vacuum suction effect for the entire mold inside the heating platen, making the rubber materials more dense and free of air,ensuring perfect final finished rubber products.
· Our Rubber&Silicone Vacuum Compression Molding Press Machine is installed with integrated hydraulic circuit providing various piping functions on the circuit boards, reducing piping to a minimum. The oil cooler ensures long service life of the circuit valves.
· Hydraulic pressure & speed control system adopt optimized and advanced proportional pressure valve and proportional flux valve with loop circuit feedback control from PLC,realizing reliable and smooth “high speed-low speed ”clamping operation.
· The main components of the Geekung Rubber&Silicone Vacuum Compression Molding Press Machine like top base,middle base and cylinder body are all made of premium ductile cast iron,ensuring the durable high stability of the machine even after many years service,won’t have the problem of deformation.
· Parallelism of hot plates is controlled with the tolerance of 0.03mm per 300mm.
· The temperature tolerance of each point on the upper and lower plates is within ±2℃.PID temperature calibration.
· Preheating function is available to set on the HMI (touch screen).
· Replacement time of lubricating oil can be set up from touch screen and auto alarm.
· Time-counting for machine working time.Safety interlock for movement, fool-proof design. Automatic abnormal alarm function.
· PLC monitor entire production,1000 production recipes can be saved and USB data transmission conveniently.Remote Touch screen password setting.
· Remote control provides more convenient after sales service,even the customers are far away in another country, our engineer can reach your control system to conduct necessary maintenance or update Geekung Rubber&Silicone Vacuum Compression Molding Press Machine with the newest system.
· Pressure protection design ensure the safe working of the machine.
· Safety light curtain device to prevent operators from potential injury.
● Automatic retrieval of machine faults, automatic display of machine action positioning.
● All control components for our rubber&silicone Vacuum Vulcanizing Press Machine adopts world-class famous brand, like Omron PLC,Fuji display,Yuekn valves,Busch vacuum pump,TECO motor,Schneider electric elements,etc.
● Various high efficient rubber product demoulding devices are available for options, such as sliding plate, side ejector, reverse plate, low clapper,etc,depends on your product strucutre, you can choose 2RT, 3RT or 4RT system to remove the final products automatically from the mold.
●Single station or double stations are available for option.
●CE Certificate is available.
Technical specification:
Clamping Force
(ton)
| Main Ram
Diameter
(mm)
| Heating Platen
size(mm)
| Stroke of
Main Ram
(mm)
| Daylight
(mm)
| Power
Consumption
(single)
(kw)
| Power
Consumption
(Double)
(kw)
|
100
| Ø250
| 405x430
| 250
| 300
| 14.0
| 24.3
|
150
| Ø300
| 450x480
| 250
| 300
| 16.4
| 32.8
|
200
| Ø355
| 505x510
| 250
| 300
| 23.1
| 42.4
|
250
| Ø400
| 570x610
| 250
| 300
| 25.8
| 47.8
|
350
| Ø457.2
| 700x700
| 250
| 300
| 25.8
| 47.8
|
500
| Ø560
| 700x700
| 250
| 300
| 29.5
| 59.0
|
850x850
| 40.0
| 80.0
|
1000x1000
| 49.6
| 99.2
|
>>
