Basic Info.
Position of Pump Shaft
Horizontal
Transport Package
Wooden Case
Production Capacity
1000sets/Months
Product Description
Product Description

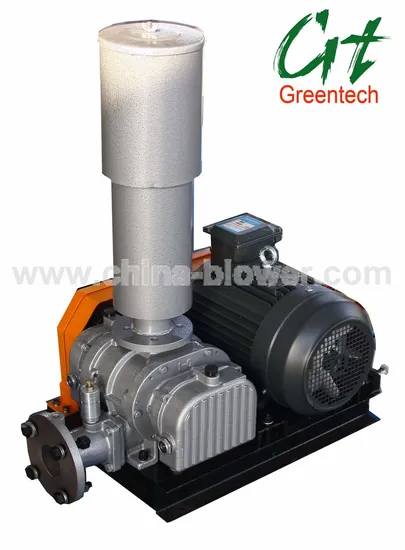

Greentech International (Zhangqiu) Co., Ltd is the professional roots blower supplier. The NSRH type clover spiral Roots blower on the basis of the manufacture and sale of a Roots blower for many years the development of new products using new technology.
The machine through the use of new lines on the impeller, the overall adiabatic efficiency and volumetric efficiency is further improved, and is excellent particularly in the fan of the air volume and pressure characteristics.
So-called excellent efficiency is the amount of heat generation of the wind turbine itself is reduced, i. e. The temperature rise dropped, the various models using the exhaust pressure in the dry state is up to 1kgf/cm2.
Duty:
Bore: 50 ~ 300mm
Flow capacity: 0.5 ~ 134.1m3/min
Pressure rise: 9.8kPa~98.8kPa
Vacuum: -49kPa
Application:
Mainly used in sewage treatment (aeration), powder conveyor (cement, feed, etc. ), combustion furnace, washing, vacuum packaging.
Detailed Photos
Product Parameters
| | La: Required electric power (kW) |
| | | 0.55kw | | 0.75kw | | 1.1kw | | 1.5kw | | 2.2kw | | 3kw | | | 4kw | | | 5.5kw | Qs: Suction Air Volume (m3/min) |
| 50H Tri-Lobe Roots Blower Performance Table |
| speed | Discharge Pressure(kgf/cm2) |
| 0.10 | 0.15 | 0.20 | 0.25 | 0.30 | 0.35 | 0.40 | 0.45 | 0.50 | 0.55 | 0.60 | 0.65 | 0.70 | 0.75 | 0.8 |
| 9.8kpa | 14.7kpa | 19.6kpa | 24.5kpa | 29.4kpa | 34.3kpa | 39.2kpa | 44.1kpa | 49kpa | 53.9kpa | 58.8kpa | 63.7kpa | 68.6kpa | 73.5kpa | 78.4kpa |
| Qs | La | Qs | La | Qs | La | Qs | La | Qs | La | Qs | La | Qs | La | Qs | La | Qs | La | Qs | La | Qs | La | Qs | La | Qs | La | Qs | La | Qs | La |
| 1100 | 1.22 | 0.30 | 1.14 | 0.41 | 1.12 | 0.52 | 1.03 | 0.67 | 0.99 | 0.78 | 0.92 | 0.91 | 0.90 | 1.04 | 0.83 | 1.16 | 0.78 | 1.32 | 0.70 | 1.54 | 0.67 | 1.60 | 0.61 | 1.89 | 0.55 | 1.90 | 0.49 | 2.38 | 0.43 | 2.63 |
| 1200 | 1.38 | 0.38 | 1.30 | 0.50 | 1.27 | 0.64 | 1.18 | 0.79 | 1.14 | 0.92 | 1.07 | 1.05 | 1.05 | 1.20 | 0.98 | 1.37 | 0.94 | 1.49 | 0.88 | 1.65 | 0.84 | 1.78 | 0.78 | 2.01 | 0.73 | 2.10 | 0.69 | 2.49 | 0.62 | 2.79 |
| 1350 | 1.53 | 0.44 | 1.45 | 0.61 | 1.42 | 0.74 | 1.32 | 0.85 | 1.28 | 1.04 | 1.25 | 1.07 | 1.19 | 1.34 | 1.15 | 1.53 | 1.09 | 1.65 | 1.03 | 1.8 | 0.99 | 1.95 | 0.95 | 2.23 | 0.85 | 2.28 | 0.86 | 2.76 | 0.79 | 3.01 |
| 1450 | 1.66 | 0.50 | 1.55 | 0.64 | 1.54 | 0.82 | 1.43 | 0.96 | 1.40 | 1.14 | 1.34 | 1.30 | 1.30 | 1.47 | 1.21 | 1.63 | 1.20 | 1.79 | 1.12 | 1.91 | 1.14 | 2.05 | 1.06 | 2.35 | 0.95 | 2.42 | 0.97 | 2.90 | 0.93 | 3.21 |
| 1530 | 1.75 | 0.56 | 1.66 | 0.75 | 1.63 | 0.90 | 1.53 | 1.07 | 1.49 | 1.24 | 1.45 | 1.41 | 1.39 | 1.58 | 1.33 | 1.74 | 1.30 | 1.92 | 1.28 | 2.12 | 1.24 | 2.29 | 1.22 | 2.55 | 1.10 | 2.52 | 1.16 | 3.18 | 1.13 | 3.56 |
| 1640 | 1.89 | 0.64 | 1.79 | 0.81 | 1.76 | 1.01 | 1.71 | 1.15 | 1.62 | 1.37 | 1.61 | 1.54 | 1.52 | 1.74 | 1.52 | 1.88 | 1.43 | 2.10 | 1.43 | 2.28 | 1.38 | 2.49 | 1.38 | 2.75 | 1.28 | 2.63 | 1.32 | 3.32 | 1.29 | 4.16 |
| 1730 | 2.00 | 0.71 | 1.91 | 0.95 | 1.87 | 1.10 | 1.82 | 1.25 | 1.73 | 1.48 | 1.73 | 1.68 | 1.62 | 1.86 | 1.60 | 2.03 | 1.53 | 2.25 | 1.57 | 2.47 | 1.48 | 2.66 | 1.50 | 2.93 | 1.35 | 2.92 | 1.42 | 3.54 | 1.39 | 4.26 |
| 1840 | 2.13 | 0.80 | 2.11 | 1.03 | 2.00 | 1.20 | 1.99 | 1.39 | 1.86 | 1.62 | 1.87 | 1.79 | 1.75 | 2.02 | 1.78 | 2.25 | 1.67 | 2.43 | 1.72 | 2.65 | 1.62 | 2.86 | 1.65 | 3.15 | 1.51 | 3.22 | 1.56 | 3.64 | 1.51 | 4.29 |
| 1950 | 2.27 | 0.89 | 2.27 | 1.14 | 2.13 | 1.32 | 2.15 | 1.51 | 1.99 | 1.75 | 2.04 | 1.94 | 1.88 | 2.18 | 1.93 | 2.41 | 1.81 | 2.61 | 1.86 | 2.81 | 1.75 | 3.06 | 1.78 | 3.42 | 1.68 | 3.43 | 1.71 | 3.97 | 1.68 | 4.30 |
| 2130 | 2.48 | 1.02 | 2.52 | 1.28 | 2.33 | 1.49 | 2.39 | 1.73 | 2.09 | 1.96 | 2.26 | 2.17 | 2.08 | 2.42 | 2.18 | 2.68 | 2.01 | 2.89 | 2.01 | 3.15 | 1.96 | 3.37 | 2.02 | 3.77 | 1.88 | 3.75 | 1.95 | 4.21 | 1.91 | 4.52 |
>>
