Power Jet Hot Sale High Speed 2 Cavity Full Automatic HDPE Bottle Blow Moulding Molding Machine

Product Description

EXTRUSION BLOW SERIES

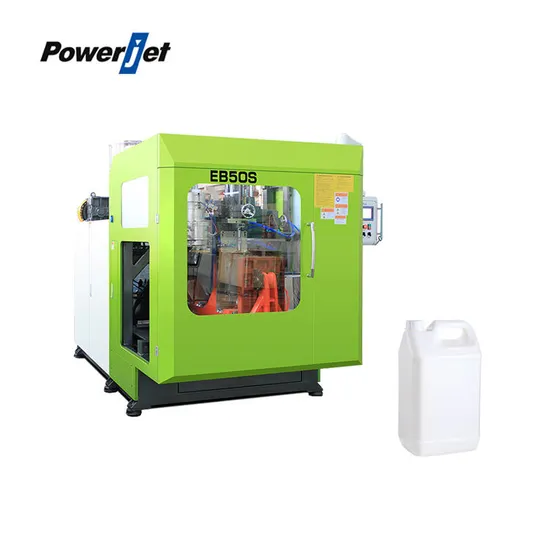

S SERIES HIGH-SPEED SINGLE STATION EXTRUSION BLOW MOLDING MACHINE EB50S.
Powerjet Double Station Extrusion Blow Molding Machine EB50S is specialized for manufacturing bottles and containers which under 5L.

Max Bottle Capacity - 5(L)
Clamping Force - 86(KN)
Extrusion Weight(HDPE) - 65(kg/hr)
Applications - Wide Range Of Bottles For Daily necessities, toiletries, beverages, water tanks, laundry detergent/shower gel/motor oil bottles, etc.
FEATURES:
1:Toggle balance clamping structure, with platen opening & clamping and mold platen movement by a linear guide, to achieve low friction and high speed.
2:Based on the Finite Element Analysis design, and platen, toggle and platen frame made in high intensity nodular cast iron.
3:High speed mold clamping oil cylinder with differential speed function, and high speed mold moving cylinder with special anti-shock cushion valve structure.
4:Specially designed to screw with high L/D ratio insures good plasticizing and stable extrusion; high precision and no part line die head guarantees customers' top quality requirement.
5:Multi-screw & multi-die head can be adopted to improve the quality of the product and lower down the cost of material.
6:Multiple-way PID controlled temperature heating is precise and stable.
Product Description

Company Information
Description:

Model		EB50S
Max. Product	L	5
Clamping Force	KN	86
Max.Mold Size(W*H)	mm	480*430
Screw Diameter	mm	70
Screw L/D Ratio	L/D	25
Screw Rotary Speed	RPM	65
Extrusion Weight (HDPE)	kg	65
Extrusion Motor Power	KW	18.5
Pump Motor Power	KW	11
Heating Capacity	KW	19
Operation Pressure	Mpa	0.6~0.8
Air Consumption	m3/min	2
Cooling Water Consumption(25°c)	L/min	70
Machine Dimensions (LXWXH)	mm	3600*2300*2150
Machine Weight	kg	38000

Packaging & Shipping
Our Services
FAQ
Q1: Are you a manufacturer or trading company?
A1: We are a factory for plastic machines. Over 24 Years of Experience In Manufacturing Injection Molding Machines and Blow Molding Machines.
Q2: Is it possible to send an engineer to install and commission the machine, even train our workers?
A2: Yes, we can send our engineer to your factory for installation, commissioning, training. We have some engineers flying among different countries for after-sales service and technical support. Therefore, we need you to prepare an invitation letter for the visa before shipment. However, please be noted that all costs for visa, travel, the hotel should be paid in advance by customers.
Q3: If we buy your machines, is there any warranty?
A3: Yes, definitely. 12-months warranty after shipment for mechanical parts, hydraulic parts, electric components (The screw just has 6-months). We are responsible for broken parts within 12-months. We will supply those parts for free but the possible transportation cost should be paid by clients.

Please feel free to consult us whenever you want to know more information. Thanks~

---
