Welcome to visit

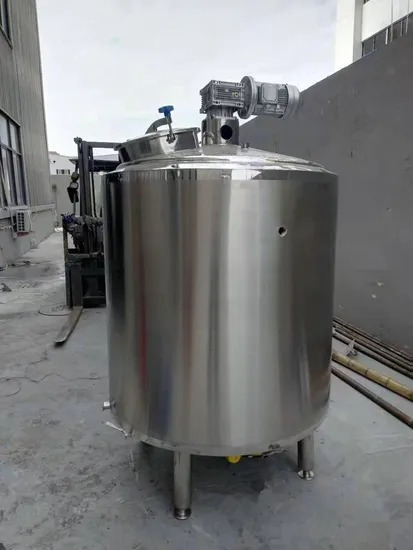

1000L 2000L Stainless Steel Steam Heating Jacketed Cooking Mixing Tank

US$3,500.00 1 Piece (MOQ)

Basic Info.

Model NO.
KQ Series
Application
Liquid with Suspended Solids, Viscous Fluid, Liquid, Granules
Application Area
Milk, Juice, Wine, Chemical
Certification
CE, ISO
Condition
New
Heating Method
Steam Heating
Main Material
Stainless Steel
Mixing Drum Shape
Double Cone
Stirring Type
Electricity
Warranty
One Year
Working
Mixer, Speed Adjustable
Name
1000L 2000L Stainless Steel Steam Heating Jackete
Material
Sanitary Stainless Steel 304, 304L, 316, 316L
Type
Single Wall / Jacketed Wall / Insulation Wall
Heating
Steam /Water / Electricity /Gas
Treatment
Inside Mirror and Outside Polished
Motor
ABB/Siemens /Changjiang
Speed of Mixer
36rpm /48rpm /72rpm/ 1400rpm/2900rpm
Usage
Dairy, Juice, Chemistry, Pharmacy
Accessory
CIP, Air Vent, Valve, Thermometer, Pressure Guag
Working Life
20 Years .
MOQ
1set
Packing
Wooden Box
Motor Brand
ABB/Siemens /China Brand
Cleaning
CIP Cleaning Ball
Voltage ,Hz,Phase
Make It to Your Order
Mixer Type
Agitator
Layout Type
Horizontal
Operating type
Continuous Operating
Transport Package
Standard Wooden Box
Specification
Make to your order
Trademark
KQ
Origin
Shanghai, China
HS Code
8479820090
Production Capacity
1000 Sets / Month

Product Description

1000L 2000L Stainless Steel Steam Heating Jacketed Cooking Mixing Tank
1. Dairy milk mixing tank
Liquid Mixer Mixing Vat Mixing Vessel Heating Tank .
Preparation tank/mixing tank for dairy production line, Shanghai, China (Mainland)
The dairy preparation thus obtained is conveyed to storage tanks where it is also subjected to continuous stirring.
2. Technical Parameter :
Specification D(mm) D1(mm) H1(mm) H2(mm) H3(mm) δ (mm) DN(mm)
KQ100 400 600 400 1050 250 3 32
KQ150 400 600 400 1450 250 3 32
KQ200 500 700 400 1450 250 3 32
KQ300 600 800 400 1450 250 3 32
KQ500 800 1000 500 1350 330 4 40
KQ600 800 1000 500 1550 330 4 40
KQ1000 1000 1200 700 1750 330 5 40
KQ1200 1000 1200 700 1950 330 5 40
KQ1500 1100 1300 700 1950 330 5 40
KQ2000 1400 1600 700 1650 3360 5 40
KQ2500 1400 1600 800 2000 330 5 40
KQ3000 1500 1700 800 1900 330 6 40
KQ4000 1700 1900 900 2100 330 6 40
KQ5000 1700 1900 900 2850 400 6 50
KQ6000 1800 2000 1000 2850 400 6 50

Because a typical dairy plant might manufacture yogurts, drinks and cheeses tanks. Our sanitary dairy mixing tanks could encompass the entire plant and all products, or we could create a partition between processes if it is possible to separate resource usage, raw materials, and so on. We make the assumption here that these different processes are independent and so decide to focus on the yogurt process.
Application scope:
Food industry: Edible coloring matter, chocolate coating, filling food, syrup, flavoring, various additive, etc;
Medicine industry: Medical ointment, ointment, lotion, cream, various vitamin, etc
Chemical industry concerned with product of daily use: Shampoo, detergent, cream, tooth paste, paraffin liquor, hair dye, etc.
Adhesive industry: Rubber liquor, polyester sulfured, silicone, hot-melt adhesive, polyurethane, etc.
Liquid Mixing Tank Mixing Vat Mixing Vessel Heating Mixer
1000L 2000L Stainless Steel Steam Heating Jacketed Cooking Mixing Tank
