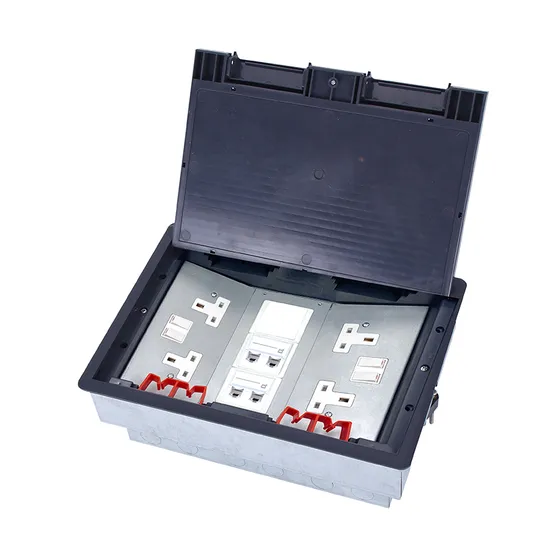

Safewire Htd-626b-45: 3 Compartment Floorbox, Hornzontal Vertical Installation Socket and 45*45mm Modules, 115 mm Galavanized Box Universal for Raised FL

Product Description

Quick Details

Serial No.	Parameter	Description
1	Safewire item	HTD-626B
2	Material of cover plate	ABS
3	Material of base	Thickness 0.9mm galvanized mild steel
4	Overall Frame & Lid (mm)	320.5*230.5
5	Compact floor cut-out(mm)	(305-310)*(210-215)*115mm
6	Thickness of concavity/Frame lid recess (mm)	8
7	Installation depth(mm)	115mm
8	Plug top clearance(mm)	45~70
9	Available modules	3/4 compartment 86mm/146mm/45mm/120mm ways modules international socket
10	Accessories plates	90*80mm

Feature of Safewire floorbox :
1.More capacity:8,12,16,24 way 45*45mm modules ; or 3 compartments bridges:
2.More optional switch & socket: International 45*45mm modules,86 type,120 type etc.
3.More optional installation:Horizontal,Side-mounting, Side-mounting & Horizontal;
4.More optional box : Galvanized box, Stainless steel box and plastic box etc.
Specification of Safewire floorbox :
A)Product dimension:
B)Safewire floorbox Application in different floor system:
Raised floor system:
Flush floor trunking system:
1.For concrete floor
Align floor box in centre as delivered.Bend open ears and fix to raw ceiling.
2.For raised floor
Put under floor box into cut out and adjust height.Put under floor box into hole/location of raised floor.Then move the adjustable screw in clockwise direction until screws are tightened with flooring.lead the lines into plastic bottom box.
Advantages of Safewire floorbox : FAQ 1.Do all of your products comply to National standards?
Our products meet China National standard ,IEC standard and the relevant national standards such as SASO.
2.Do you do specials?
We continuously hold capacity in our manufacturing & fabrication facilities to offer market leading flexibility on specials or bespoke socket and wiring management systems
3.What lead times do you offer?
Lead time is dependent on many factors including type of unit and quantity required. We stock an extensive range of core product in a number of sizes that can be available 14 working days.Lead time indications are stated on quotations, but by all means feel free to ask for up to date information.
4.Can I request a specific delivery time/day?
Safewire will always endeavour to meet our customer's requirements and hit special delivery times every day.
5.How long is the warranty on your products?
There is a 12 month warranty from date of delivery. In the event of any failure, items must be returned to Safewire for full investigation.
6.Can I request a sample from Safewire?
Safewire are happy to supply sample to our partners, please contact us directly to discuss your request.
7.Can I request sales and marketing material?
Safewire are continually investing in their sales and marketing material, please contact us directly to discuss your requirements.

---
