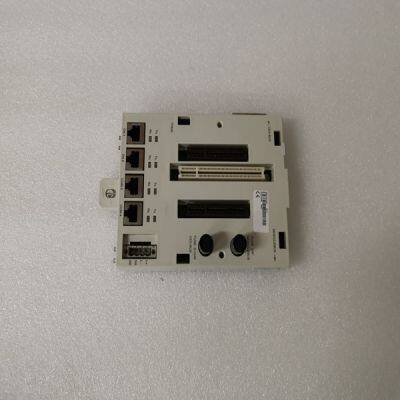

TP830 3BSE018114R1

Product Details

Product Description

Product Description
Brand: ABB
Type:TP830 3BSE018114R1
Origin: the Swiss
Warranty: 365 days
Colour: new/used
Shipping method: Courier delivery
Module of PLC, DCS, ESD system card, the card is a vibration monitoring system, steam turbine control system module, the advantages of the gas generator spare parts brand: Allen Bradley, BentlyNevada, ABB, Emerson Ovation, Honeywell DCS, Rockwell ICS Triplex, FOXBORO, Schneider PLC, GE Fanuc, Motorola, HIMA, TRICONEX, Prosoft etc. Various kinds of imported industrial parts of our products are widely used in metallurgy, petroleum, glass, aluminum manufacturing, petrochemical industry, coal mine, papermaking, printing, textile printing and dyeing, mechanical, electronic manufacturing, automobile manufacturing, plastic machinery, electric power, water conservancy, water treatment/environmental protection, boiler heating, energy, power transmission and distribution and so on.
Power supply: Option for redundant power supply, decoupled via diodes. Nominal: +24 V DC Spannungsbereich: +18…+31,2 V DC Power consumption: Depending on the built-in options. max. 6 W Housing: Aluminium, non-corroding Protection class: IP 65 according to DIN 40050, IEC 144, CE certified. EMC tested: according to EN 55011 and EN 61326 Environmental conditions: (according to IEC 359, DIN 43745) Maximum permissible temperature of the mounting surface: 65°C. Operating temperature range: -20…+65°C Mounted on 10 mm spacing bolts: Maximum permissible temperature of the mounting surface: 90°C. Operating temperature range: -20…+45°C By all means, heat concentrations must be avoided by constructive measures. Permissible relative humidity: 0…...95 % non-condensing Vibration and shock : shock: 20 g over 2 ms vibration: 5 g at 60 Hz Mounting direction: Preferably with the cable glands downwards. Dimensions: See drawing Weight: Depending on the chosen hardware options. Net weight: max. 1,3 kg Gross weight: max. 1,5 kg
Module and sensor supervision: The internal module supervision continuously checks the following functions: • whether the input signal is within the predefined range. • whether the cable between transmitter and sensor is ok (no short-circuit / no broken cable). • The system voltages. The state of module and sensor supervision can be signalled by means of switching contacts of the function outputs. Specifications of the different options can be found in the technical data. The most important configuration parameters: All configurations are made by means of the MMS 3910W configuration software. The configuration software is not contained in the transmitter's extent of supply and must be ordered separately. The adjustable parameters, shown in the list below may differ, depending on the chosen operation mode and measuring function. • KKS identification per channel • Operating mode • Sensor sensitivity • Series resistance of safety barriers • Measuring range • Measuring mode • Frequency range of the measurement • Characteristical variables • Current suppression • Current calibration • Current smoothing • Shift of output current • Zoom function for current output • Warning and alarm limits • Operating principle of function outputs • Limit value hysteresis • Response delay of alarm outputs • Limit downscaling • Test values Limit supervision and Function outputs: The transmitter provides altogether five so-called function outputs. Each of these function outputs can be assigned to a limit value as well as to the channel clear function. Beside this, the assignment between input channel and function output can be freely selected. The output of channel clear can be made either individually for each channel or with a logical OR resp. AND combination. The limit values can only be assigned to a single channel, either with or without latching function. They switch on increasing levels. Exceeding of limit values can be signalled by means of switching contacts of the function outputs. Specifications of the function output options can be found in the technical data.

---
