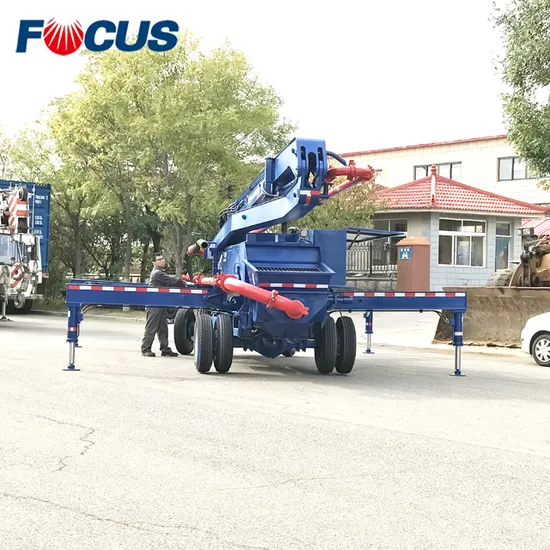

Concrete Pump Truck Mounted 21m Concrete Pump Machine for Sale

Product Description

China Concrete Pump Truck Concrete Pump Truck Mounted 25m Concrete Pump Machine For Sale

Items	Units	Parameters
		ZHBTB50-21-82R
Max. theo. concrete output (L./H.)	m3/h	60/36
Max.concrete pumping pressure (H. /L.)	MPa	11.7/7
Distribution valve type		S S Valve
Concrete cylinder diameter×stroke	mm	Ф200×1300
Hopper capacity×feeding height	L×mm	500×1300
Maximum cloth radius	m	21
Boom length	M	6
Elevation angle of the upper arm	°	90
Midarm length	m	5
Mid-arm elevation angle	°	180
Midarm length	m	5
Mid-arm elevation angle	°	210
Forearm elevation angle	M	5
Forearm elevation angle	°	235
Swing range	°	360
Rear		With brakes
Chassis suspension		√
Outlet diameter	mm	Ф150
Diesel engine model		Cummins
Electrical engineering power	kW	82
Rotate speed	r/min	2200
Circuit type		Open circuit
Pumping system pressure	MPa	31.5
Mixing system pressure	MPa	6-8
Capacity of oil tank	L	370
Max. aggregate diameter	mm	Slick scree: 50, Scree: 40
Inside diameter of delivering pipe	mm	Ф125
Dimensions:length×width×height	mm	7750x2200x3150
Total weight	kg	10800

Double open hydraulic loops (pumping hydraulic circuit is independent of distributing hydraulic circuit) with two pumps, makes the whole hydraulic system much simpler.
The reliability of the whole system is also much higher as well as the components'life is prolonged greatly.
Large valve changing direction, makes the main pumping loop quick response, small leakage, good stability,high reliability and high resist contaminative capability.
Hydraulic system has safe relief protection,at the same time,when the system pressure is over, the main oil pump cutting device makes itself be protected reliably.
Distributing hydraulic circuit adopts constant pressure pump, which can provide strong distributing pressure and economic energy control.
Cone sealing of all pipes make the pipe joints seal reliably.
The high-low pressure switch adopting cartridge valve of reduces the trouble of dismantling and installing the oil pipe.
Adopt emulsification technology of initiative and passivity recovery integration.
Allowed boom range of work
Our concrete pump trucks have been purchased, installed and operated all over the world:
Thanks for visiting, our concrete pump trucks have been delivered /distributed to the world, it'll be such a great honor if you can join us:

---
