Basic Info.
Type
Meter Milling Machine
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Certification
CE, ISO 9001
Worktable Travel
1300*360*500mm
Vertical Spindle Speed
60-1800rpm
Horizontal Spindle Speed
60-1750rpm
Overall Dimension
2050*2000*2000mm
Transport Package
Plywood Case
Packaging & Delivery
Package Size
210.00cm * 210.00cm * 200.00cm
Package Gross Weight
2500.000kg
Product Description
Product Description

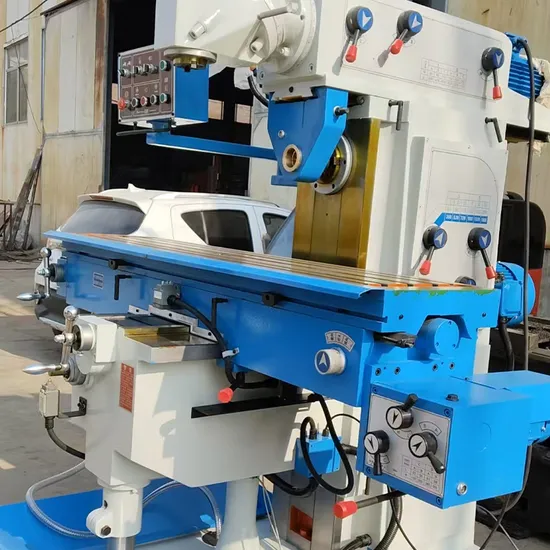

Vertical & Horizontal Milling Machine
X6436 universal rotary table milling machine is a general-purpose machine tool, mainly suitable for batch production, single-piece small batch production, mechanical processing departments, tools, and repair departments.
This milling machine can use cylindrical milling cutters, disc milling cutters, angle milling cutters, forming milling cutters and end milling cutters to process various planes, bevels, grooves, gears, etc. If you use universal milling heads, circular worktables, indexing heads and other milling machine accessories, you can expand the processing range of the machine tool.
Product Parameters
| Specifications | Units | X6436 |
| Table size(length × width) | mm | 1600*360 |
| Worktable travel | mm | 1300*360*500 |
| Vertical spindle | | ISO40 |
| Horizontal Spindle | | ISO50 |
| Number/Width/Distance of T-slot | mm | 3-18-80 |
| Distance between spindle axis and table surface | mm | 150-550 |
| Distance from horizontal axis center to table surface | mm | 0-400 |
| Vertical spindle speed | rpm | 60-1800 |
| Horizontal spindle speed | rpm | 60-1750 |
Worktable longitudinal travel speed (X axis) | Mm/min | 22-555 |
Worktable Transverse travel speed (Y axis) | Mm/min | 22-555 |
| Spindle rotation angle | | 360° |
| Ram travel | Mm | 500 |
| Spindle motor power | Kw | 4 |
| Feed motor power | Kw | 1.1 |
| Cooling motor | Kw | 0.09 |
| Overall dimension(L×W×H) | mm | 2050*2000*2000 |
| Weight | kg | 2500 |
Detailed Photos
Machine features
1) This machine tool mainly comprises a bed, a lifting platform, a worktable, a main transmission, a main speed change, a lubrication system, a cooling system and other parts.
2) The machine tool has sufficient power and a wide speed range, which can give full play to the efficiency of the tool and can use carbide tools for high-speed cutting.
3) The machine tool worktable can realize manual and motorized feeding in the vertical and horizontal directions respectively. A feed box powers the vertical and horizontal motorized feeding, and there are 8 feed speeds and 1 fast feed speed for feeding. The main transmission adopts gear transmission, which has high efficiency, large torque transmission, large speed range and wide selection.
Our Advantages
Packaging & Shipping
After Sales Service
1. The Operation Manual will be sent with the machine.
2. The spare parts will be provided freely during the warranty period.
3. The 24-hour online Service Team will help you solve the problems that you meet!
4. we also provide the after-service with video calls, videos, phone calls, online meetings, etc., to ensure you can use the machine better.
FAQ
1:How can I choose the most suitable machines?A: Please tell me your specifications. We can choose the best model for you, or you can choose the exact model. You can also send us the product drawing, and we will select the most suitable machines for you.2: What about the quality of the machine? And after-sales service?A: Our machine warranty period is 1-2 years, and we provide free technical service.3: What are your trade terms?A: EXW, FCA, FOB, CFR, CIF, DDP etc. are all acceptable.
4: What are the Payment Terms?A: T/T, 30% initial payment when ordering, 70% balance payment before shipment;5: What's the MOQ?A: 1 set
>>
