Basic Info.
Model NO.
30~150mm Inner Diameter
Paper Core Usage
Paintings Packaging, Instrument Package, Industry
Layers of Roll Paper
9 - 16
Wall Thickness of Paper Tube
5 - 10mm
After-sales Service
Online Service and Abroad Service
Thickness of Paper Tube Wall
9mm
Cutting Method
Circular Knife CNC Automatic
Gluing Method
Double-Sided Glue
Main Engine Power
2*3.7kw
PLC Controller
Special Products
Transport Package
Standard Packing for Sea Transport
Specification
4300*1500mm*1800mm
Trademark
YIDAFA PAPER MACHINE
Production Capacity
5 Sets Per Month
Packaging & Delivery
Package Size
2222.00cm * 222.00cm * 222.00cm
Package Gross Weight
3330.000kg
Product Description

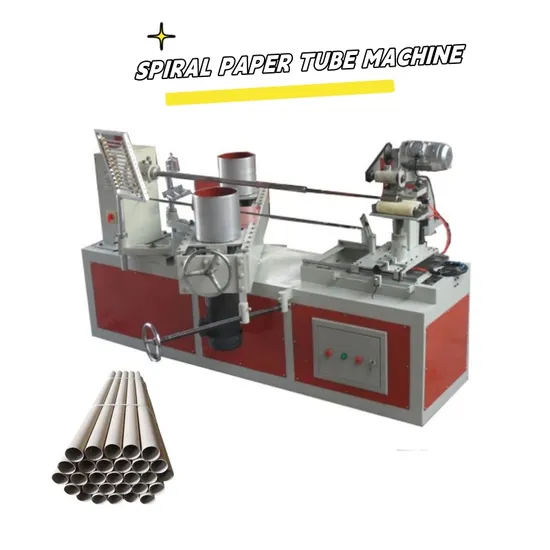

30~150mm Inner Diameter Spiral Cardboard Paper Core Tube Making Machine
Product Description Spiral cardboard paper cores with an inner diameter ranging from 30 to 150 millimeters are versatile and widely used components in various industries. These cores are primarily crafted from high-quality cardboard or paperboard, utilizing a spiral winding technique that results in a robust and stable structure. The following is a detailed definition of these essential components:
1. Construction Material: Spiral cardboard paper cores are typically made from recycled or virgin paperboard, ensuring both sustainability and strength. The paperboard is carefully selected based on its thickness, durability, and resistance to moisture and wear. 2. Manufacturing Process: The manufacturing process involves winding paperboard strips in a continuous spiral around a mandrel, creating a tightly wound and sturdy core. This technique allows for the production of cores with precise inner diameters, such as those ranging from 30 to 150mm. 3. Inner Diameter Range: The inner diameter of these cores is crucial as it determines their compatibility with various applications. The range of 30 to 150mm covers a wide array of uses, from textile yarn winding to industrial cable packaging. 4. Applications: These spiral cores find extensive use in the textile, packaging, and industrial sectors. They provide a cost-effective and eco-friendly solution for winding and storing a variety of materials, including yarn, wire, cables, and films. 5. Advantages: Spiral cardboard paper cores offer advantages such as lightweight, recyclability, and customizability. They can be tailored to specific requirements in terms of length, wall thickness, and end disc configuration, making them versatile and adaptable to diverse needs. Product Parameters
| Tube diameter | 20-150mm |
| Number of paper layer | 7layers |
| Tube max thickness | 9mm |
| Rewinding noses | 2 |
| Operator | 1-2 |
| Productive speed | 3-19m/min |
| Way of cutting | Pneumatic |
| Way of gluing | Double sides |
| Paper shaft type | Crisscross |
| Way of tube down | Withdraw |
| Power of mainframe | 7.5 kw |
| Power input | 380V3phare4wire 50Hz |
Detailed Photos
Certifications
Packaging & Shipping
After Sales Service Our servicepre-sale service
Accept your inquiry and organize a special technical seminar to discuss customer equipment requirements. Provide you with a detailed "Device Recommendation"
1. Equipment samples;
2.the latest technology and related equipment at home and abroad, the advantages and disadvantages of related manufacturers' products;
3.GMP process design, plant water and electricity layout;
4. mechanical equipment process design;
5. related product configuration, spare parts, packaging and after-sales service;
6. Determine the equipment and quotation by item.
Sale service
1. Keep in touch with you at all times, invite customers to visit the company and supervise production assembly.
2. prepare the equipment manual, file card and tracking card and other related software, accept your acceptance at any time.
3. Report the production progress of the equipment to the customer on a regular basis.
After-sales Service
1.One year warranty, lifetime service, 24 hours for you to open the after-sales service website, hotline and fax, if the user can not solve the technical problems, our company promptly send people to the user site to assist guidance;.
2. Spare parts inventory is long-term, vulnerable, consumable parts and important accessories, to ensure that customers respond to the first time.
3.Regularly return visits to each customer, once a year, and record the equipment records.
4.If the user needs to update the equipment or expand the construction project, we will provide free technical guidance,the replacement parts charge only the cost fee.
FAQ
FAQ:
1.How to install and maintain the machine?
Firstly, we will provide the installation guild with the machine for your reference.
Secondly, our company is responsible for training production workers for you, ensuring that the workers will be independent operation.
2.How can we get the matching accessories or wearing parts conveniently?
During the warranty, Our company can replace the accessories for free .Out of warranty,we can provide them at the preferable price. In fact, the wearing parts are standard parts that you could get it in your country at your convenience.
>>
