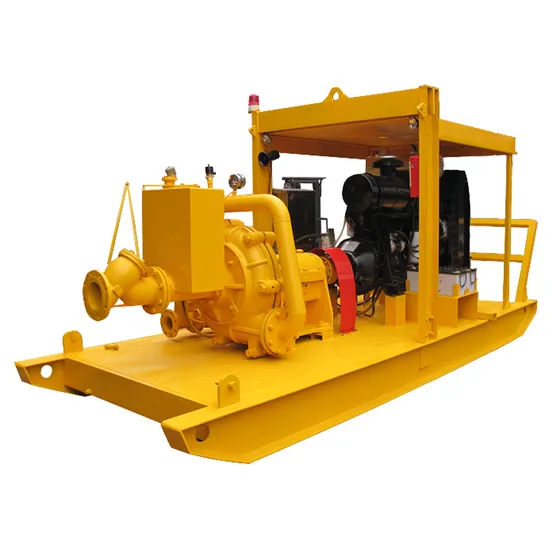

Horizontal Diesel Engine Sand Transfer Mortar Slurry Centrifugal Pump Price

Product Description

1.Product Description
DEFU MAH series pumps are heavy duty horizontal slurry pumps designed to handle the transfer of abraisive and high density slurries in minging and heavy industry. All MAH slurry pumps are designed to be interchangeable with the most common slurry pump footprints used by the mining industry.MAH pumps are manufactured using the highest quality materials to ensure reliability and extended service life in heavy duty applications.
2.Pump Technical Parameters
1.Max Flow:3600m3/h
2.Max Head:112m
3.Speed:Up to 3200rpm
4.Driven:Electric Motor Or Diesel Engine
5..Temperature:110°C.
3.Partial Models Specifications (More Information Pls Feel Free To Contact Us)

TYPE	Allowable Mating Max. power(KW)	Material		Clear Water Performance						Impeller
		Liner	Impeller	Capacity		Head(H)	Speed(n)	Max.Eff	NPSH	No.of Vanes	Impeller Dia.
				(m³/h)	(L/s)	(m)	(r/min)	(%)	(m)		(mm)
1.5/1B-MAH	15	M	M	12.6-28.8	3.5-8	6-68	1200-3800	40	2-4	5	152
		RU	RU	10.8-25.2	3-7	7-52	1400-3400	35		3
1.5/1C-MHH	30	M	M	16.2-34.2	4.5-9.5	25-92	1400-2200	20	2-5.5	5	330
2/1.5B-MAH	15	M	M	32.4-72	9-20	6-58	1200-3200	45	3.5-8	5	184
		RU	RU	25.2-54	7-15	5.5-41	1000-2600	50	2.5-5	5	178
3/2C-MAH	30	M	M	39.6-86.4	11-24	12-64	1300-2700	55	4-6	5	214
		RU	RU	36-75.6	10-21	13-46	1300-2300	60	2-4	5	213
3/2D-MHH	60	M	M	68.4-136.8	19-38	25-87	850-1400	47	3-7.5	5	457
4/3C-MAH	30	M	M	86.4-198	24-55	9-52	1000-2200	71	4-6	5	245
		RU	RU	79.2-180	22-50	5-34.5	800-1800	59	3-5	5
4/3E-MHH	120	M	M	126-252	35-70	12-97	600-1400	50	2-5	5	508
6/4D-MAH	60	M	M	162-360	40-100	12-56	800-1500	65	5-8	5	365
		RU	RU	144-324	40-90	12-45	800-1350	65	3-5	5	365
6/4S-MHH	560	M	M	324-720	90-200	30-118	600-1000	64	3-8	5	711
6S-MHH	560	M	M	468-1008	130-280	20-94	500-1000	65	4-12	5	711
8/6E-MAH	300	M	M	360-828	100-230	10-61	500-1140	72	2-9	5	510
		RU	RU	324-720	90-200	7-49	400-1000	65	5-10	5	510
10/8E-MM	120	M	M	666-1440	185-400	10-60	600-1100	73	4-10	5	549
10/8ST-MAH	560	M	M	612-1368	170-380	11-61	400-850	71	4-10	5	686
		RU	RU	540-1188	150-330	12-50	400-750	75	4-12	5
12-10ST-MAH	560	M	M	936-1980	260-550	7-68	300-800	82	6	5	762
		RU	RU	720-1620	200-450	7-45	300-650	80	2.5-7.5	5
14/12ST-MAH	560	M	M	1260-2772	350-770	13-63	300-600	77	3-10	5	965
		RU	RU	1152-2520	320-700	13-44	300-500	79	3-8	5
16/14TU-MAH	1200	M	M	1368-3060	380-850	11-63	250-550	79	4-10	5	1067
20/18TU-MAH	1200	M	M	2520-5400	700-1500	13-57	200-400	85	5-10	5	1370

4.Pump Structures
5.Pump Spare Parts
6.Applications(Show from Our Clients)
DEFU MAH slurry pump is widely used in metallurgy, mining, mineral processing, dredging,
de-watering, water treatment, coal washing, mill, cyclone feed, tailing, power, building material.
etc.various industrial sites.Exspecially for Mud,Mortar with big particle soild.
7.Our Services
1. Delivery: Delivery time will be on time as the contract. Usually, our company need 25 working days for diesel engine pump, and for bare shaft pump, it takes 15 working days,
2. Warranty: 12 month for the pump body, 3 month for the main working parts.
3. Package: We use plywood case to pack our pump, which is durable for ocean transport.
4. On-sales Service: we will clear show you everything in fact when you place an order with us. We will
take photos or videos to show you our production situation, and report the production situation to you.
5. Quality: we will test our pump before delivery, and we will follow up the pump working conditions per three months when the pump put into use. If you need spare parts, we can send to you in 1 or 2 weeks.
8.Our Factory
Welcome to visit our factory!
All My Striving,For Your Satisfaction.
*********************************************************************************************
Head Office: Wenzhou DEFU Machinery Co.,Ltd
Subsidiary Factory Name:Shanghai Y&L Pump Co.,Ltd
Mobile :+86-18042130095 Fax: +86-577-86553150

WebSite:defucc-machinery.en.made-in-china.com

---
