High Quality Linear Electric Popular Motion DC Motor

Product Description

high quality linear electric popular motion dc motor
Specification of high quality linear electric popular motion dc motor

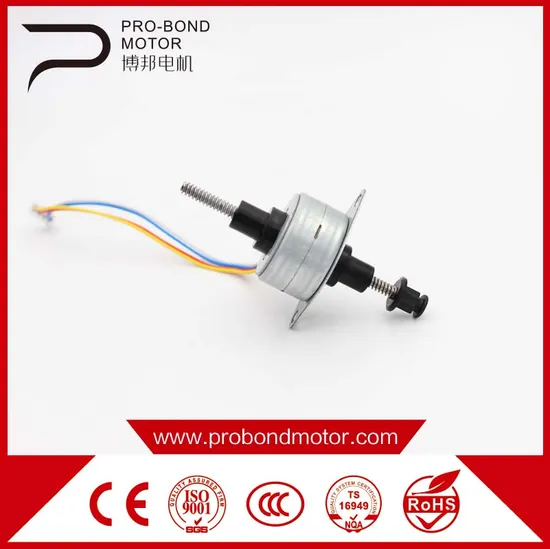

25BYZ-GT Linear Motor
Basic Information
Item			Data
Tem. Rise			50K max
Working Tem.			(-20ºC~+80ºC)
Insulation Resistance			100MΩ min 500VDC
Surge Test Level			500VAC for 1min
Insulation Class			E
Weight			50g

Specification
PN	Step Angle	Voltage	Phase	Current	Resistance	Inductance	Push Force	Start Frequency	Rotate Frequency	Push Distance	Step Length
	(°)	V DC		mA	Ω	mH	g(200pps)	pps	pps	mm	mm
25BYZ-GT	15	12	2	≤250	53	43	≥2	≥500	≥600	40	0.0417
	15	12	2	≤350	30	22	≥2	≥500	≥600	40	0.0417
	15	12	2	≤150	85	65	≥2	≥500	≥600	40	0.0417
	15	5	2	≤300	22	16	≥2	≥500	≥600	40	0.0417
	15	12	2	≤250	53	43	≥2	≥500	≥600	40	0.0508
	15	12	2	≤350	30	22	≥2	≥500	≥600	40	0.0508
	15	12	2	≤150	85	65	≥2	≥500	≥600	40	0.0508
	15	5	2	≤300	22	16	≥2	≥500	≥600	40	0.0508
