| US$9,500.00 | 1 set (MOQ) |

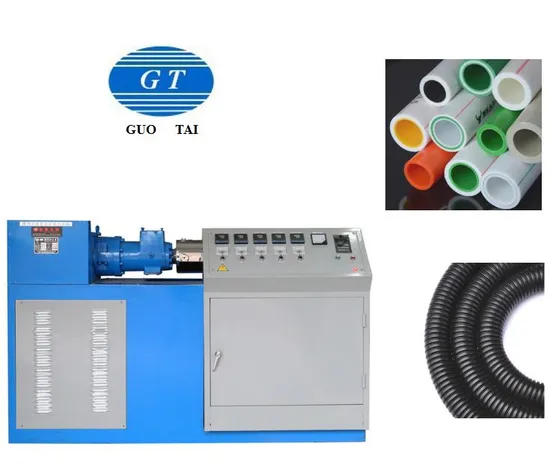

| Yuyao Guotai rubber and plastic Machinery Co. LTD Main products: plastic pipe extruder production line, plastic profile extrusion production line, wire/cable extrusion production line, plastic granulation unit and so on. Support to map to sample custom mold Welcome telephone consultation |
| ZLYJ 173 Hard face gear box Low noise, large bearing capacity, stable performance and so on. | |
| High quality nitride/alloy steel screw barrel Special alloy steel material, durable, precision machining and special heat treatment process. |
| model | uPVC63 | uPVC160 | |
| pipe range(mm) | 20-110 | 110-160 | |
| capacity(kg/h) | 100 | 150-200 | |
| center height(mm) | 1000 | 1000 | |
| single screw extruder | extruder model | SJ65 | SJ90 |
| screw diameter(mm) | 65 | 90 | |
| L/D | 25:1 | 25:1 | |
| Screw rotation speed(rmp) | 80 | 100 | |
| motor power(kw) | 22 | 37 | |
| heating power(kw) | 16 | 36 | |
| coolin blower power(kw) | 0.75 | 0.75 | |
| vacuum calibration tank | length of calibration case(mm) | 6000 | 6000*2 |
| vacuum degree(mpa) | 0-0.1 | 0-0.1 | |
| absorbing gas speed(m3/h) | 60 | 60*2 | |
| water pump power(kw) | 4 | 4 | |
| longitudinal moving motor power(kw) | 1.1 | 1.1 | |
| Spray cooling tank | length of spraying tank(mm) | 4000-6000 | 6000-8000 |
| water pump power(kw) | 4 | 5.5*2 | |
| haul off machine | driving power(kw) | 2.2 | 4 |
| max pull(N) | 7000 | 12000 | |
| effctive haul off length(mm) | 1500 | 2000 | |
| Pneumatic blade type cutter | blade diameter(mm) | 350 | 500 |
| driving power(kw) | 1.1 | 1.1 | |
| working air pressure(mpa) | 0.7-0.7 | 0.7-0.7 | |
| stacker | length(mm) | 6000 | 6000 |
