High Speed Fishing Net Machine Model Zrs22-345X Fro Making HDPE Twisted /Braided Nets

Product Description

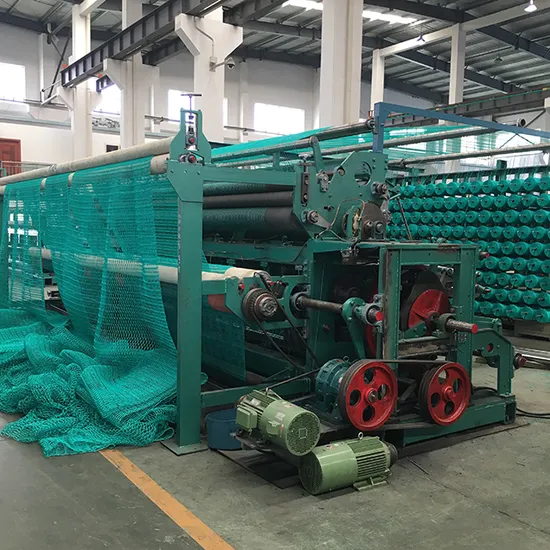

Fishing net machine
1 High-speed operation, high efficiency
2 Big spool, large amount of weft twine

Model		ZRD19-270X	ZRD21-230X	ZRD25.4-210X	ZRD28.25-185X	ZRD32-160X	ZRD35-150X	ZRD38-138X
Knot type		D	D	D	D	D	D	D
Pitch (mm)		19	21	25.4	28.25	32	35	38
Width(number of meshes)		270	230	210	185	160	150	138
Spool diameter (mm)		300	300	300	300	300	300	300
Twine applicable	Nylon monofilament(mm)	0.5-0.9	0.52-1.0	0.6-1.2	0.7-1.4	0.7-1.5	0.7-1.6	0.8-1.8
	Nylon monofilament(mm)(mm) S	210/21-72	210/24-105	210/27-126	210/42-147	210/48-168	210/60-273	210/150-546
	Nylon monofilament(mm)(mm) D	210/21-36	210/24-51	210/27-63	210/42-72	210/48-84	210/60-135	210/150-273
	PE twine denier/ply S	380/15-33	380/15-45	380/18-57	380/21-72	380/24-93	380/33-126	380/80-162
	PE twine denier/ply D	380/15	380/15-21	380/18-27	380/21-36	380/24-45	380/33-63	380/80-380/231
Mesh size (mm)		30-300	33-300	40-300	48-300	52-300	58-300	380/80-81
Rotative velocity (r/min)		14-18	14-18	14-16	11-15	11-14	11-15	11-15
Motor power (kw)		5.5	5.5	5.5	5.5	5.5	5.5	5.5
Outline size	Length (mm)	8193	8080	8384	8270	8193	6892	6892
	Width (mm)	4220	4220	4220	4220	4220	4220	4220
	Heigth (mm)	2305	2305	2305	2305	2305	2305	2305
Weight (KG)		17800	17000	18000	18000	17800	11800	11800

Model	ZRS22-345X
Knot type	single knot
Pitch	22mm
No of shuttle	345
Spool dia	300/330mm
Nylon multifilament	210d/24-150ply
HDPE twine	380d/15-66ply
Mesh size	33-300mm

Company Profile
Yangzhou Haili Precision Machinery Co., Ltd(Yangzhou Haixin Textile Machinery Co., Ltd).Now we are the largest
professional manufacturer of fishing net machine,lengthway &depthway fishing net stretching machine,auxidiary
equipments &spare parts in China.It has been engaged in this field for more We have more than 90 series fishing net
machines such as ZRD/S-Y, ZRD/S-N,ZRD/S-X,ZRD/S/U-F, ZRD/S/U-A, ZRS-H and so on.Our products have been
exported to Germany, Japan, Spain, Thailand, Vietnam, South,Korea, Africa and other countries . We warmly welcome
customers and friends by local and abroard to visit and guide, look forward to your cooperation .
1.Machanical brake
2.We put our own new design for the machanical brake to make the quality nets especially for the tight knots
3.Japan Toyota brand Hydraulize Brake(4 cylinders)
4.We put Japan Imported NSK/NTN into the main shaft,which will be used for long time
5.Taiwan Teco Brand Main Motor

---
