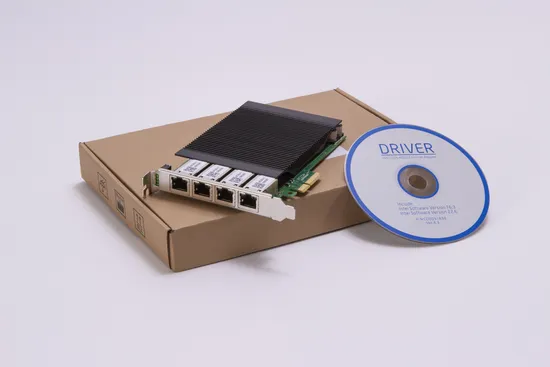

High-Speed Quad Port Copper Ethernet Card with Poe Support

Product Description

MSS-APOE4 Specifications Company Name: Shanghai Mss International Trade Co., Ltd. Product Name: Quad Port Copper Ethernet Card with PoE Keywords: Quad Port Ethernet Card, Copper Ethernet Card, PoE Ethernet Card, Gigabit Ethernet Card, Industry PoE Card, 4 Port PoE Card, Microscope Ethernet Card, Microscope Accessories, Network Card, Wireless Ethernet Card, Copper PoE Card, Quad Port Gigabit Card, PoE Network Card, Quad Port Copper Ethernet, Industry Ethernet Card, Gigabit Network Card, 4 Port PoE Ethernet, Microscope Network Card, Ethernet Card with PoE, Copper Ethernet Network Card, Quad Port Industry Card, Gigabit Ethernet Network Card, Quad Port Copper PoE
Product Description Introducing the single-port PoE adapter card from Shanghai Mss International Trade Co., Ltd. This powerful adapter card is designed to meet the reading habits of English-speaking natives, providing a seamless experience for users.
1. Single-port PoE output power consumption up to 30W, allowing for efficient power supply replenishment. The adapter card also features an external large 4Pin power supply replenishment interface, ensuring uninterrupted power.
2. Adaptive power consumption output for external devices: Class 0, Class 1, Class 2, Class 3. This versatile feature allows for compatibility with various devices, providing optimal power output.
3. The adapter card adopts a wider RJ45 pitch design, enhancing convenience and ease of use.
4. The interface is specially designed for industrial cable access, providing a secure and stable connection. It effectively solves the problem of unstable connection between the network port and cable in industrial places. The adapter card is also compatible with common cable access.
5. The larger heat sink ensures efficient heat dissipation, even in poor heat dissipation environments. This guarantees the stable operation of the adapter card for extended periods.
6. Carefully selected thickened gold RJ5 connectors ensure secure and reliable connectivity, minimizing the risk of disconnections.
7. The 4 8-pin RJ45 head design saves valuable PCIe slot resources on the motherboard, optimizing space utilization.
Experience the power and reliability of our single-port PoE adapter card. Order now and enjoy seamless connectivity for your devices!
Company Name: Shanghai Mss International Trade Co., Ltd.

Features
Controller	Intel I350
Cable medium	Copper cable
Cable Types	Cat 5E and Cat6:1000Base-T up to 100m (POE power supply requirements Cat5) Cat 5E and Cat6:100Base-T up to 100m (POE power supply requirements Cat5)
Bracket	Full-height Bracket
Thermal design power consumption (max)	5W
Single-port PoE output power consumption(max)	30W
Connector	4*1G RJ45
PCIe Bus Type	PCIe v2.1 x4 , compatible with x8 , x16
Rate	10/100/1000Mbps
Operating system support	Windows XP/Vista/7/8/8.1/10/11 Windows Server 2003 R2/2008 R2/ 2012 R2/ 2016 R2/2019 R2/2022 R2 Linux Stable Kernel version 2.6.x/3.x/4.x or later; Linux CentOS/RHEL 6.5 / 7.x or later Ubuntu 14.x/15.x/16.x or later FreeBSD 9 / 10 / 11 or later VMware ESX/ESXi 2.6.x/3.x/4.x/5.x or later

Technical Features
IEEE Standard	IEEE802.3af -2003 PoE standard IEEE802.3at -2009 PoE standard IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3z IEEE 802.1Q VLANs IEEE 802.3x IEEE 1588 IEEE 802.3az - Energy Efficient Ethernet (EEE)
PCI-SIG* SR-IOV	Yes
Jumbo frame packet	Yes
VMDq	Yes
WOL	Yes
PXE	Yes
DPDK	Yes
FCoE	No

Environment Features
Operating Temperature	0°C to 55°C (32°F to 131°F)
Storage Temperature	-40 to 85 (-40 to 185 )
Storage Humidity	90% non condensing under 35°C

LED Indicators
LED	1000Mbps, Orange bright + Green flashing
	10/100Mbps, Green flashing

Physical Features
PCB Size (mm)	149*104.3*1.6
weight (g)	251g

Order Information
M/N	Description
LRES2004PT-PoE	PCIe x4 1G Quad Port Copper Ethernet PoE Server Adapter
PS: The above details is just for reference,if there is any change,no inform will have.
