Basic Info.
Material Processed
Plastic Bottle
Computerized
Computerized
Certification
ISO9001:2008, CE
Product Name
Waste Plastic Baler Machine
Type
Scrap Paper Plastic Rubber Baler
Packaging Material
Plastic, Paper, Rubber, Metal,Bottle
Transport Package
Customize
Production Capacity
5 Sets/M
Product Description
Product Description

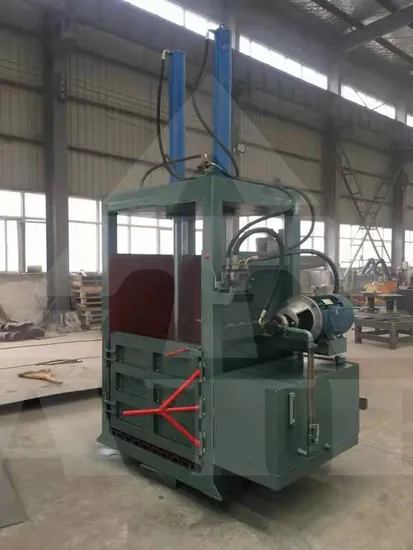

1,Vertical hydraulic baling machine is used to compress and pack loose materials.
2,The density of the baling block is high and the overall size is uniform, making it an ideal choice for all kinds of manufacturing factories, material recycling stations and renewable resource recycling companies.
Product Features
1,This type Baler Machine is general purpose, can be used to press and packing a lot of material Science;
2,Machine pressure can be customized, pressure bigger then bale will stronger;
3,Feeding door lifting automatic,lowering the labor density and cycling time;
4,Automatic control model ,more efficiency;
5,Alarming light hint under working state.Instant stopping button with separate installation is obvious to find and safer while operating;
6,Baler Ejection Method: Hanging chain for convenience and rapidness instead of the original cumbersome artificial baler ejection way;
7,Peculiar combination of motor and pump with direct-crossed connection makes sure 100 percent concentric, replacing the common coupling connection and extending pump's using life;
8,Mainly used to packing waste paper/carton/cardboard ,PET bottle,plastic,sponge etc.Mainly used in restaurant ,supermarket,recycle bin,factory etc.
Product Parameters
Model
| 80
| 100
| 120
| 140
| 160
|
Tonnage Pressure
| 80T
| 100T
| 120T
| 140T
| 160T
|
Blade Weight
| 300kg
| 450kg
| 600kg
| 800kg
| 1000kg
|
Feeder
| 4*80m
| 4*80m
| 6*1.2m
| 6*1.2m
| 8*1.2m
|
Filter System
| Double Layer Filtration
|
Power
| 15kw 2.2kw
| 15kw 3kw22kw
| 22kw 3kw
| 22kw 3kw
| 30kw 5.5kw*2
|
Hydro-Cylinder Diameter
| 200mm
| 200mm
| 230mm
| 245mm
| 273mm
|
Feeding port
| 1.4m
| 1.4m
| 1.8m
| 1.8m
| 1.8m
|
Bale size
| 140*70*70cm
| 140*110*85cm
| 140*110*85cm
| 150*110*85cm
| 180*110*85cm
|
Gate lock type
| Hydraulic locked
|
Fetric Control Type
| PLC(Auto/Semi/-Auto)
|
Product Application
Our Advantages
Our Advantage
1,All models are hydraulically driven, and can be controlled manually or automatically by PLC.
2,No foot screw is required for installation, and diesel engine can be used as power in places without power supply.
3,The methods of bag delivery include turning, side pushing, front pushing and manual bag taking.
4,The size of the feeding box and the shape and size of the packing block can be designed and customized according to the specifications of the user's raw materials.
Company Profile
FAQ
Q1: Are you a factory or a trading company?A1: We are a professional manufacturer in China, passed Made In China field certification.Q2: How long is the warranty period?A2: Normally 12 months. Except for wearing parts.Q3: What's your delivery time??A3: We will arrange for shipping in factory within 15 working days after receiving the advance payment. We provide the entire waste sorting line, including factory design, circuit routing, equipment placement, etc. Please feel free to contact us for details. Welcome to factory to discuss business cooperation.
>>
