Farm Equipment Tractor Pto Drive Large Round Roller Hay Baler

Product Description

Customized OEM farm machinery tractor mounted Big Round Hay Baler
We are a top leading manufacturer of big round balers. 95% of machine parts are self-made, and a complete set of quality control system guarantee that our quality of balers must be controlled well.

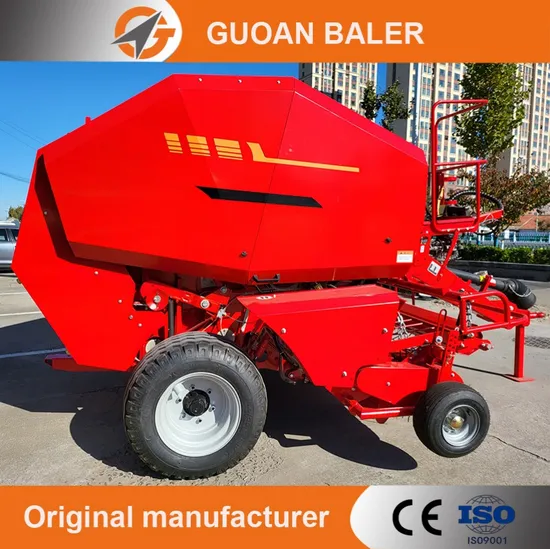

Guoan 2200 Large round baler
1. 2200 big net wrap round baler is used for picking up forage, wheat straw, and cornstalk, then make into large bales.
2. It is suitable for all kinds of natural grassland and farmland operations, as well as manual or other feeding methods for fixed operations.
3. The utility model can automatically pick up the grass strips laid in the field, and bundle the scattered forage and straw into a round straw bundle with neat shape through conveying feeding, rolling forming, rope net binding, and other operating procedures.
4. The machine is used with a wheeled tractor with a capacity of more than 75 kW (100 hp).
5. It is operated by one tractor driver, and is suitable for all kinds of natural grassland and farmland operations, as well as manual or other feeding methods for fixed operations.
Specification of 2200 large round baler

Model	2200 large round baler
Type	traction type
Dimensions	4.5X2.66X2.35M (L x W x H)
Weight	4050kg
Supporting power	≥100HP (73.53Kw)
Picking up width	2300mm
Bale density	≥150Kg/m3
Round bale size	1250×1300mm(Dia*L)
Bale weight	250kg
Productivity	≥12t/h
Number of rollers	≥18
Picker lifting adjustment range	≥200mm
Picker spring teeth form	no cam disc or trackless disc
Picker adjustment method	hydraulic lifting
Profiling method	floating spring
Monitoring device	with electronic counter

Our Advantages

1. The sprocket is made of high-quality alloy steel through multiple processes and has high wear resistance.
2. With specially customized high-strength chains, it effectively reduces the maintenance time of the whole machine.
1. The fully automatic thin oil lubrication device ensures the smooth operation of the chain transmission system of the whole machine and extends the service life.
2. The dry oil lubrication system adopts a centralized oil supply method, which can fill 36 roller bearings with grease in a short time.
1. The heavy-duty knife roller works with 17 alloy knives to cut the straw into different lengths according to different requirements.
2. It can be operated from the cab.
1. The hydraulically adjustable bottom silo has a certain floating capacity and automatically adapts to the flow of crops passing through.
2. And in the case of large flow of crops or blockage of foreign objects, the alarm will be timely and cleaned up.

Other Machines
We also have:
1. Mini net wrap round balers: 850N, 850FN, 870N, 870FN, 1070N, 1070FN, 1090N, 1090FN mini net wrap balers.
2. Mini twine round balers: 850, 850F, 870, 870F, 1070, 1070F, 1090, 1090F mini balers.
3. Hay Rake: 9LD-2.5 rotary hay rake, 9LD-3.0 rotary hay rake, 9LD-4.0 rotary hay rake, different models for options.
4. 2200 mini Square balers, whose heavy-duty knotters adopt German technology and it has a Dust removal system.

Company Profile
1. With excellent quality, we have been supplying agricultural parts for FOTON and LOVOL for more than 20 years, which is one of the biggest agricultural machine companies in China.
2. We are good at making high-quality castings, and all the baler parts are produced by ourselves except rubber, plastic, bearing, pump parts. A complete set of quality control system guarantee that our quality of balers must be controlled well.
3. Specializing in the production and export of balers, maintaining the variety of balers diverse, such as mini twine round balers, mini round balers, square balers, large net round balers, and other products to meet different market needs.
4. Customers have a better user experience because of our innovative designs of machines, and we develop 2-3 new products every year to help customers gain more market shares.

FAQ
1. How many horsepowers of the tractors can match with the mini round hay baler?
Our mini hay baler has 4 models: 850/870/1070/1090(each has two types: normal model, model F), just need the tractors with 25-50hp, PTO rear drive output needs 540r/min.
2. How about the bale sizes of the 4 model hay bale?
850 (50*70cm), 870 (60*70cm),1070 (70*100cm), 1090 (90*100cm).
The density of the bales is adjustable, if using normal models to make bales, we suggest containing no more than 20% moisture.
To store the small silage bales, we recommend you buy a hay wrapper.
3. There are many unqualified round balers in the market, how can you make sure your quality control?
We have CE, ISO certificates, 30 R&D persons, our balers are produced in strict accordance with international standards.
4. Is there anything special about your mini round balers?
Yes, we have unique designs to reduce the round hay baler working failure rate. And we can offer both twine round balers and net wrap round balers, so that meet your different needs.
5. How about your design ability? Do you offer OEM service?
OEM is acceptable and we offer a confidentiality agreement business secret contract for your design safety.
6. Can I place one small order for the first time to test the quality?
Small order(One set) is available, and we offer new customers a 1% discount for the first order and offer free machine parts.
7. How to place an order and pay?
After you decided to buy, a proforma invoice with our bank information will be sent to you. You can go to your bank and arrange T/T international wire transfer of deposit according to it. After we receive the deposit, one set of baler can be ready within 7 days, and then we will dispatch it to the port and ship by sea.

---
