Q1313 Chinese Horizontal Manual Metal Pipe Thread Lathe

Product Description

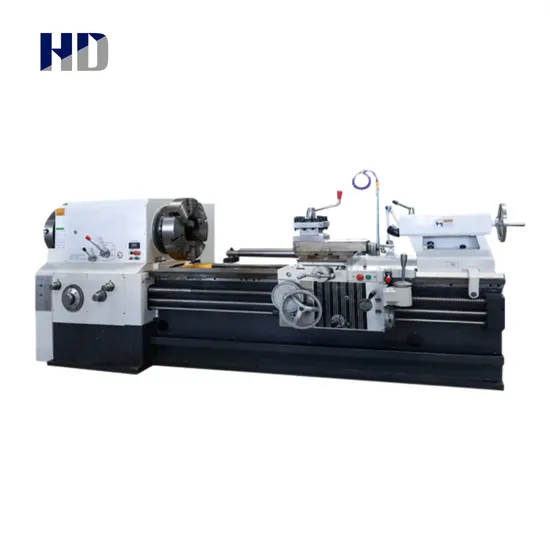

Product Picture
Specification Parameter

Specification	Unit	Q1313	Q1319	Q1322
Max. swing over bed dia.	mm	630	630	670
Max. swing over cross slide dia.	mm	340	340	380
Max. length of workpiece	mm	1500/3000
Width of bed	mm	550
Spindle bore	mm	135	200	225
Power of spindle motor	kw	11
Spindle speed	r/min	FWD 18 steps , 12-642	FWD12 steps, 36-380	FWD12 steps, 36-380
Z axis feed range	mm/r	26/0.07-1.33	26/0.07-1.33	26/0.07-1.33
X axis feed range	mm/r	22/0.02-0.45	22/0.02-0.45	22/0.02-0.45
Cariage rapid traverse speed	mm/min	4000
Cross slide rapid traverse speed	mm/min	2300
Metric thread range	mm	52/1-224	24/1-14	24/1-14
Inch thread range	T.P.I	40/2-28	40/2-28	40/2-28
Traverse of cross slide	mm	320
Max. traverse of turret	mm	200
Tailstock quill travel	mm	205
Tailstock quill dia.	mm	Φ100 / Morse 5
Chuck	mm	Φ380 3 jaw manual	Φ520 four jaw manual
Overall dimension	mm	3657*1360*1480	3657*1360*1555	3657*1449*1480
Net weight	T	4.2	4.5	4.8

Company Profile
Dalian Haidi Machinery Co.,Ltd is a professional manufacturer that specializes in the development, research and production of single-column vertical lathe, double-column vertical lathe, horizontal lathe, radial drilling machine, slotting machine, boring-milling machine, machining center, customized special machine tool, and other equipment. The researched products by our company have such advantages as a great variety, complete specification, advanced technology and outstanding quality.
Our company, founded in June 2007, has a registered capital of RMB 60 million Yuan and covers a building area of 30,000 square meters. Now we have more than 200 staff members, including 11 senior engineers, 8 senior managerial staff,over 160 technical workers.
Our own casting factory was established in 1983 and has an annual output of over 20,000 tons. Our company is the largest enterprise that specializes in the casting of machine tool in southern Liaoning.In the meantime, it has offered great support to speed up our company's product research and production and made great contribution to making sure products are supplied to customers in the shortest duration.
Our company follows the principle of "independent innovation, govern enterprise by good virtue and prosper enterprise by good faith". We shall work hard persistently to make innovation and breakthrough and strive to become a first-rate enterprise. We would like to work hand in hand with all our friends toward a brilliant future.
Certifications
Packing&Shipping
FAQ

---
