Automatic Egg Tray Production Line for Fruit Tray/Egg Carton

Product Description

Automatic Egg Tray Production Line For Fruit Tray/Egg Carton
Egg Tray Machine Introduction:
It is used for making large quantity easy shape products, like paper egg tray, fruit tray, coffee cup carrier tray, bottle tray, wine tray, egg carton with lid, disposable medical products and industrial packaging products etc. Paper Egg Tray Machine Capacity: 350pcs/h, 700pcs/h, 1000pcs/h, 1300pcs/h, 1800pcs/h, 2000pcs/h, 2500pcs/h, 3000pcs/h, 4000pcs/h, 4500pcs/h, 5000pcs/h, 6000pcs/h. Product Type: Egg Tray Machine Process Type: Paper Pulp Molding Production Raw material: waste paper, waste cardboard, newspapers etc. Any type waste paper without plastic. Boiler fuel heating type: diesel, coal, natural gas, or LPG Power Requirement: 20KW-220KW Voltage needed: 220V-440V Workshop requirement: 100--850m2 Machine Model: WY350--WY6000 Workers Requirement: depends on different capacity machine Brand Name: Wanyou Origin Place: Shandong, China After-sales service system: Engineers are available for dispatching abroad to install the machine Certificate: CE 1. Egg Tray Machine Pulping System
including the hydrapulper, pump, water tank, pulp tank, mixer, etc..to make the wastepaper into paper pulp.
2. Egg Tray Molding Forming System :

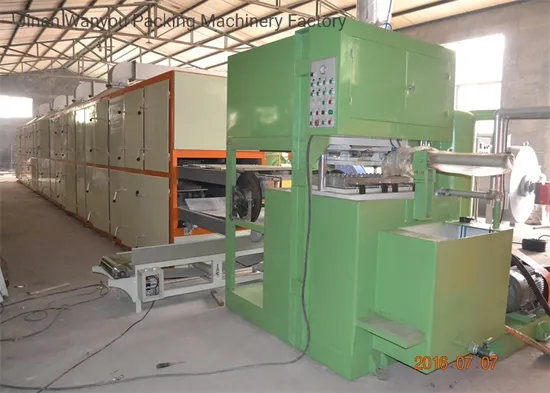

Egg Tray Machine Forming system Air Compressor, Vacuum Pump, Motors including the molding machine, molds, vacuum pumps, air compressor and electrical controller to make the pulp into wet trays.
3. Drying system of egg tray machine:
There are burners and blowers on the two sides of the drying line. Burner creates the hot air and the blower increases it. There will be hot air mouth in the drying line also blow the hot air. The drying line is protected by the insulation board. The temperature inside the oven can reach 200 degree.
4. Egg Tray Automatic Stacking Machine:
After drying line ,the egg trays go to the automatic counting and stacking system. You can preset the quantity of one pile ,such as 100pcs or 200pcs, when the quantity no is done, the counting device will be alarmed. And the products stacked at the same time. You can packaged them directly .
Certificate of egg tray machine
End Products Of Paper Egg Tray Production Line
Paper egg trays are the end products of egg tray plant. Egg trays are good protection shell for eggs during transporting and storage. Usually, the egg trays has 30 holes. Esle, there are 10 holes egg trays, 12 holes egg trays, 24 holes egg trays etc. What's more, if you change the mould, the machine can be used to make apple trays, egg cartons and so on.
Raw materials to make egg trays: original wood pulp, craft paper, A4 paper, paper box, old newspaper, old books and other kinds of recycled papers.
Delivery
Technical Specification of All Model Paper Egg tray machine

Egg Tray Mold Quantity		1pcs	2pcs	3pcs
Raw material		Waste paper	Waste paper	Waste paper
Egg tray Capacity(pcs/hour)		350	700	1000
Net weight per piece (gram)		70-75	70-75	70-75
Waste paper consumption		0.025ton / h	0.06ton / h	0.1ton / h
Water Consumption		0.075ton / h	0.15ton/h	0.22ton / h
Natural Gas Consumption of Dryer		12cbm/h	25cbm/h	45cbm/h
Boiler model (natural gas fuel Kcal)		200*103	300*103	450*
Worker requirement		2-3workers	3-4workers	4-6workers
Power Requirement	Without dryer	20KW	30KW	40KW
	With dryer	30KW	45KW	60KW
Area of workshop	Without dryer	More than100M²	More than 100 M²	More than 120 M²
	With dryer	More than200 M² Dryer-12M	More than 240M² dryer-16M	More than300M² Dryer-16M
Container Requirement	Without dryer	20ft*1	20ft*1	40ft*1
	With dryer	40ft*2	40ft*2+20ft*1	40ft*3
Remarks: 1. The Capacity calculated base on 30-packed egg tray(size 300x300mm, weight 70g~75g). 2. Workshop size is for reference only and could be adjusted according to actual size of client's plant. 3. The above specification is for reference only, due to continuous technology development, data will be updated from time to time. 4. Pulp Molding Equipment are non-standard equipment, we are able to provide customized solution according to specific requirements from customer. 5. Welcome to contact us anytime, our professional team will provide more effective help and supports for you.

Payment Terms (Small capacity egg tray machine model)
Trade terms	FOB
Quotation Validity time	Within 30days
Delivery time	About 35 working days after receiving the deposit.
Payment term	BY T/T 40%DEPOSIT+60%BALANCE.
Time of payment	When the deposit is paid, the machine will begin to be produced. And the balance should be paid by the consignee (the buyer) before the delivery.
Warranty time	Two years after the Egg tray machine received.
TERMS OF DELIVERY	FOB Qingdao Port, China
Package	In container
Certification	CE

Wanyou Paper Egg Tray Machine Advantages:
1. 2 years of warranty for whole egg tray machine line
2. with computer software
3. Germany-made valves
4. easy to be installed and operated
5.High automation, low labor cost.
6.Low production cost
7.Energy saving(by 30%-50% compared with other manufacture)
8.Water saving(complete water treatment system equipped)
9.Efficient Multi layer dryer, saving space(by 33% compared with traditional dryer)
10.Stable final product quality(same weight, same dimension,strong and good look)
FAQ:
Our productionline has Fully Automatic and Semi Automatic two types , both have computer control system .
1. What is Semi Automatic type ?
If only order The 1st and 2nd compulsory parts , that's Semi Automatic because you'll have to do the work of drying up egg tray manually;
2. What is Fully Automat type ?
Meaning: the production line includes the Drying system and the whole procedure can be done Automatically .
Of course, the price and the required work space would have big difference from the semi-automatic type.
3. Quality
--- Our machines use UK Technics and part of the components are Germany-made (ex: Ball valve) .
-- Our machine is made by Tooling NOT by Welding , insuring a minimum of 10 years' lifespan .
-- The Egg tray moulds material is Aluminium which can keep the fixed shape much better than that made of rubber material.
--- 99.9% of Success rate: Even if there is a failed egg tray , just throw it back to Pulping area and it can be re-used avoiding waste ;
--- Our machine has been sold to worldwide for over 10 years with continued re-order by some customers with their business grow .
4. What kind of material we can use as the raw material?
Any kind of waste paper like old newspaper,magazines,books,A4 paper etc, and easy to get
5. What kind of Fuel can be used for the whole production line?
Coal, natural gas, and diesel oil, LPG, Wood.

6. What kind of products can be made by this machine?

All paper package such as paper egg tray, egg carton,egg box, fruit tray, bottle tray, cup tray, consumer product package, medical disposable container etc.

7. Are you a manufacturer?

Yes, Jinan Wanyou has been fabricating pulp molding machine since 2008. We are one of the most important pulp molding machine manufacturer in the world, and we are famous pulp molding machine manufacturer in China, providing high quality and production capacity pulp molding machinery at reasonable prices to the world.
Our Services

(1)Technical consultation ;
(2)Detailed design of customer workshop ;
(3)Installing and testing the whole production line before shipment;
(4)Training engineers and workers;
(5)Supplying spare part for long time;
(6) Online services anytime.

---
