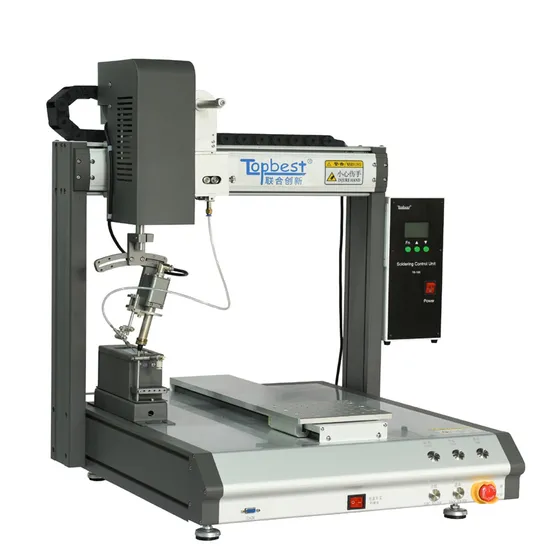

Automatic Soldering Robot for Selective Soldering Process with Cheap Price

Product Description

Specifiation

Model	TBS-T-441R
Machine Size	750*650*880MM,Packing size:850*750*1000MM
Weight&Packing	120KG,Plywood Packing,total 120KG
Power supply	AC110V/220V, 50HZ/60HZ
Air pressure requirement	0.4 to 0.8 Mpa
Move speed	X,Y 600-800MM/S,Z 400MM/S
Control System	Teach pendant
Driving mode	precision stepping motor+ synchronous belt
Repeated precision	+/-0.02MM
Temperature control range	0-550C°
Heating power	150W
Temperature control accuracy	+/-1C°
Soldering Method	Point Soldering/Drag Soldering
Iron Tip Cleaning	Automatic Air cleaning
Max. load	15KG
Work environment	Temp 0~40ºC,Humidity 20%~95%

Functions&Advantages
Cost saving:High-efficiency operation is achieved by only one person.one person's efficiency amounts to 3-5 persons' efficiency.
Good quality:Good soldering uniformity achieved high yield
High efficiency:Multiple soldering tips work together at the same time to achieve high efficiency
More simple:One worker can operate 2-3 robots.what this worker does is only pick and place fixture
Customization:Robot is strictly customized based on customers' requirements on products and soldering production,in line with requirements of production lines
Good image:Intelligent automatic equipment presents a new appearance of production line in factories,which helps enterprises establish a image of high technology
Certificate Display
Customer Visit
We have own factory and skilled workers,rich-experienced design team and good after service. We are a professional sales team with high efficiency, and endeavoring to provide satisfactory services to every of our customers as always.
Nearly every day from customers and abroad come to our factory, we arrange technicians to show the machine operation. Free training is available. Warmly welcome you to visit our factory!

---
