US$1.21-1.59
|
1 Piece
(MOQ)
|
Basic Info.
Cooling Method
Dry-type Transformer
Winding Type
Auto-transformer
Certification
ISO9001, CE/Rosh
Usage
Single-phase Transformer, Power Transformer, Distribution Transformer
Frequency Characteristics
Low Frequency
Primary
110V/220V/230V/380 AC
Secondary
Single/Double 6V/9V/12V/15V/18V/24V
Operation Temperature
-30ºC to +70ºC
Dielectric Strength
3.75kv/1min
Encapsulation
Vacuum Epoxy Encapsulated
Specification
33mm*28mm*29mm
Production Capacity
7000 PCS / Day
Product Description

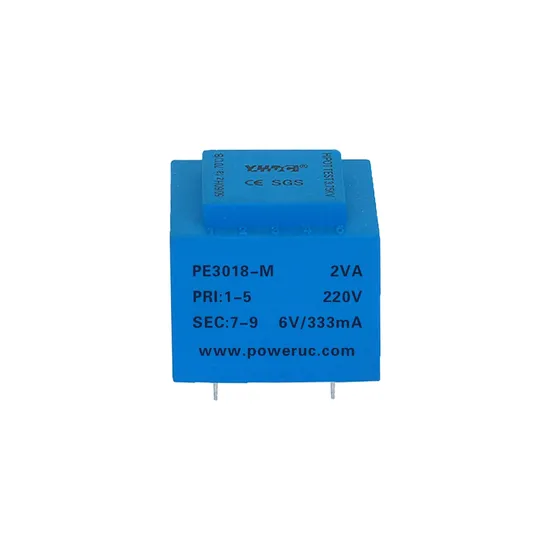

YHDC PE3018-M 2VA EI30 series pcb mounting type power transformer
Brabd : YHDC Model : PE3018-M
Power : 2VA
Primary voltage : 110V/220V/230V/380V AC
Secondary voltage : single : 6V/9V/12V/15V/18V/24V AC
double 6V*2/9V*2/12V*2/15V*2/18V*2/24V*2 Characteristic 1. Vacuum epoxy resin encapsulated,100ºC /6 hours high temperature aging, long woking life 20 years and with high delectric strength
2. High quality H18 laminated silicon steel, low temperature rise, high efficiency
3.PBT engineering plastic, environmental protection, flame retardant, 120 degrees no deformation
4. Reasonable structure, convenient installation, low noise, strong seismic, sealed waterproof, moisture-proof Technical index Mounting type:PCB
Flame resistance :UL94-V0
Insulation class:B Operation temperature:-30ºC~+70ºC Work frequency:50Hz~60Hz
Dielectric strength:Pri./Sec. 3.75KV 50Hz 1min 5mA, Sec/Sec 500V 50Hz 1min 5mA Electrical parameters (The following parameters are typical values and actual values will be subject to product testing)
| Primary voltage | 110V/220V/230V/380V AC |
| Primary voltage range | +/-10% |
| Voltage regulation | ≤25% |
| Power | 2VA |
| Temperature rising | ≤16ºC |
| No Load Loss | ≤0.5W |
| Weight | 115g |
Standard output parameter table: (Factory test is based on the full-load votage )
| Secondary voltage | Secondary No load voltage | Secondary full load voltage |
| Single | double | Single | Double | Single | Double |
| 6V | 6V*2 | 8V | 8V*2 | 333mA | 166mA*2 |
| 7.5V | 7.5V*2 | 10V | 10V*2 | 266mA | 133mA*2 |
| 9V | 9V*2 | 12V | 12V*2 | 222mA | 111mA*2 |
| 12V | 12V*2 | 16V | 16V*2 | 166mA | 83mA*2 |
| 15V | 15V*2 | 20V | 20V*2 | 133mA | 66.5mA*2 |
| 18V | 18V*2 | 24V | 24V*2 | 111mA | 55.5mA*2 |
| 24V | 24V*2 | 32V | 32V*2 | 83mA | 41.5mA*2 |
Data sheet
>>
