US$60,000.00-70,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Process Usage
Metal-Cutting CNC Machine Tools
Movement Method
Linear Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
Economical CNC Machine Tools
Certification
CE, RoHS, ISO 9001
Worktable Loading Capacity
1500kg
Transport Package
Wood Case
Specification
CE ISO9001 Rohs
Production Capacity
150PC/Month
Packaging & Delivery
Package Size
120000.00cm * 3000.00cm * 3000.00cm
Package Gross Weight
25000.000kg
Product Description
Product Description

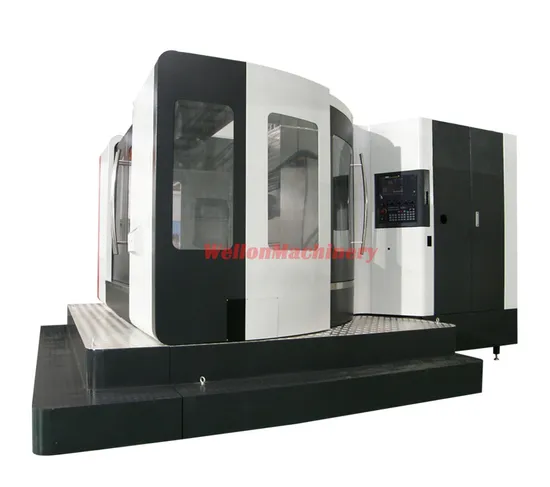

Heavy Duty CNC Milling Machine/Horizontal Machining Center
Hot Sale Products
Technical parameters:
| | Specification | HMC1000 | HMC1000/1 | HMC1000/2 | HMC1000/3 |
| | | Single table | Double table | Continuous indexing single table | Continuous indexing double table |
| Worktable | Worktable size | 1000×1000mm | 1000×1000mm | 1000×1000mm | 1000×1000mm |
| Worktable number | 1 | 2 | 1 | 2 |
| Worktable indexing | 1°X360 | 1°X360 | 0.001° | 0.001° |
| Worktable transmission | 200 | 200 | 180 | 180 |
| Worktable loading capacity | 2000kg | 2000kg | 2000kg | 2000kg |
| Travel | Worktable movement left and right(X Axis) | 1300mm | 1300mm | 1300mm | 1300mm |
| Spindle head movement up and down(Y Axis) | 1000mm | 1000mm | 1000mm | 1000mm |
| Column movement forward and backward(Z Axis) | 1000mm | 1000mm | 1000mm | 1000mm |
| Distance from spindle center to worktable surface | 100~1100mm | 0~1000mm | 100~1100mm | 0~1000mm |
| Distance from spindle nose to worktable center | 200~1200mm | 200~1200mm | 200~1200mm | 200~1200mm |
| Spindle | Max. Spindle speed | 6000rpm | 6000rpm | 6000rpm | 6000rpm |
| Spindle taper | BT50-190 | BT50-190 | BT50-190 | BT50-190 |
| ATC | 24 (30/40) | 24 (30/40) | 24 (30/40) | 24 (30/40) |
| Motor | Spindle motor | 15kw | 15kw | 15kw | 15kw |
| X,Y,Z axis servo motor | 30/30/30 Nm | 30/30/30 Nm | 30/30/30 Nm | 30/30/30 Nm |
| B axis servo motor | 12N.m | 12N.m | 22N.m | 22N.m |
| APC servo motor | / | 22N.m | / | 22N.m |
| Leadscrew | X/Y/Z(Diameter×Pitch) | 50×12 | 50×12 | 50×12 | 50×12 |
| Rapid speed | X/Y/Z | 24m/min | 24m/min | 24m/min | 24m/min |
| B axis | 10r/min | 10r/min | 10r/min | 10r/min |
| Positioning accuracy | X/Y/Z | 0.012 | 0.012 | 0.012 | 0.012 |
| B axis | 12″ | 12″ | 12″ | 12″ |
| Repositioning accuracy | X/Y/Z | 0.008 | 0.008 | 0.008 | 0.008 |
| B axis | 6″ | 6″ | 6″ | 6″ |
| Machine overall dimensions | 3675×3180×3500 | 5580×3180×3500 | 3675×3180×3500 | 5580×3180×3500 |
| Machine net weight | 17000kg | 20000kg | 17000kg | 20000kg |
Standard accessories:
Fanuc 0i-MF controller
8000rpm belt type spindle from Taiwan
24 tool disc type magazine from Taiwan
Chain type chip conveyor*1+Screw type chip conveyor*2
Ball leadscrew from Taiwan Hiwin/PMI
3-axis Linear guideway from Taiwan Hiwin/PMI
Full closed covers
MPG
Air conditioner in cabinet
USB+ Ethernet Interface
Safety doors
High pressure flushing system
Work lamp +Tir-color alarm lamp
Air gun+water gun
Automatic lubricating
Coolant system
Nitrogen balance system
Tools and toolbox
Optional accessories:
Spindle oil cooling
Renishaw tool probe TS27R
Renishaw workpiece measurement device OMP60
Company information
Packaging & Shipping
FAQ
1: What's your main products of your company?
A : We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center,
Lathe Machines,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on.
2:What kind of controlsdo you use on machines?
A :Siemens,GSK ,Fanuc etc. You can choose according to your requirements .
3. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
4 : How can I choose the most suitable machines ?
A : Please tell me the model or parameter you are interested in, we can provide you with the best price and quality.
You can also send us product pictures and we will choose the most suitable machine for you.
5 : Do we receive any updates while machine is in the manufacturing process?
A : Of course. The progress of the machine will be updated regularly and sent to you.
>>
