US$13,800.00
|
1 Piece
(MOQ)
|
Basic Info.
Process Usage
Metal-Cutting CNC Machine Tools
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Certification
GS, CE, RoHS, ISO 9001
Max. Swing Dia. Over Bed
400mm
Max. Swing Dia. Over Table
100mm
Spindle Speed Range
4000/5000rpm
Transport Package
Wood CTN
Product Description
Machine Features:
1. The X-direction slide plate adopts a "slider fixed, guide rail moving" structure. When processing at any tool position, the slider is always centered, making turning smoother, more rigid, and high processing efficiency.
2. The spindle adopts a high-rigidity sleeve spindle with three front and two rear bearings.
3. Fully protective internal defense structure, upgraded protection capability, convenient slag cleaning, effectively extending the service life of the screw guide rail
4. 45 degree conjoined inclined cast iron bed (HT300)

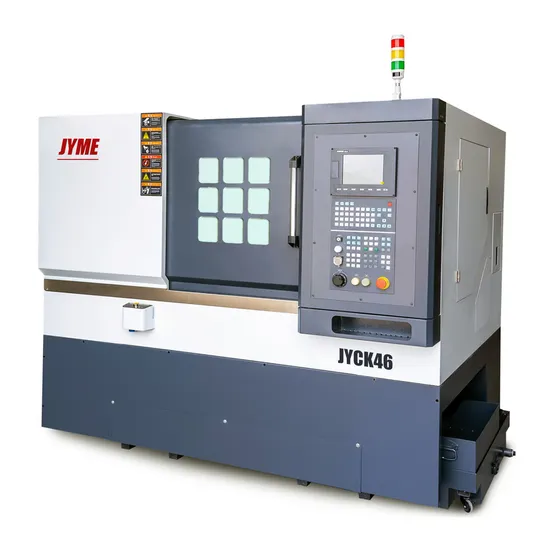

5. JYCK46B/JYCK52B is a simple turning and milling tool arrangement machine, which can be equipped with a power head or servo turret according to functional requirements.
6. axis precision indexing/hydraulic disc brake/double magnetic ring encoder
Parameters:
| Model | JYCK46/46B | JYCK52/52B |
| Max. swing dia. over bed | 480mm | 480mm |
| Max. swing dia. over table | 120mm | 120mm |
| Max. Dia through bar | 46mm | 52mm |
| Spindle Speed Range | 5000rpm | 4000rpm |
| Main motor power (continuous value) | 7.5kw | 11kw |
| Chuck Model | 6'' | 8'' |
| X-axis Travel | 860mm | 860mm |
| Z-axis Travel | 330mm | 330mm |
| Repeated Positioning accuracy of X/Z axis | ±0.002mm | ±0.002mm |
| X/Z axis Min. setting unit | 0.001mm | 0.001mm |
| Rapid feed of X/Z axis | 20000/20000 mm/min | 20000/20000 mm/min |
| Positioning accuracy of C axis | Easy positioning/0.01° | Easy positioning/0.01° |
| X/Z axis motor maximum torque | 8.4/8.4N.m | 11.5/11.5N.m |
| X/Z axis screw specifications | 32*10/32*10mm | 32*10/32*10mm |
| X/Z axis guide rail | 30/35mm ball linear guide | 30/35mm ball linear guide |
| Tool holder type | Gang type /Optional turret/ Power Head | Gang type /Optional turret/ Power Head |
| Turning Tool Size/Boring Bar Size | 20*20mm/dia20mm/dia25mm | 20*20mm/dia20mm/dia25mm |
| Lathe structure | HT300 Overall cast iron bed | HT300 Overall cast iron bed |
| Control System | SYNTEC 6TA servo system | SYNTEC 6TA servo system |
| Dimension | 2490x1650x1780mm | 2490x1650x1780mm |
| Weight | 2500kg | 2600kg |
>>
