Xuzhou Origin 24m Hydraulic Telescopic Boom Lift Aerial Working Platform Xgs24 for Sale

Product Description

Product Description

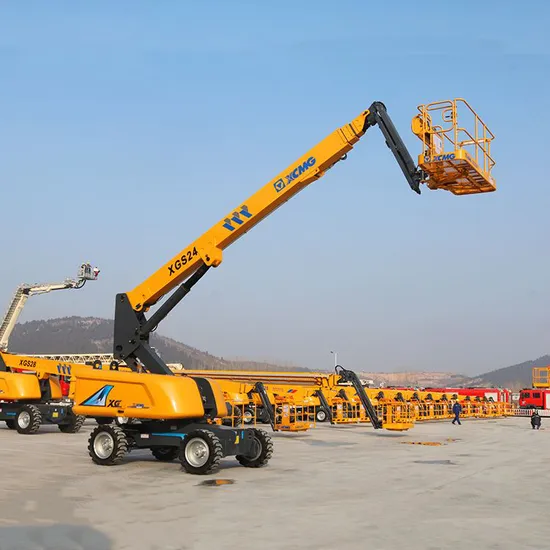

XGS24 hydraulic telescopic boom lift platform highlights with outstanding performance, efficiency, dynamics and easy operation.
It is leading in the industry with maximum carrying capacity of 340kg, high operation height and amplitude, suit for construction of large load and wide operation area.
Advantages and features:
1.Realize the dynamic adjustment of vehicle center of gravity, making the complete vehicle more stable.
2.The machine is excellent in drive and adaptability to road.
3.Making use of boom and making its work performance at leading edge.
4.Improves safety of extending mechanism and extends service life of steel rope.
5.Implementing the auto leveling, the weighting of platform payload, the dynamic monitoring and the fault warning.


Detailed Photos
Product Parameters

Item	Unit	Parameter
a. Overall length of complete machine	mm	10150
b. Overall width of complete machine	mm	2490
c. Overall height	mm	2800
d. Wheelbase	mm	2500
Max. working height	m	24
Max. platform height	m	22
Max. working range	m	18.3
Max. load capacity	kg	230 (unrestricted)/340 (restricted)
Luffing range of boom	°	-5 ~ +75
Slewing angle of turntable	°	360
Max. tail swing	mm	1550
Dimension of platform	mm	2400×900
Slewing angle of platform	°	160
Overall weight	kg	12500
Max. traveling speed	km/h	6
Min. turning radius	m	6
Min. ground clearance	mm	230
Max. gradeability	%	45
Specification of tire	-	Solid tire 36×14-20/7.5 Or Foam tire 355/55D625
Engine model	-	404D-22T
Engine rated power	kW/(r/min)	43/(2600)

Packaging & Shipping
We supervise the process from the factory to the port designated by the customer to ensure that the customer's products arrive at the destination accurately and safely.
Our Advantages
Every year, we regularly attend the Canton Fair, the Philippines, Indonesia, Russia and other construction machinery and building machinery exhibitions.We have received more than 1000 clients and training engineers from more than 100 countries around the world.
We have already exported our products to more than 80 countries and regions, including: Africa, the Middle East, South America, Central Asia, Russia, Mexico, Australia, New Zealand, Holland, British, Mongolia and so on.
After Sales Service
we are famous building machinery manufacturer, professional construction machinery exporter and one stop solution supplier in China, our team have more than 15 years experience in this field already.
(1)Warranty:Every product issued shall enjoy a one-year/2000 working hour warranty period, during which we will repair or replace the defective parts free of charge if material or process defects occur and spare parts are in normal working condition.
(2)Spare parts:CANMAX is dedicated to provide our clients with genuine spare parts with the highest quality,exact fitness and appropriate function.with our global distributor network,you are guaranteed with fast deliveries and services, wherever you are,please submit your spare parts request to us,and list products name ,description of required parts.we guarantee that your request will be handled quickly and appropriately.
(3)Installation & Maintenance:CANMAX is able to provide with the overall installation of complicated machinery,allowing you to start the normal operation of construction machinery solutions.After installation,we will make inspection of the whole machine,operate equipment,and provide you with testing data reports of installation and operation.
(4)Training:CANMAX offer perfect facilities and comfortable environment and can provide training services to different users. The training sessions include product training, operation training, maintenance know-how, technical know-how training, standards, laws and regulations training and other training, all of which are tailored to fulfill your individual needs. Training programs can be conducted in our factory field, or at the client's site.
(5)Technical Advice: CANMAX can also help customers to coordinate with trained service personnel and provide you with detailed and extensive knowledge. Through our technical advice, your machine life can be significantly extended and sustained high capacity.
