US$41.55-80.00
|
50 Pieces
(MOQ)
|
Basic Info.
Medium Temperature
Cold Water
Counter Instructions
Digital
Nominal Diameter
DN50mm to DN200mm
Principle
Speed of Water Meter
Medium Pressure
General Water Meter
Work Environment
Dry Water Meter
Temperature
0 to 90 Degree
Transport Package
Export Carton
Trademark
OEM is acceptable
Production Capacity
50, 000/Month
Packaging & Delivery
Package Size
50.00cm * 30.00cm * 30.00cm
Package Gross Weight
12.000kg
Product Description

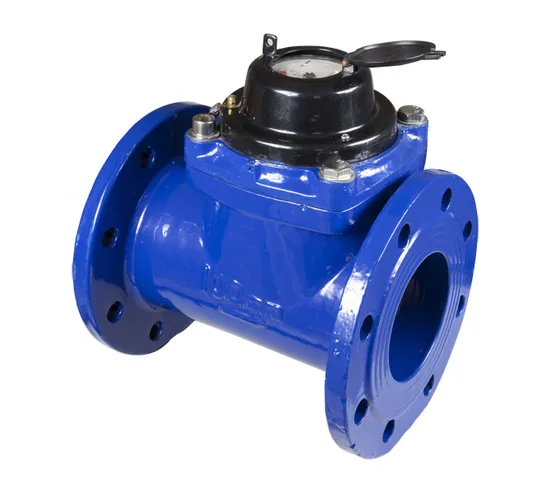

Product information
Feature:
1.Dry-dial,Magnetic drive
2.Vacuum sealed register ensures the dial kept free from fog and keep the reading clear in a long term service
3.Selected high quality materials for steady & reliable characteristic
4.Measuring accuracy conform to ISO 4064 class B Standard
5.Low head loss
6.Register for universal use within this range detachable without removing the meter from the pipeline for a easy maintenance and replacement
7.Material: Ductile Cast iron
Description
This range of water meter is used to measure the total quantity of cold water which consumed in industrial enterprise & mining,passing through the pipeline.
Working condition
Water temperature of cold water meter:≤40ºC
Water temperature of hot water meter: ≤90ºC
Working pressure:≤16 Bar
Model
LXLC-50-200
Main Technical Data
| Meter size | Measuring | Overload flow | Nominal flow | Transitional flow | Min flow | Starting flow | Min reading | Max reading |
| | |
| (mm) | class | m3/h | 1/h | m3 |
| 50 | B | 30 | 15 | 3 | 0.45 | 150 | 0.01 | 9999999 |
| 65 | B | 50 | 25 | 5 | 0.75 | 170 | 0.01 | 9999999 |
| 80 | B | 80 | 40 | 8 | 1.2 | 280 | 0.01 | 9999999 |
| 100 | B | 120 | 60 | 12 | 1.8 | 400 | 0.01 | 9999999 |
| 125 | B | 200 | 100 | 20 | 3 | 800 | 0.01 | 9999999 |
| 150 | B | 300 | 150 | 30 | 4.5 | 1200 | 0.01 | 9999999 |
| 200 | B | 500 | 250 | 50 | 7.5 | 2250 | 0.01 | 9999999 |
Dimensions and weight
| Meter size | Length L | Width B | Height H | Connecting thread | Weight |
| mm | |
| | mm | D | Bolt circle dia D1 | ConnectingBolt dia | KG |
| 50 | 200 | 175 | 250 | 165 | 125 | 4×M16 | 12 |
| 65 | 200 | 185 | 255 | 185 | 145 | 4×M16 | 13 |
| 80 | 225 | 200 | 265 | 200 | 160 | 8×M16 | 15 |
| 100 | 250 | 220 | 275 | 220 | 180 | 8×M16 | 19 |
| 125 | 250 | 245 | 285 | 245 | 210 | 8×M16 | 22 |
| 150 | 300 | 285 | 375 | 285 | 240 | 8×M20 | 47 |
| 200 | 350 | 345 | 400 | 340 | 295 | 8×M20 | 48 |
INDICATING ERROR
At low zone is ±5% from minimum flow rate (qmin) to transitional flow rate (qt) exclusive boundary
At high zone is ±2% from transitional flow rate (qt) to overload flow rate (qs) exclusive boundary
Company Profile:
We are a high - tech factory that independently develops and produces water meter, heat meter and intelligent water meter, with complete system and high quality service.
Our products are sold all over the world and our years of sales experience have enabled us to acquire the trademark and technical talent of Yonggang company.
In addition, we also supply brass accessories and have world-class machining centers, including CNC machine tools, testing machines and other processing equipment.
Choose us and offer you a satisfactory solution.
Welcome to view the following pictures of our company
Please feel free to contact me---Kens
>>
