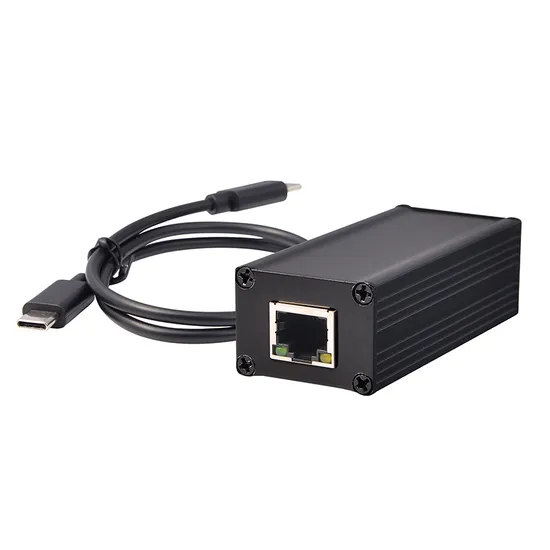

Poe to USB-C Splitter Network Adapter Max 25W Charge Android Device

Negotiable 1 Piece (MOQ)

Basic Info.

Model NO.
TS925C
Interface
USB
Transmission Rate
10/100Mbps
Application
Laptop
Connecting Medium
Twisted Pair Card
Motherboard Integrated
Separate Network Card
Frequency Range
Single Frequency
Type of Network
Gigabit Ethernet
Field
Workstation
Transport Package
Unit Carton Size: 160mm*1260mm*70mm
Specification
CE/EMC, CE/LVD, FCC Certification
Trademark
POEPLUS
Origin
Dongguan Guangdong China
HS Code
85176219
Production Capacity
500PCS Per Month

Product Description

POE to type C network adapter
802.3af/at compatible
Overview:
TS925C is a 10/100Mbps isolated POE to Type-C network adapter which compliant with IEEE802.3af/at standard.
Charging Mobile phone/tablet while surfing the Internet, drive free plug and play
Body Size:78*25*35mm.
Standard isolation transformer 37~57V input.
POE protocol:IEEE802.3af /at
Transmission rate:10/100Mbps
Power supply pins:12+/36-; 45+,78-. Data pins(1,2)+/(3,6),(4,5)/(7,8)
POE power output:5V/9V adaptive max 25w.
Isolation voltage:1500V
Power output:Type-c male
PD3.0 standard fast charge, USB2.0 network.
Support android, harmony OS, IOS system.
Aluminum alloy case, elegant appearance, better heat dissipation Picture and size(mm):
Electrical parameters:
Voltage input Active POE 802.3af/at
Parameters Minimum Typical Max
V-input 37Vdc 52Vdc 57Vdc
Output 5V 3A 9V 2A 9V 2.5A
Electrical properties (Ta=25ºC)
Item Parameter Unit
environment:
Work temp. -10~70 ºC

Storage temp.
-30~85 ºC
-30~80 ºC
-25~75 ºC
Storage humidity 5~95 RH
Protection circuit
Maximum input voltage 57.0 V
Minimum input voltage 37.0 V
Discharge protection current 3 A
Conversion circuit:
Maximum output current 5V 3A/9V 2.5A
2(typical)
Conversion efficiency Typ. ≥90%
transformer 1500 V
