Industrial Grade Produce Injection Molding Equipment: up-520t 31.5kw Heating

Product Description

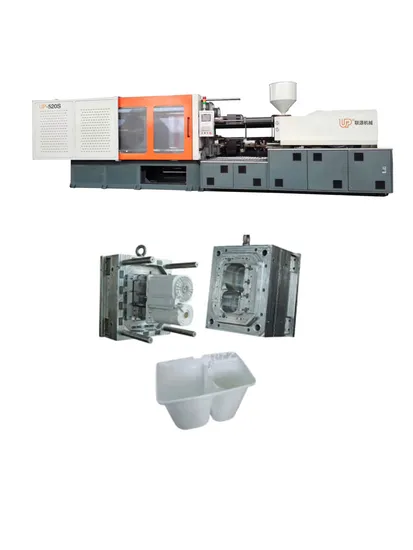

China Servo Injection Molding Machine
Ningbo Union Power Machinery Co., Ltd.
Product Description:
Main Features:
30% higher energy saving compared to traditional variable pump.
Stable and smooth movement supported by AC servo motor.
Effective reduction of energy consumption due to reduced oil and cooling water attained by hydraulic system.
High performance European B&R control system.
We are a professional plastic injection molding machine manufacturer offering a wide range of products. Our machines have a clamping force ranging from 70 to 3200Ton and injection weight from 50 to 10000g. Additionally, we hold CE and ISO certifications.
Technical Specifications:
Modulus of Capacitance: Includes position, size, and maximum allowable modulus of capacitance and minimum closure thickness of the injection molding machine guide pillar (Green column).
Nozzle Parameters: Spherical diameter of the nozzle, nozzle aperture, nozzle outer diameter, maximum nozzle extension length, positioning aperture.
Code Mold Parameters: Code mold hole, slot size.
Ejection Mechanism: Position of the ejection point, diameter of the ejector rod, ejection force, and ejection stroke if necessary.
Mold Opening Stroke and Maximum Opening Distance.

Technical Parameters	Model UP-520T
Injection Unit	A	B	C
Screw diameter (mm)	80	85	90
Shot Volume (cm3)	2135	2410	2702
Injection weight (g)	1943	2194	2495
injection pressure (Mpa)	168	148	132
Screw speed (rmp)	230
Clamping Unit
Clamping force (KN)	5200
Open stroke (mm)	850
Max Mold height (mm)	810
Min Mold height (mm)	330
Space between tie bars(mm)	830x830
Ejector force (KN)	150
Ejector stroke (mm)	240
Others
Pump pressure (Mpa)	16
Motor/driving power (KW)	45(63)
Heating power (KW)	31.5
Machine dimension (M)	8.4x2x2.76
Machine weight (T)	21
Oiltank cubage (L)	900

Ningbo Union Power Machinery Co., Ltd. - Product Description
Injection Molding Machine
Welcome to Ningbo Union Power Machinery Co., Ltd., your trusted partner in injection molding machines. Here are some key features and benefits of our machines:
Customized design for efficiency and stable performance
Expert engineering tailored to your products for short cycle times and high production
18 months warranty for components and technical support
Turnkey projects including plant design, machine and mold installation, and debugging
Experienced technicians available for installation and training
For more information or to request a quote, please contact us with your product weight, drawing, and annual quantity. We look forward to serving your injection molding needs.

---
