US$3,500.00-6,500.00
|
1 Piece
(MOQ)
|
Basic Info.
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
Artificial
Certification
GS, CE, RoHS, ISO 9001
Spindle taper
R8 or ISO30 or ISO40
Specification
1750*1500*2100
Trademark
Hercules or OEM
Production Capacity
20000sets/Year
Product Description

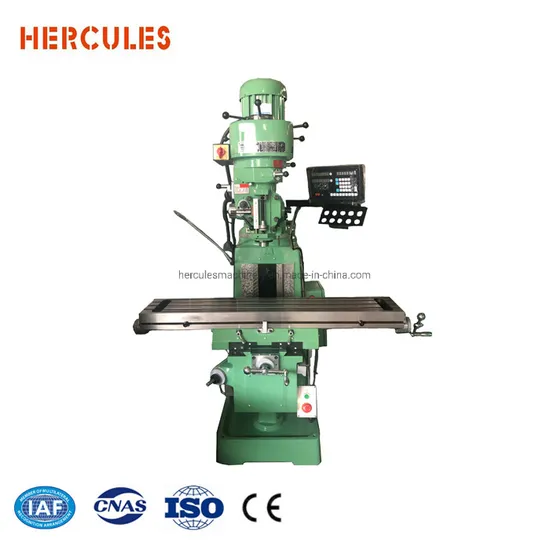

Hercules Turret Vertical Milling Machine
Classic Bridgeport type turret milling machine
Meehanite® casting and double layer grid structure, strong and durable
Taiwan spindle
Optional 16 steps pulley round milling head or Squre head with side brake
or Variable speed milling head
Brand Digital Readout 5u resolution
58pcs Clamping kit
6" Machine vise with base
Specification:
Model | M3V |
| Precision High Accuracy Series |
| Table size(L*W)(mm) | 1270x254 |
| Max.load of table (kg) | 300 |
| X axis(mm) | 900 810 with power feed |
| Y axis(mm) | 380 |
| Z axis (mm) | 360 |
Work table T slot (No.-size*pitch) (mm) | 3-15.88x63.5 |
| Distance between spindle and table(mm) | 50-410 |
| Ram travel (mm) | 520 |
| Travel of spindle quill (mm) | 127 |
| Auto crossward feed(mm/rev) | 0.04/0.08/0.15 |
| Spindle speed(rpm)(60Hz) | 80-5440 rpm 16steps |
| Spindle hole taper | R8 / NT30(optional) |
| Main Motor | 3HP |
| Tilt angle for milling head | left and right±45º forward and backward±45º |
| Guiding tracks(X.Y.Z) | △△△ |
| Dimension(L*W*H)(mm) | 1750x1500x2100 |
| Milling head | Round step milling head |
| Weight (kg) | 1200 |
Machine Details:
Packing Images
>>
