Product Description Specification

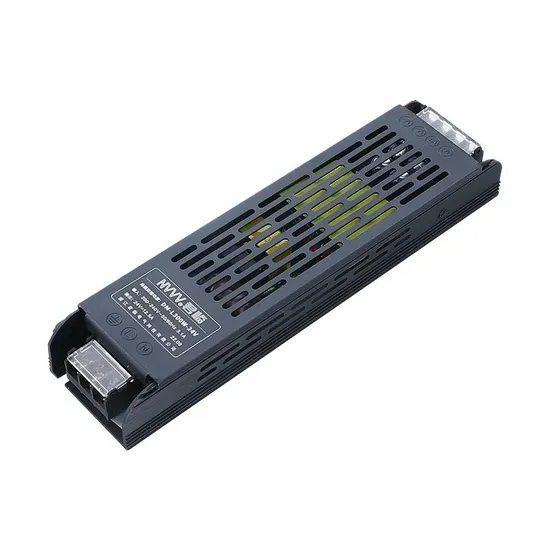

| LS-300W LED Driver |
| project | Technical index |
| OUTPUT CHARACTERISTICS | Voltage | 12V DC | 24V DC |
| Min. Load | 0A | 0A |
| Rated.Load(max) | 25A | 12.5A |
| Peak 10mS | 300W | 300W |
| Output power | 300W | 300W |
| Combined Load/Line Regulation | Min. Load | 0A | 0A |
| Rated. Load | 25A | 12.5A |
| Line Regulation | ±3% | ±3% |
| Load Regulation | ±5% | ±5% |
| INPUT CHARACTERISTICS | Rated Input Voltage:200~240Vac |
|
| Rated Input Frequency | Rated Input Frequency:50/60Hz. |
|
| Ac Leakage Current | 3.5mA Max.At240Vac input. |
|
| ENVIRONMENTAL REQUIREMET | -25ºC to 40ºC,Full load, Normal operation. |
|
| Relative Humidity | 5%(0ºC)~90%(40ºC)RH,72Hrs,Full load, Normal operating. |
|
| The power supply size | 208*50*29mm |
|
| weight | 0.336KG |
