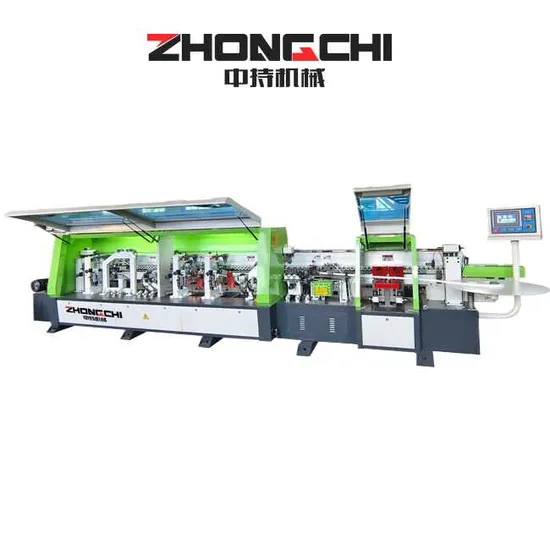

Three Roller PVC Edge Banding Printing Machines Edge Banding Machines China PVC Edge Bandage Machine

Product Description

Technical Parameters:

Working thickness	10-60mm
Min. working width	≥60mm
Min. panel length	≥160mm
Feeding speed	18-24m/min
Tape thickness	0.4-3mm
Air pressure	0.6Mpa
Total power	16.8KW
Voltage	380v,50hz, 3phase
Power of main drive motor	3.7KW
Weight	3000kg
Overall size	6800*1100*1600mm

Features
Product Name: Automatic edge banding machine DELTA PLC control system Strong body Easy operation Electrical Up and down Three Feeding Speed option OEM Customized Function can option
Detailed Photos
2*2.2 kW premilling unit with 2 diamond cuttersPremilling unit with activation controlled diamond cutters, rotating speed12000 rpm, 2x2.2 kW (3 HP), max. depth of cut 2 mm, max. workpiece height60 mm, premilling cutters with diamond cutters width 35-60mm; ensuresright angled and chip free workpiece edges
Gluing function
requires only 20minutes to reach operatingtemperature. The tool free quick change systemguarantees quick cleaning and change over times whenchanging the glue or colour. The synchronised, fineadjustable glue roller ensures the right applicationamount of glue.
End trimming function
with two high frequency motors

0.55 kW(1 HP); 12000 rpm; HW saw blades Z 24 D-100 x 20 x 3.2 mm.
Rough trimming function
2 high frequency motors for upper and lower edge with 0.75 kW (1 HP); 12000rpm. With 2pcs 6 teeth flat cutters. The manual 2-axis position control of bothheight and depth ensures 100% repeatability. Edge belt thickness change bymanual
Corner Rounding function
Corner rounding unit for soft and post forming workpieces for the processing of the ends of the panel with 0.4-3.0 mm edge material and 10-60 mm workpiece height,With 2pcs 0.37kw motors.Suitable for straight work piece edges.
Scraping Function
mechanical adjustment for R=2mm
Upper and lower radius scraper for the processing of 2 mm plastic edge material. with R2 cutter. Manually enabled and disabled. lf customer has 3mm thickness edge belt will use R3 cutter
Buffing function
Through the two rotating cloth wheels, the processed panel is cleaned to make the end face of the edge banding more smooth and beautiful, and to keep the polishing wheel worn evenly.

Applications:
Applicable products: solid wood panels, fibreboard, particleboard, MDF and other panels and other panel furniture Edge. Edge of the main PVC, polyester, melamine and wood, and so on.
Achieve results: a high degree of automation, high efficiency, high precision and high aesthetics.
Structural advantages: laser cutting steel plate base, a welded body made of solid deformation does not increase the stability of the machine to ensure that each processing department can work fine. Processing components imported motor and high- quality electrical components.
Company Profile

Oingdao zhongchi woodworking machinery co, Ltd is located in wangtai industrial park on the west coast of Oingdao city, Woodworking machinery development, design, manufacture of professional manufacturers The company has strong technical force, mature technology, reliable quality assuranceSystem, perfect after-sales service, let every user buy at ease, with the comfort.The company's main products are edge sealing machine, precision cutting saw, row drill, MY series of plate assembly machine, sanding machine, press machine, engraving machine, thin Wood shears, frame combination machine and other series of products, product varieties and styles, quality, reasonable product structure, perfect function, safety reliable, best-selling around the world, by the user's praise.The company adhere to the "credibility of this, customer first" purpose, to provide customers with quality products and good service. Ensure that you chooseWe have no worries about using our products. Ln the face of fierce market competition and challenges, the company will be strict quality management, high level Technical guidance with customers and social progress, common development. Wish we sincerely cooperate to create a better future!

FAQ

Q1: What is the brand name of the Machine?
A1: The brand name of the Woodworking Machine is Zhongchi Brand
Q2: Where is the Woodworking Machine manufactured?
A2: The Woodworking Machine is manufactured in Qingdao,China.
Q3: Is the Woodworking Machine certified?
A3: Yes, Have CE certification.

Q4:I am a fresh man for this machine,what kind of machine I should choose?
A4:Very easy to choose, just tell us :
1. the work you want to do ?
2. the maximum size of your material ?
then we give you perfect solutions and suggestions.

Q5:When I got this machine, but I did not know how to use it,What should I do?
A5:We will send tutorial video and English version manual with the machine, If you still have some doubts,we can talk by telephone or Video. Or even send our engineers oversea to help you.

Q6:If some problems happened to this machine during warranty period,what should I do?
A6:We will supply free parts in machine warranty period if machine have some problem, While we also supply free after-service,so any doubts, just let us know, we will give you solutions.

Q7:What is the MOQ?
A7:MOQ for our products is 1 set machine, we could send it to the nearest port to you.

---
