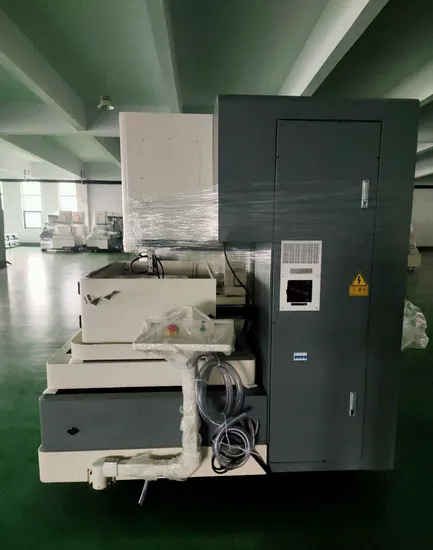

Bqy400 CNC EDM Wire Cut Machine Price

Product Description

Leading CNC Wire Cut EDM Manufacturer in China, Providing customer High End EDM machines with Fast cutting speed.
Customers spread in aerospace, electronic,aotomative, 3D printing, militay and defense,mold and tooling industry.
Products export to Europe, Russia, South America, Southeast Asia, Middle East, etc

Parameters	BQY400	BQY500	BQY630
Worktable size(mm)	735x460	836x550	935x645
X/Y travel(mm)	400x320	500x400	630x500
Max workpiece size(mm)	800x500	980x600	1140x730
Max cutting thickness(mm)	300	300	300
Max load weight(kg)	400	600	900
U/V travel(mm)	80x80	80x80	80x80
Max cutting taper	±15°/150mm	±15°/150mm	±15°/150mm
Control type	X Y Mitsubishi Servo, Z U V W 6 axis servo	X Y Mitsubishi Servo, Z U V W 6 axis servo	X Y Mitsubishi Servo, Z U V W 6 axis servo
Z transmission	Numerical control	Numerical control	Numerical control
Simultaneously Controlled axes	X Y U V-4 Axis	X Y U V-4 Axis	X Y U V-4 Axis
Wire diameter(mm)	Φ0.1-Φ0.2	Φ0.1-Φ0.2	Φ0.1-Φ0.2
Wire speed (m/s)	1-11.4	1-11.4	1-11.4
Reposition accuracy(mm)	≤±0.003	≤±0.003	≤±0.003
Max cutting speed (mm2/min)	≥300	≥300	≥300
Roughness/Ra(um)	0.7-1.4	0.7-1.4	0.7-1.4
Water tank volume(L)	120	120	120
Filtering method	3 layer filteration	3 layer filtration	3 layer filtration
Power supply	Three phase 380V AC/50Hz	Three phase 380V AC/50Hz	Three phase 380V AC/50Hz
Control system	Baqi system	Baqi system	Baqi system
Total power consumption(kw)	1.6	1.7	1.8
Max machining current(A)	10	10	10
Machine gross weight(kg)	2100	2600	3600
Machine size(mm)	2100x1680x2100	2360x1870x2160	2398x1938x2180
Top-bottom abnormity cutting	Yes	Yes	Yes

Remote control and digital management function:
Our machine integrates data management, information mornitoring and other digital functions. Users can operate monitoring software on the remote servicer in real time to monitor each machines working status, processing progress, to arrange work high efficiently.
Standard Configuration:
1) Win10 System with BQ control System(own R&D),dual CPU
2) HT300 Casting Machine Body, two times heat treatment, prevent deformation effectively.
3) 5 axis digital display and Z axis motorized freely drive up and down.
4) Pulse and anti-electrolytic power supply, to enhance cutting accuracy.
5) Wire tension controlled by servo motor, much smart.
6) Mitsubishi /Panasonic servo for XY, XYUVZ 5 axis servo
7) THK / HIWIN /PMI high precision linear guide way
8) THK / HIWIN /PMI high precision ball screw
9) NSK, Japan /FAG, Germany bearings
10) Japan PANASONIC converter.
11) PHILIPS Industrial Computer
12) Automatic center lubrication system.

System functions:
BQ series medium wire cut EDM adopts computer control, X,Y,U,V,4 axis simultaneously controlled, the discharge parameter can be automatic selected and control. It is programmed with internationally universal ISO code.The main system functions are as following:

mirror machining	proportionally scaling
conventional taper cutting	top-bottom abnormality cutting
single-stage machining	4 axis simultaneously cutting
program editing	automatic wire radius compensation
automatically machining condition convert	simulation check
return halfway	pitch compensation
automatic edge finding	automatic center finding
wire alignment	graphic real time tracking and check
subprogram calling	unmanned processing(power-off after finishing)
back to the origin point and suspension point	wire feeding speed adjustment

Full travel reposition accuracy ≤ ±0.003mm

Measured by Laser Interfermeter. Reverse error : 0.0009mm System deviation: 0.0016mm Average deviation: 0.0015mm Accuracy: 0.0016mm Repeatability: 0.0009mm R+(single repeatability): 0.000mm R-(single repeatability): 0.000mm A+(single accuracy): 0.0016mm A-(single accuracy): 0.0014mm
Delivery 3000 sets a year:



Contact us for more details, you will get reply within 24 hours .

---
