1m Width C11000 Copper Strip Coil Roll for Battery and Radiator

US$5,000.00-6,500.00 1 Ton (MOQ)

Basic Info.

Model NO.
ZR-453
Material
Red Copper
Shape
Coil
Alloy
Non-alloy
Color
Red
Standard
ASTM
Copper
More Than 99.90%
Electrical Conductivity
More Than 100% Iacs
Hardness
Hard, 1/4 Hard, 1/2 Hard, 3/4 Hard
Surface
Bright Surface
Transport Package
Wooden Cases
Specification
thickness from 0.05mm to 3mm
Trademark
ZeRui
Origin
Qingdao, China
HS Code
74091100
Production Capacity
1000 Tons Per Month

Product Description

1m Width C11000 Copper Strip Coil Roll for Battery and Radiator
1.
Production Specifications
The copper strip is in form of rolls. It is used for a variety of applications including construction and architecture,
auto manufacturing, electrical components, marine applications and HVAC systems. The high purity (99.92-99.97%)
of copper strip and rolls provides the premium quality needed f or many projects and applications in a wide range of
industries and uses.
Copper strip and rolls are in red and pink color and is known for its excellent malleability and ductility. Copper strip
and rolls provide excellent strength, good corrosion resistance, superior electrical conductivity and non-sparking
capabilities.
Our copper strip is available in thickness from 0.05mm to 3.0mm. The copper foil is in thickness from 0.05mm to
0.15mm, and copper strip or rolls is in thickness from 0.15mm to 3.0mm. The temper of copper strip and rolls is in
1/4 hard, 1/2 hard, 3/4 hard, hard and annealed. Our copper strip ad rolls are produced according to
ASTM B152 standard.

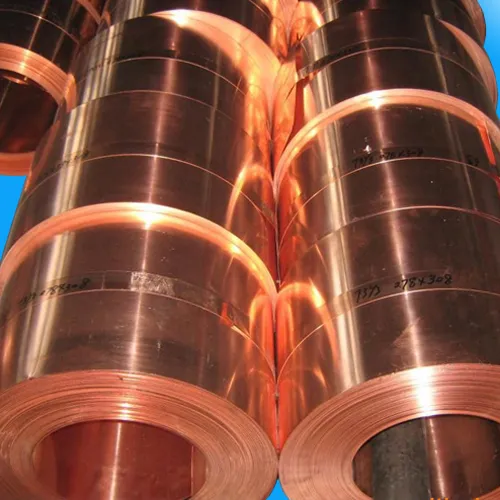

Product Pictures
Chemical Composition & Mechanical Property
Copper Alloy Chemical Composition Temper Mechanical Property
Copper
%
Phosphorus
%
Tensile Strength
MPa
Elongation
%
C12200 ≥ 99.90 0.015-0.040 1/4 Hard 235-295 ≥ 25
C12200 ≥ 99.90 0.015-0.040 1/2 Hard 255-315 ≥8
C12200 ≥ 99.90 0.015-0.040 3/4 Hard 285-345
C12200 ≥ 99.90 0.015-0.040 Hard 295-360 /
C12200 ≥ 99.90 0.015-0.040 Annealed 205-260 ≥ 30
C11000 ≥ 99.90 / 1/4 Hard 235-295 ≥ 25
C11000 ≥ 99.90 / 1/2 Hard 255-315 ≥8
C11000 ≥ 99.90 / 3/4 Hard 285-345
C11000 ≥ 99.90 / Hard 295-360 /
C11000 ≥ 99.90 / Annealed 205-260 ≥ 30

Electrical Conductivity
Copper Alloy Copper
%
Temper Electrical Conductivity
IACS
%
C11000 ≥ 99.90 Annealed ≥ 100
C11000 ≥ 99.90 1/4 Hard, 1/2 Hard,
3/4 Hard, Hard
≥ 97

Copper Strip Size Range
Copper Alloy Temper Size (mm)
Thickness Width
C11000,
C12200
Hard, 3/4 Hard,
1/2 Hard, 1/4 Hard, Annealed
0.05- 0.5 ≤600
≥0.5 - 3.0 ≤1000

2.
3.
4.
