CE Biomass Fuel Pellet Production Line Wood Pellet Line

Product Description

Do you want to make the most of biomass raw materials, especially waste biomass materials?
Biomass pellet plant has fully realized this idea by making wood pellets from various biomass materials. Wood pellets can be used
as the fuel for civil heating& living energy, biomass industrial boiler, power generation and a base for mushrooms etc. Really turn waste to treasure.
Biomass pellet mill factory can process many materials, such as wood, sawdust, bagasse, coffee grounds, peanut shells, farm plants (stalk, straw, wheat stalk, bean stalk, cotton stalk, bean shells etc), grass, organic waste, forest/ agriculture waste etc.

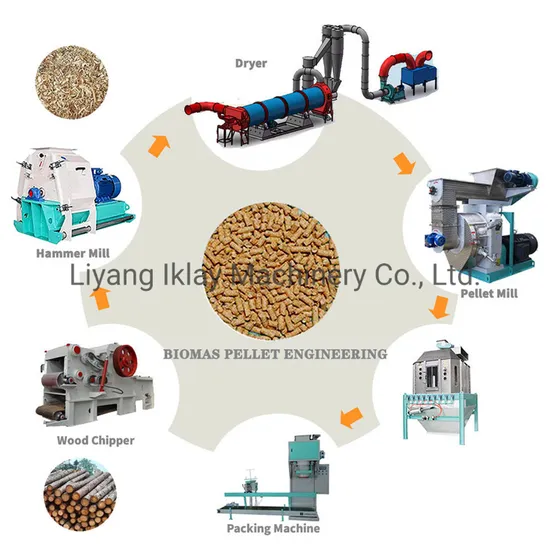

Chipping→Grinding→Drying→Pelletizing→Cooling &Sifting→ Packing Process
(Take the wood as an example, different raw materials, the flow chart is a little different. More information, welcome to contact us.)

Simple Introduction for main machines:
Wood Chipper: Hammer Mill: Drum Dryer: Pellet Mill: Cooler& Sifter: Packing Machine:

Cutting wood, logs, tree limbs and trunks into <3mm thickness and 10-50 mm length wood chips.

Crushing the material into small size (below 10mm) before pelletizing process.

In general, the moisture content of raw material is still high after grinding, which is not suitable for pelleting. The dryer can make moisture content from around 50% to 15%.

Making wood pellets, it is the soul of complete biomass pellet plant. According to raw material and production needs of customers, choosing suitable pellet machine is very important.

After pressed by the pellet machine,then cool wood pellets. And rotary screener or vibrating screener are used for sifting pellets. It is most commonly used in complete pellet plant.

It can weigh and pack the cooled pellets automatically. 10-50kg per bag is available to choose.

1. Technical Parameter (Horizontal Ring Die Wood Pellet Machine/ Wood Pellet Mill)

Model	Constituent part	Power	Pellet size	Capacity	Weight	Dimension
		(KW)	(mm)	(Wood Sawdust ,Biomass)	(KG)	(mm)
MZLH320	Screw Feeder	1.1KW	4-12mm	0.3-0.4T/H	1500KG	2200*900*1300
	Force Feeder	0.55KW
	Pellet machine	37KW
MZLH350	Screw Feeder	1.1KW	4-12mm	0.5-0.6T/H	2200KG	2500*1100*1600
	Force Feeder	0.55KW
	Pellet machine	55KW
MZLH420	Screw Feeder	2.2KW	4-12mm	0.8- 1.2T/H	3200KG	2900*1150*2100
	Force Feeder	1.5KW
	Pellet machine	90/110KW
MZLH508	Screw Feeder	3KW	4-12mm	1.5-2.0T/H	4500KG	3000*1260*2150
	Force Feeder	1.5KW
	Pellet machine	110/132KW
MZLH678	Screw Feeder	3KW	4-12mm	2.0-2.5T/H	5800KG	3300*1450*2200
	Force Feeder	2.2KW
	Pellet machine	160/200KW
MZLH768	Screw Feeder	3KW	4-12mm	2.5-3.5T/H	6500KG	3300*1550*2200
	Force Feeder	2.2KW
	Pellet machine	200/220KW

2. Technical Parameter (Vertical Ring Die Wood Pellet Machine/ Wood Pellet Mill)

Model	Capacity	Power(kw)		Ring Die Diameter(mm)	Pellet Size	Weight
	(t/h)	Main	Feeder		(mm)	(T)
XGJ560	1.2-1.5	90/110	2.2	Φ560	Φ6,Φ8,Φ10,Φ12	2.8
XGJ630	1.5-2.0	110/132	2.2	Φ630	Φ6,Φ8,Φ10,Φ12	3.5
XGJ850	2.5-3.5	200/220	3	Φ850	Φ6,Φ8,Φ10,Φ12	4.2

Liyang Iklay Machinery Co., Ltd. is a professional manufacturer and supplier specialized in designing, manufacturing, installing and commissioning: Poultry&livestock&aqua feed production line, Biomass pellet production line, Cat litter production line; Spare parts for hammer mill& pellet mill, such as ring dies, rollers, hammer blades and screens.
Our main products include precleaner, hammer mill, mixer, pellet mill, cooler, screener, automatic packing machine other auxililary equipments and spare parts etc. We have more than 10 years rich experience in the field.
We have been committed to providing customers with valuable services and high-quality products to satisfy your needs. It is for this reason that we have become a reliable and long time partner for our customer. Looking forward to our cooperation and realize win-win.




1. Project Investment Analysis:
According to customer needs, formula, production capacity and etc, IKLAY gives customers detailed display of each equipment of the complete production line, quotations, and designs the most suitable production line for customers.
2. Finish whole process from order to delivery:
IKLAY meets the needs of user with excellent whole process management, from the material procurement, manufacturing, quality inspection and test machines before delivery, process assurance to tracking of the process, which provide quality and security for customer.
3. Installation training:
We not only send engineers to the customer site for guidance, installation, commissioning, trial operation and formal operation, but also train operators to ensure stable and safe operation of the production line.
4. Regular return visits:
Regular visits and contacts with customers are used to know customers' use of products, listen to customers' opinions, and provide timely services for customers with quality problems.

---
