Well Designed PVC Ceiling Wall Panel Making Machine

US$30,000.00-35,000.00 1 set (MOQ)

Basic Info.

Model NO.
SJSZ65/132
Product Type
Profile Extrusion Molding Machine
Feeding Mode
One Feed
Assembly Structure
Separate Type Extruder
Screw
Twin-Screw
Engagement System
Full Intermeshing
Screw Channel Structure
Deep Screw
Exhaust
Exhaust
Automation
Automatic
Computerized
Computerized
After-Sales Service Provided
Engineers Available to Service Abroad
Transport Package
Film
Specification
20*1.5*3.5m
Trademark
HYD
Origin
Shandong, China

Product Description

WPC ceiling wall panel production line/pvc wall panel making machine
Product description
This PVC/WPC ceiling wall panel making machine adopts conical twin screw sepcially used for the extruder,matching with different standard of profile die and auxiliary device, it is used to extrude PVC ceiling panel , PVC wall panel, PVC trunking profile and other PVC profile. It adopts vacuum cailbrating, online film transferring machine,auto haul-off and cutting device,and material discharge. Features of the production line,automatic temperature controlling, stable performance,and easy operation.
Machine list
Item component quantity
1 double screw extruder 1 set
2 mould as your require

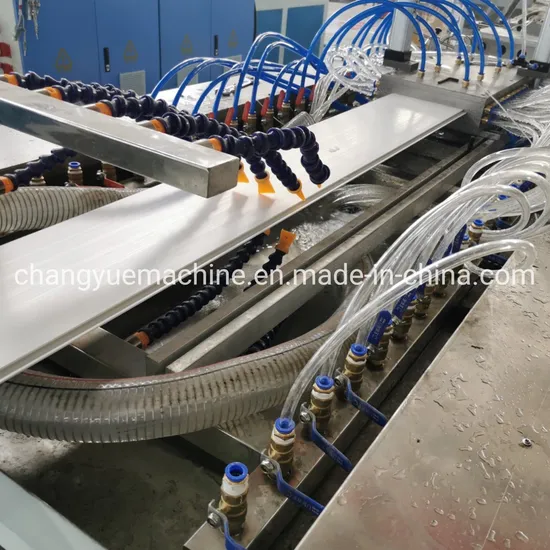

3 vacuum calibration tank 1 set
4 haul off machine 1 set
5 cutter 1 set
6 stacker 1 set

Technical data
Model SJSZ51 SJSZ65 SJSZ80
screw diameter(mm) 51/105 65/132 80/156
screw rotation speed(r/min) 1-30 1-34.7 1-36.9
effective length of screw(mm) 1050 1430 1800
main motor power(kw) 22 37 55
barrel heating power(kw) 18 24 36
capacity(kg/h) 110 250 380
central height(mm) 1000
net weight(kg) 3200 5000 6500

Product details
Our customer & exhibition
Packing
