Lifting Equipment Aluminum Wire Rope Puller Manually Wire Rope Pulling Hoist

Product Description

Wire Rope Pulling Hoist / Cable Winch / Wire Rope WInch

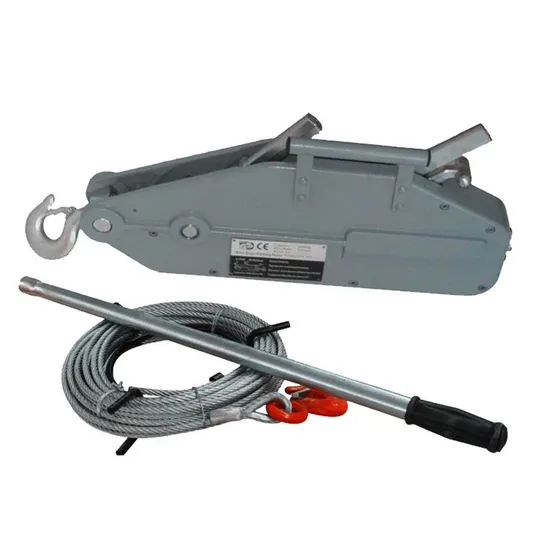

wire rope winch(wire rope pulling hoist ) is an extremely versatile and portable unit for pulling, lifting, lowering and securing loads, that is both easy and safe to operate.
All hoists are supplied complete with 20m wire rope and an extendable operating lever. Wire rope is tapered one end and fitted with a hook and safety catch at the other end. The hoist has low maintenance requirements ans is easy to service.
Overload protection ensures high personal safety when in operation.
Specially built-in shear pins can be replaceed wihout removing the load.
Characteristic of H-Lift Wire Rope Pulling Hoist / Cable Winch / Wire Rope WInch:
1. Rated capacity: 800/1600/3200/5400kg
2. Lever pull at WLL: 341/400/438/850N
3. Rope diameter: 8.3m/11m/16m/20m
4. Standard length of wire rope: 20m

Item No.(Aluminium body)		ZHPH-A-0.8T		ZHPH-A-1.6T		ZHPH-A-3.2T		ZHPH-A-5.4T
Item No.(Steel body)		ZHPH-S-0.8T		ZHPH-S-1.6T		ZHPH-S-3.2T		/
Rated Capacity (kg)		800		1600		3200		5400
Rated Forward Handpower (N)		343		441		441		745
Rated Forward Travel(N)		>=52		>=55		>=28		>=30
Rope Diameter(mm)		8.3		11		16		20
Wire Rope Safety Factor Load Capacity		5		5		5		5
Safety Factor & Static Load Capacity		4	5	4	5	4	5	5	/
Max. Travelling Load (kg)		1200		2400		4000		8000
Max Overall Size(mm)	A	426	440	545	550	660	690	930	/
	B	235	265	280	300	325	350	480	/
	C	168	/	190	/	230	/	/	/
	D	60	63	72	77	91	91	152	/
	E	64	/	97	/	116	/	/	/
L1		/		80		80		68
L2		80		120		120		112
Net weight/kg Aluminium body		15.3		27.5		50.8		105
Net weight/kg Metal body		16		28		48.5

All our activities are accredited to ISO 9001 and based on delivering the highest quality possible, both in products and services, ensuring long-term benefits and optimum performance. Also we got the below certification: CE GS SUV, LR ABS ( anchors and anchor chains) Our rigging hardware is manufactured under exceptional quantity control and strictly adhered to the US, DIN, JIS, BS and AS standards.
About sample:
Cost with free If the quantity small, and the express charge account into buyer's, after receiving the official order, the seller deducts it in first order's
Please do not hesitate to contact us, should there be any questions or enquires.
----------------FAQ--------------

Q1: Does your workshop have products in stock?
A1: Yes, we have. But we only have standard-sized products; if you need customized products, it will take some time to manufacture them.

Q2: Whether you can offer customized service?
A2: Yes, the working condition of every customer is different. All of our products can be customized depending on customers' requirements. Please give us the information as straightforward as you can, so we can provide our best design to suit your demands.

Q3: How to confirm the working class of the crane?
A3: Please offer us the working environment, working duration, and frequency of the crane, and our engineer shall calculate it for you.

Q4: What kind of package for the hoist?
A4: Hoists and Electricals packed in wooden fumigation box. The main beams are covered by woven plastic cloth.

Q5: What kind of assistance can you offer with equipment installation?
A5: We have a professional installation team who has gone to many countries to assist with the installation. If you need us to send a technician to your factory, please let us know.

Q6: What payment terms can you accept?
A6: Our also supports L/C, D/A, D/P, T/T, Western Union, and MoneyGram payments. For example, FOB NINGBO, CIF, DDU, EX WORKS, etc.

---
