Advanced High Precision Machining Centers From Trusted Chinese Suppliers

Product Description

Product Description

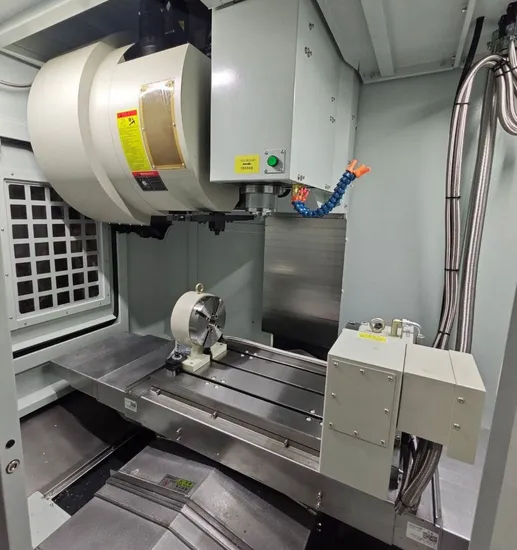

ATV855 Vertical Five-Axis Machining Center stands as a compact marvel of engineering, capable of seamlessly performing an array of tasks including milling, drilling, boring, expanding, reaming, tapping, and more-all in one clamping. This remarkable machine is ideal for handling small to medium-sized production of complex components such as box-like shapes, plates, valves, shells, molds, and more. With its integration of high-precision linear rails and wire bars, this machining center ensures superior dynamic responsiveness and high-speed capabilities. It excels in achieving swift, high-speed cutting operations without sacrificing precision at lower speeds-eradicating issues like crawling. Widely embraced across industries, it proves indispensable in the production of precision parts, hardware, automotive components, and medical equipment.
The fuselage adopts mineral casting to stabilize the baseMoving parts, high-performance electric spindle.
Basic large-scale base adopts Mineral molding, the machine head and drag plate are made of high-strength cast iron materials, which makes the machine tool To high rigidity, good shock absorption and stable accuracy. Product Parameters

Description	Parameter
Machine ModelATV855	ATV855
NC System	MISTUBSIHI M80B/FANUC MF
X,Y,Z Working Area	800*550*550mm
B,CWorking Area	±120° /360°
Drilling spindle power	11kw
Saw spindle	Mechanical spindle
Spindle speed	0-12000rpm
running speed	36m/min
Working speed	10m/min
Working travel	50-400 mm
diameter of table surface	Ø1000*550 mm
Spindle Interface	BT40
X,Y,Z PositionaI Accuracy	≤0.01mm
X,Y,Z Repeat positioning accuracy	≤0.006mm
WEIGHT	5.5T
Overall dimension	2550*2600*2650mm

Features:
Advanced Numerical Control System: Ourprocessing center is equipped with an advanced numerical control system, ensuring precise and efficient production.
Intelligent Control System: With our intelligent control system, you can enjoy automatic production, intelligent management, and remote monitoring functions, enhancing the stability and reliability of the production process.
Environmental Protection and Energy Saving: We prioritize the environment by incorporating a low-noise and low-energy design, minimizing the impact on the surroundings. Additionally, our efficient cooling system and recycling system enable resource recycling, promoting sustainabili
Key Features:
High Precision: TheProcessing Center ensures exceptional accuracy and consistency in every processing task, guaranteeing superior quality results.
High Efficiency: With its advanced automation capabilities, this center significantly reduces processing time, maximizing productivity and saving valuable resources.
Multi-functionality: Designed to meet the diverse needs of different customers, this center offers a wide range of processing options, allowing for various ceramic applications.
Intelligence: Equipped with intelligent control systems, the Processing Center optimizes operations, minimizes errors, and enhances overall efficiency.
Environmental Protection and Energy Saving: Committed to sustainability, this center incorporates energy-saving features, reducing environmental impact and lowering operational costs.
CNC system
The original set of CNC
system machine tool stable operation in line with human engineering interactive interface cancomplete the precise cutting processing requirements System can be installed according to customer demand

---
