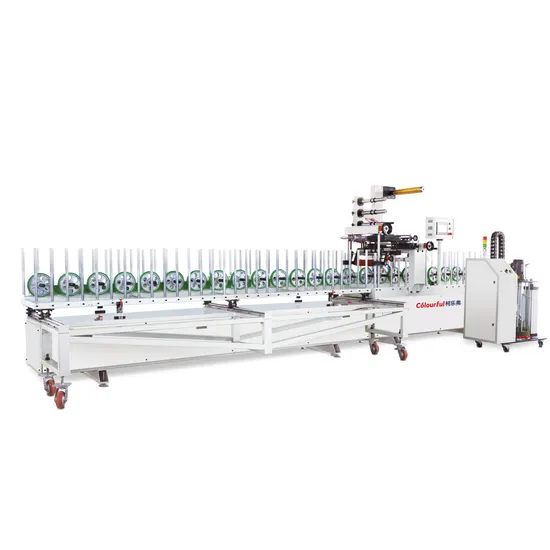

Clf-350A Casing Polystyrene Basic Mouldings Wrapping Machine

Product Description

CLF-350A Casing Polystyrene Basic Mouldings Wrapping MachineProduct Description
• • This machine is suitable for 50-600mm width range of MDF board, flower board, particle board, calcium silicate board, glass magnesium board, PVC foam board, aluminum plate wood plastic door surface covered with PVC film, coated paper, veneer, CPL, leather, aluminum foil, copper foil and other rolled fabrics.Our Advantages
Numerical control intelligent memory:
This machine is a CNC equipment, as long as the size of the produced plate has a memory function, the next time the same product is produced, the original data can be directly called out and used directly; each time a size is changed, it only takes about 5 minutes, which greatly reduces machine adjustments. time; double-roll unwindingHigh configuration:
equipped with PVC film and other surface material tension automatic compensation system to keep the tension of the fabric constant during the production process; standard Siemens servo system, Siemens PLC, inverter, touch screen.High configuration:
This machine uses PUR hot-melt adhesive, scrape coating method, can fit the front of the board and the coating of the two sides, the production speed is fast, the fastest is 30 meters per minute; solvent resistance, good weather resistance, the material is
-40-140 ° The glue will not open under the temperature; the amount of glue coating is controlled by PLC, which is accurate and saves glue. It is equipped with a 55-gallon glue machine,Electric control device:It adopts PLC control and integrates the functions of the hot- melt into the PLC. The machine device with a forward and backward switch, and the debug operation is simple and convenient. Low-voltage electrical appliances use Schneider, and the controller part adopts the Delta brand.
Product Parameters

Overall Size	Approx. 6700*2800*3700
Weight	Approx. 2000 kg
Power Supply	380V 50Hz or customized
Total Power	45kW
Pneumatic Load	6 bar
Working Speed	Up to 65 m/min
Profile Application Spec	Width Range: Up to 350mmHeight Range: Up to 125mmLength: Min. 600mm
Foil Application Spec	Core Dia.: 3in.Foil Width: Up to 300mm
Control System	Schneide-r PLC with 10in. full-color touch screen.
Glue Melter	Size: 5 gallon standard glue melter or continuous glue melterPail Diameter: 280 or 286mmMelt Capacity: 30kg/hrNum. of Hoses: 1Temp. Control Sensor: PT100Glue Type: PUR.
Electronic Components	Schneider
Pneumatic Components	AirTAC or equivalent
Optional	Can be customized

Final products
Company Information
We are company integrating design and research,production,domestic and international sales,we focus on the design and research of various decoration materials surface treatment machine.The initiary team of the organization are professional engineers who has ten years experience in this field.The main product include PUR hot glue laminator machine,flat laminator,PUR sheet laminator machine,door panel laminator machine,PUR special-shaped edge banding machine,cold laminator machine,undertake laminating,automatic veneer production line,The machine can work on various profile,board and sheet,with wood,aluminum alloy,steel and PVC material,Our various products apply to furniture,door industry,door and windows profile industry,home appliances,automobile and other industries.colourful equipment serves many countries and regions in the world,and has won wide praise in the industry.Other hot products
FAQ
1. Q: How about the after-sales service?
A: Our machines have one year guarantee.We have a strong team, special for after-sales service. We can arrange engineers to do service for you.
2. Q: Are you a factory or trading company?
A: We are a factory in this field nearly 20 years.
3. Q: Where is your factory located? How can I visit there?
A:Our factory is located in Qingdao City, Shandong Province, China, near to the Jiaodong international airport. You can fly to Jiaodong international airport directly or take train to Qingdao Station.
4. Q:How does your factory do regarding quality control?
A:Quality is our invariable topic,it is the basement of company's development.From the beginning of opening company,we especially focus on quality job.Our hotmelt adhesive coating equipment have passed CE and SGS certification.
5.Q:What information should I let you know if I want to get quotation?
A:-the details of your products,such asprofiles,adhesive material,coating width etc.
-if it is possible,please provide us the pictures or the design drawings,our designer will analyze your samples and give you exact details.
Should you have some other details not sure? such as videos,specification, components, working process, payment terms etc, please don't hesitate to contact us.

---
