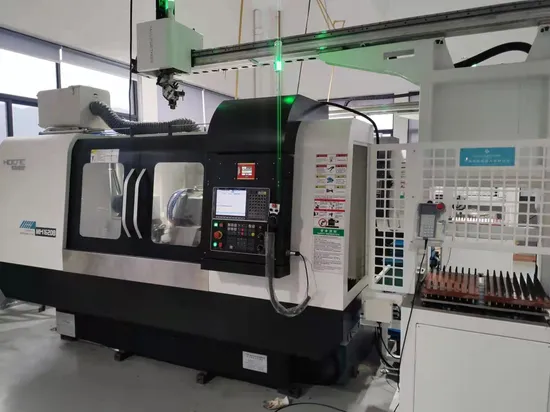

Hot Sale CNC Cylindrical & End Face Grinding Machine Tool Mk1620

Product Description

1.Machine details
MK13 Grinding wheel feed in type MK16 Grinding wheel oblique feed type
enquiped with OD measuring instrument standard with HNC808DG
or end face instrument You can also choose Siemens or Fanuc
2.Our advantages 1.Factory direct sales, product quality ,delivery time and after-sale services can be effectively guaranteed 2.Big listed company with rich manufacture experience,
3.More than 30 years international trade experiences.
4. KNUTH ,OPTIMUM ,BERNARDO,MSC, GRIZZLY,PHILLIPS and some other companies.The quality of our machines has gotten good reputation from them
3.Parameters

specifications	Unit		model
			MK1320B	MKE1332	MK1620B	MKE1350
Max.length grinding(O.D)	mm		500/750	1000/1500	500/750	1500/2000/3000/4000
center height	mm		135	180	135	270
Dia. grinding(O.D)	mm		8~200	8~320	8~200	25~500
Max.weight of workpiece	kg		50	150	50	1000
workhead
center taper	MT		4	4	6	6
spindle speed(stepless)	r/min		50HZ 26-260	50HZ 26-190	50HZ 25-260	50HZ 10-100
wheelhead
Max.dimension of wheel(O.D*W*ID)	mm		400*50*203	600*75*305	500*75*305	750*75*305
wheel peripheral velocity	m/s		35	35	35	35
Min. set Unit	mm		0.0001	0.0001	0.0001	0.0001
worktable
Max.swiveling angle of worktable clockwise	degree		5/3	3	5/3	2/1/1/1
Max.swiveling angle of worktable anticlockwise	degree		9	7/6	9	4/3/2/1.5
tailstock
center taper	MT		4	4	6	6
Quill travel	mm		30	30	70	70
electrical system
CNC system			HNC808DG/Siemens 808D/Fanuc 0I
wheel head motor power	KW		4	11	7.5	15
workhead motor power	KW		1.1	1.5	4	15
machining accuracy
roundness	μm		3	3	3/5/5/5	3/5/5/5
cylindricity	μm		5	8	8/10/10/15	8/10/10/15
roughness	μm		Ra0.2	Ra0.2	Ra0.32	Ra0.32
machine weight	t		3.2/3.6	4.6/5.1	4.3/4.6	10/11/13/17
package size	cm		285*190*220(500)	426*225*220(1000)	340*225*220(500)	543*228*210(1500)
			340*190*220750)	545*225*2220(1500)	390*225*220(750)	583*228*210(2000) 796*225*210(3000) 996*225*210(4000)

4.Standard accessoires
5.Optional accessories
6.Workshop--show that we are large proffesional manufacurer
7. Company honors
9. International exhibitions
10.After-sale services--Let you have no worries
1. The warranty is one year after machine out of our company.During the warranty period of the machine tool due to design, manufacturing, quality of parts and other reasons caused by the fault, free treatment or replacement of new parts.
2. After the warranty period, lifelong paid maintenance and service will be provided.Technical support forever.
3. Provide spare parts and spare parts at preferential prices forever.

---
