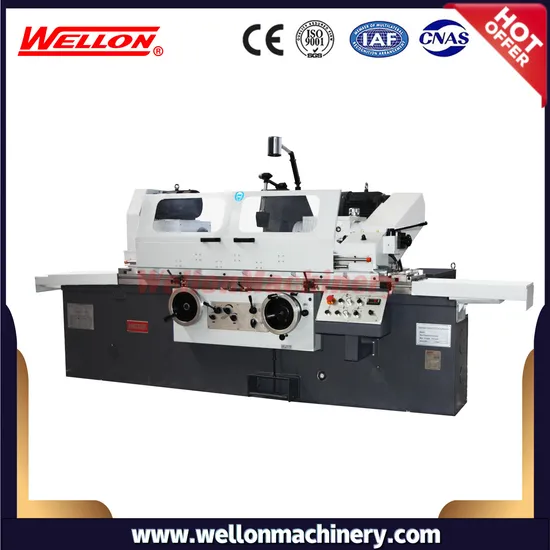

Cylindrical Grinding Machine M1332Bx1000 / M1332Bx1500 / M1332Bx2000 Cylindrical Grinder

Product Description

Product Description

Detailed Photos
Product Parameters

Performence Features: Suitable for grinding IT6-IT5 accuracy cylindrical conical parts
Can choose hydraulic stepless or hand wheel transmission to achieve worktable longitudinal movement
Adopt orifice compensated unloading form on worktable lubrication
With hydraulic fast feed,manual micro feed and wheel automatic cycle feed function on worktable cross travel
Workpiece,External Grinding wheel,Oil pump,and Coolant pump are driven by independent motors
Adopt 2 sets of 4 bearing bushes compose the wheel spindle bearing.Increase the grinding carriage spindle diameter and motor power.Improve the grinding efficiency
Wheel dresser mounted on the tailstock,and tailstock equipped with hydraulic center back device
Adopt interlocking mechanism among electric,hydraulic and mechanical part,ensure safe operation.
Technical parameter:

Model	Unit	M1332Bx1000	M1332Bx1500	M1332Bx2000
O.D Dia Scope	mm	8-320	8-320	8-320
Distance Between Top Center	mm	1000	1500	2000
Center Height	mm	180	180	180
O.D Max Length Grind	mm	1000	1500	2000
Max.weight of workpiece	KG	150	150	150
Work head Center Taper(MT)	MT	MT5	MT5	MT5
Work head Spindle Speed	r/min	29-260	29-260	29-260
Wheel Spindle Speed	r/mm	1100	1100	1100
Wheel Size(O.DxWxI.D)	mm	600x75x305	600x75x305	600x75x305
Peripheral Velocity	m/s	35	35	35
Hand Wheel Feed Per Revolution	mm	6	6	6
Max Swiveling Angle of Table		-3~+7°	-3~+6°	-3~+5°
Longitudinal Speed of Table	m/min	0.1~4	0.1~4	0.1~4
Tailstock Center Taper	MT	MT4	MT4	MT4
Quill Travel	mm	30	30	30
Wheel head Motor Power	KW	11	11	11
Work head Motor Power	KW	0.75/1.5	0.75/1.5	0.75/1.5
Machine Weight	KG	4000	4600	6600
Machine Size	cm	360x180x150	460x180x150	560x180x150
Working Accuracy
Roundness	μm	1.5	1.5	1.5
Uniformly of Inner Dia Longitudinal Section	μm	8	8	8
Surface Roughness	μm	Ra 0.6	Ra 0.6	Ra 0.6
Surface Waviness	μm	1	1	1

Standard accessories:
3 jaw chuck
Balance arbor
Measuring bridge plate
Wheel flange
Open type steady rest
Alloy centers
Extent arbor
Dog pole
Dog arm
Table swivel wrench
Coolant tank
Standard wheels
Wheel extractor
Work lamp
Seal rings
High speed strap
Multiple V belt
Optional accessories:
Wheel balancing stand
Magnetic separator
Close type steady rest
End wheel dresser
Radial wheel dresser
Company information
Packaging & Shipping
FAQ

1: What's your main products of your company?
A : We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center,
Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
2:What kind of controlsdo you use on machines?
A :Siemens,GSK ,Fanuc etc. You can choose according to your requirements .
3. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
4 : How can I choose the most suitable machines ?
A : Please tell me the model or parameter you are interested in, we can provide you with the best price and quality.
You can also send us product pictures and we will choose the most suitable machine for you.
5 : Do we receive any updates while machine is in the manufacturing process?
A : Of course. The progress of the machine will be updated regularly and sent to you.

---
