Basic Info.
Automatic Grade
Automatic
Application
Bread/Buns/Baguette/Loaf/Ciabatta/ Boule
Machine Name
Bread Making Machine Production Line
Function
Making & Forming
Cutting Capacity
1000~12,000/H
Twisting Capacity
1000~7200/H
Advantage
Efficient, Hygienic and Cost Saving
Transport Package
Wooden Box for Exportation Standard
Specification
6520x1900x1640mm
Production Capacity
1000~12, 000/H
Packaging & Delivery
Package Size
650.00cm * 190.00cm * 1740.00cm
Package Gross Weight
1250.000kg
Product Description

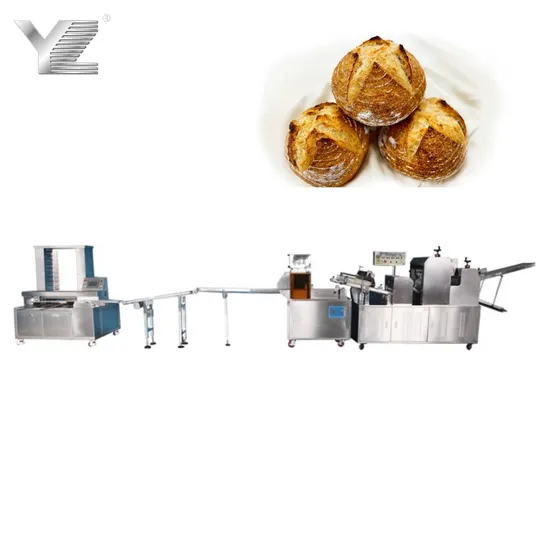

√ Machine Description Bread Making Machine Production Line
Model No.:YZ-8B
Bread Making Machine Production Line started with dough sheeting machine and dough dividing machine. Kneaded dough will be flattened and processed into dough sheet for Bread Making Machine Production Line.It will flatten the dough sheet into appropriate thickness, and then wrapped up the filling extruded on the wrapper by main roller. The forming method can preserve the elasticity and texture. Then, the filled roll will be cut into loaves or long rolls by vertical cutter for bread roll,buns,dough rope and more. Finally, The automatic aligning machine will arrange the products on the tray.
√ Technical Specification
YZ-8B Bread Making Machine Production Line
|
Material
| 304 Stainless Steel
|
Power Supply
| 380V 3P 50Hz 5.4Kw
|
Product Weight
| 15-150g
|
Capacity
| 1000~7200/h
|
Dimension
| 6520x1900x1640mm
|
Machine Weight
| 1250kg
|
√ Details Images
√ Key Features
* The adjustable pulley platform(Conveyor) can freely adjust the dough feeding heightposition, and all pulleys are made of UPE food grade material. * The optical detector provides an automatic stop/start function to avoid collisions between doughs. * The filling depositorcan hold 16 liters of stuffing, suitable for meat stuffing, red bean paste, jam..etc. * Configure suitable discharge nozzles for different fillings and weights to meet the needs of the product. * The cam drive structure has more significant advantages, and the stable transmission operation prolongs the service life.
>>
