SOD2308 360 Degree Multi-angle Cylindrical Fasteners/Bottle/Cylinder Object Outer View 0.8-30mm Diameter Inspection 360 degree Out Surface Wall Imaging Lenses Low Distortion Industrial Pharmacy Factory Automation Machine Vision Lens

Product Details

Product Description

Product Description
Whatsapp: 008618949838193
Wechat/Skype: soyocctv
Email: sales@soyocctv.com

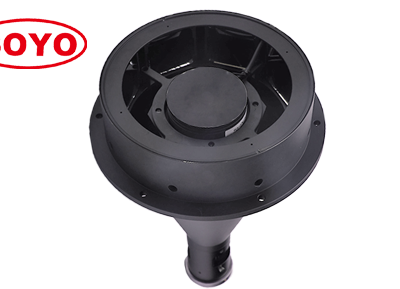

SOD2308 Multi-angle Reflection 8 Mirrors 360° Degree Outer View Outwall Surface Imaging Sensor >2/3" Megapixel Lenses Camera Lens Factory Automation Machine Vision Optics For Tiny Small Cylinder, Bottle Cap，Fasteners etc
Download PDF: SOD2308
* Outer view Inner View Multi-angle imaging
* High resolution megapixel
* Object height 4.6-17mm Outer View
* Out Diameter 0.8mm ~ 30mm object
* Application : Cylindrical object Battery, Fasteners, Bolt etc. on pharmacy, bottle, tube

Model	SOD2308
Sensor	2/3"
Image circle	Φ6.6mm
FOV	Min. 0.8*17mm; Typical 6*16mm; Max 30*7.6mm
Aperture	F1.6~16
Diameter(mm)	WD	Height(mm)	WD	Height(mm)
0.8	2mm	17mm	5mm	14
6	2mm	16mm	5mm	13
12	2mm	13.9mm	5mm	10.9
20	2mm	11mm	5mm	8
30	2mm	7.6mm	5mm	4.6

---
