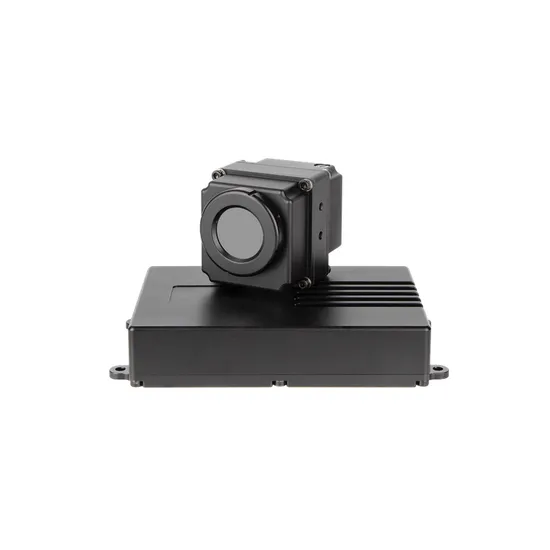

640x512 19mm Intelligent In-car thermal imaging camera system
In-car thermal imaging system is an intelligent assistance system for night-time driving, identifying vehicles and pedestrians in front of you and providing alerts, regardless of the time of day or night, to improve overall driving safety.
| Item | CQ-VI61C19 |
| Detector | Type | Uncooled FPA |
| Resolution | 640x512 |
| Spectral range | 17um |
| NETD | ≤ 40mK |
| Focal length | 19mm |
| FOV | 32°×24.2° ±5% |
| Image performance | Palette | White heat, black heat (green red, red heat) etc. |
| Image adjustment | Automatic brightness and contrast adjustment |
| Image enhancement | Automatic |
| Image output | GMSL and PAL |
| Image magnification | 2x Electronic magnification |
| Frame rate | 30Hz |
| Power | External power | DC 12V |
| Consumption | ≤5W (≤9W Heating defrost) |
| Reverse polarity protection | With power reverse and over-voltage protection |
| Environment | Working temp | -40ºC-+85ºC |
| Storage temp | -40ºC- +90ºC |
| Protection Class | IP69K (Thermal Module) / IP52 (Control module) |
| Physical parameters | Weight | Thermal Module ≤ 230g / Control module ≤ 370g |
| Size | Thermal Module ≤ 68×51×58mm / Control module(ECU) ≤ 150×103×28mm |
| Smart Assist | Heating function | ≤ 2ºC±1ºC Turn on the heating function / ≥ 7ºC±1ºC Turn off the heating function |
| Self-detection function | With power-on self-test and fault detection function, and send fault information to the instrument to light up the indicator |
| Early warning function | With driving detection warning |
| Others | Power-on response | ≤ 10s |
| Exterior colours | Black and Aluminium primary colours |
| Lens protection | High-strength glass |
