US$1,000.00-20,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Milling Cutter Type
Angle Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
Program Control
Automatic Grade
Semiautomatic
Certification
CE, ISO 9001
Universal Rotary Head Milling Machine
Worktable Size: 350X1600mm
Spindle speed range
35-700r/min
Table feed range(vertical)
5-250mm/min
Transport Package
Veneer Box or Wooden Case
Specification
CE Standard
Production Capacity
100unit/Month
Product Description

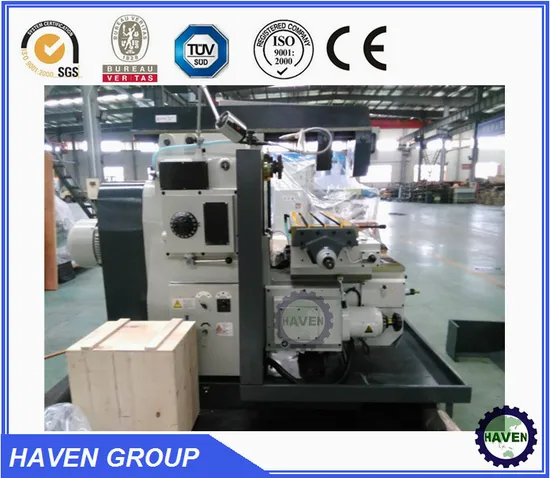

Universal Knee-Type Heavy Duty Milling Machine
Main features:
The Universal Rotary-head Knee-type milling machine X6135 is widely used in the machining workshop, with optional accessories as vertical milling head, dividing head, rotary table, machine vice, milling chuck, etc.
Standard Accessories
Milling-cutter Mandrel
Milling-Milling machine with the middle set of taper
Milling machine mandrel(3sets)32#, 27#, 22#
Milling cutter Mandrel wrench,
Milling drawbars(2), Oil gun, wrench
Nut, Foundation screw
Optional
Vertical milling head
Dividing head
Milling chuck
Machine vice
Rotary table
Digital readout(2 dimensional or 3 dimensional)
| Item | Parameter |
| worktable area(width*length): | 350*1600mm or 350*2000mm |
| Max. longitudinal travel(manual)/(power) | 1000/900mm or 1400/1300mm |
| Max. transversal travel(manual)/(power) | 300/280mm |
| Max. vertical travel(manual)/(power) | 430/400mm |
| T-slots(number of slot-width*pitch) | 5-18*65mm |
| Distance from center line of horizontal spindle to table surface | 30-430mm |
| Distance from table center to vertical guide way of bed | 250-530mm |
| Distance from horizontal spindle center line to the bottom of ram | 155mm |
| Horizontal Spindle taper | 7: 24/ISO50 |
| Max. swivel angle of table | ± 45° |
| Spindle speed range | 35-700r/min |
| Table feed range (longitudinal/cross) | 15-750mm/min |
| Table feed range(vertical) | 5-250mm/min |
| Fast moving of table(longitudinal cross/vertical) | 1920/640mm/min |
| Main Power | 7.5KW |
| Feed motor | 1.9/1.3kw |
| Motor of coolant | 0.125kw |
| Packing Size(L× W× H) | 2190× 2230× 2140mm |
| Net weight | 2800/3000kg |
WHY CHOOSE HAVEN BRAND MACHINE:
1) Hihg quality with competitive price
2) 15 years export experience
3) CE,SGS, ISO Certificated
4) OEM SERVICE AVAILABLE
5) 24 HOURS' ONLINE SERVICE (MSN,SKYPE)
6) 14 months quality warranty (after B/L date)
7) Over sea engineers available for problem shooting
Our Target: BRAND HAVEN
High quality;
Assured Delivery;
Vigorous innovation;
Efficient Cooperation;
Noblesse Oblige
>>
